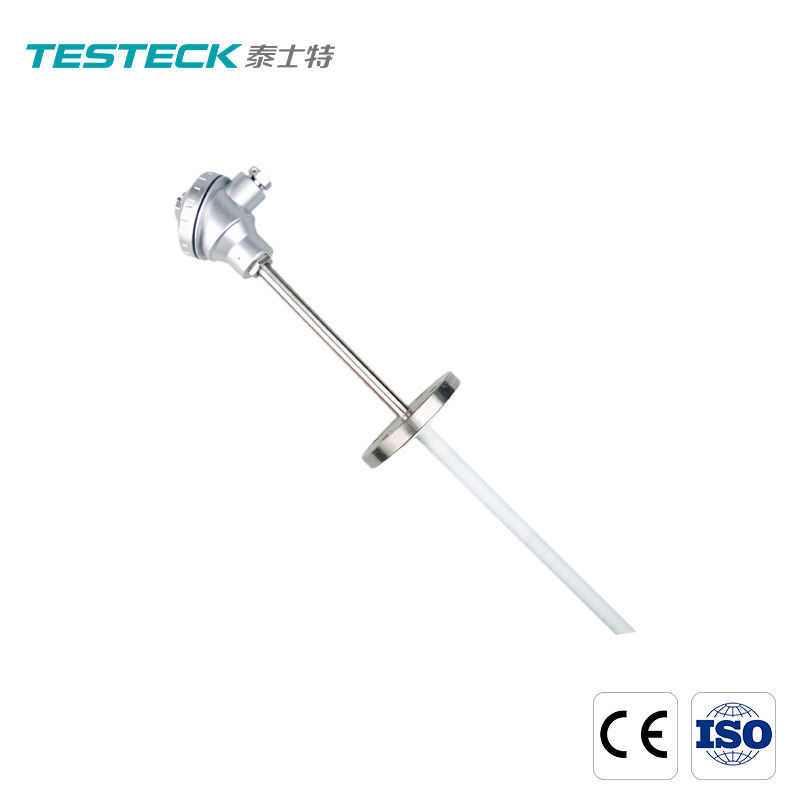

Corrosion Resistant Custom Thermocouple Temp Sensor PT100 transmitter

Corrosion Resistant Custom Thermocouple Temp Sensor PT100 transmitter

  • Corrosion Resistant Custom Thermocouple Temp Sensor PT100 transmitter
Corrosion Resistant Custom Thermocouple Temp Sensor PT100 transmitter
Product Details:
Place of Origin: China
Brand Name: Testeck
Certification: CE,ISO
Model Number: TY-S03
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Agree
Packaging Details: Customized packing
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 5000 pieces each month
Contact Now
Detailed Product Description
Product Name: Assembled Hot Spot Couple / Resistor Type: PT100 K / E / Cu50, Etc
Measuring Range: 0-1300 ℃ (long Term Use 0-1100 ℃ Pipe Material: Tetrafluoro, 304, 316, Etc
Diameter Of Protective Tube: Others Can Be Customized As 8, 10, 12, 20, 25, Etc. Installation Method: Flange, Thread, Etc. Can Be Selected (contact
High Light:

Custom Thermocouple Temp Sensor

,

Corrosion Resistant Thermocouple Temp Sensor

,

SS316 Thermocouple Temp Sensor

Corrosion Resistant Custom Thermocouple Temp Sensor PT100 transmitter



Corrosion Resistant Thermocouple Industrial Design Accurate Measurement



Corrosion resistant thermocouple is specially manufactured for the temperature measurement of various corrosive media. Different corrosion-resistant materials can be selected according to the corrosion resistance characteristics of the medium, since some are special anti-corrosion products specially developed for the special physical and chemical properties of a certain medium. In addition the fixed installation device and the junction box can also have anti-corrosion properties according to user needs, so as to meet the requirements of full anti-corrosion. For more non-standard customized products, please consult Shenzhen Testeck Science and Technology Co., Ltd.



1. Product Standard

1 Electrical outlet: M20*1.5, NPT1/2

2 Thermal response time: ≤8S

3 Protection level: IP65 grinding head

4 Explosion-proof grade: dⅡBT4, dⅡCT5



2. Model and specification

Materials Operating temperature ℃ Features and applications
1Cr18Ni9Ti -200~800 It has high temperature corrosion resistance and is usually used as general heat-resistant steel.
304 -200~800 Low carbon content, good intergranular corrosion resistance, usually used as general heat-resistant steel.
316 -200~750 Low carbon content, good intergranular corrosion resistance, used as corrosion resistant steel.
316L -200~750 Ultra-low carbon content, good crystal resistance and corrosion resistance, used as corrosion-resistant steel.





3. Materials and selection of protective tube

Notes for ordering:

1. Indicate the thermocouple model, type, and operating temperature range.

2. Diameter, length, material, etc. of protective tube of thermocouple

3. Relevant sizes are required if there are fasteners and flange devices.



4. Application details of product

Corrosion-resistant thermocouple is the most ideal temperature sensor used in high temperature and wear-resistant environment in metallurgy, chemical industry, cement plant, power plant, and fluidized bed boiler industry. The wear-resistant protective tube is equipped with armored cores that are highly resistant to abrasion, corrosion, oxidation, and erosion. In further the protective tube can also play a good role in protecting the inner armored core under high temperature conditions.
