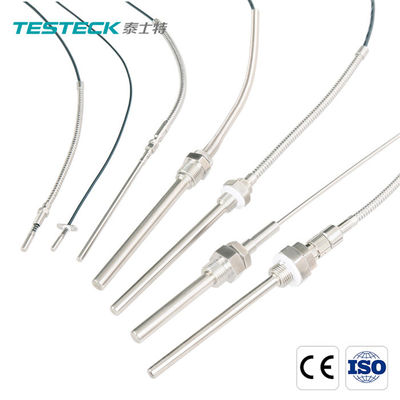

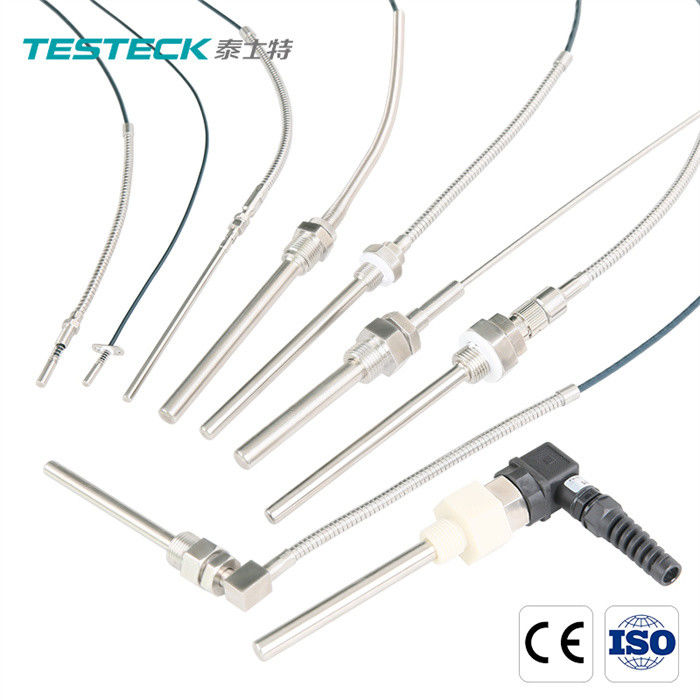

DS18B20 RTD Temperature Sensor Stainless Steel Probe For Industry

DS18B20 RTD Temperature Sensor Stainless Steel Probe For Industry

  • DS18B20 RTD Temperature Sensor Stainless Steel Probe For Industry
  • DS18B20 RTD Temperature Sensor Stainless Steel Probe For Industry
DS18B20 RTD Temperature Sensor Stainless Steel Probe For Industry
Product Details:
Place of Origin: china
Brand Name: testeck
Model Number: rtd-1
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: usd
Packaging Details: standard
Delivery Time: 10-15
Payment Terms: T/T, Western Union, MoneyGram, L/C
Supply Ability: 100000
Contact Now
Detailed Product Description
Material: Stainless Steel Color: Sliver
Graduation: PT100 Usage: Industrial
Output: Analog Sensor Temperature Range: 10~50
Product Name: Ds18b20 Temperature Sensor
High Light:

DS18B20 RTD Temperature Sensor

,

SUS304 Probe RTD Temperature Sensor

,

DS18B20 Temperature Sensor

DS18B20 RTD Temperature Sensor Stainless Steel Probe For Industry



Testeck Stainless Steel Probe Thermocouple Rtd Temperature Sensor For Industry



The assembled thermistor measures the temperature by using the characteristic that the resistance of the material changes with the change of temperature. When there is a temperature gradient in the measured medium, the measured temperature is the average temperature in the medium where the temperature sensing element is located.

As a temperature measurement sensor, the assembled thermal resistance is usually used together with temperature transmitter, regulator and display instrument to form a process control system, which is used to directly measure or control the temperature of liquid, steam, gas medium and solid surface in various production processes.

1. Assembled thermistor

The assembled thermal resistance for industrial use is mainly composed of temperature sensing element, temperature sensing probe, transition protection and signal cable, and is equipped with various installation and fixing devices.

1)Temperature sensing element: imported thin film platinum resistance PT100 temperature sensing element.

2)Protection tube: according to the type of assembled thermal resistance, the measured medium condition and the measured temperature, the protection tube made of different materials is selected. The protection tube of thermal resistance is generally made of carbon steel, various brands of stainless steel, alloy steel and other materials.

3)Installation and fixing device: the assembled thermal resistance installation and fixing device is used for installation and fixing by users. It is divided into various forms, such as no fixing device, fixed thread, movable flange and fixed flange.

For more non-standard customized products, please consult taishite technology.



2. Product parameters

Specifications Parameters
TY-C Assembled thermistor
Graduation Pt100,Pt1000
Accuracy class Grade A, grade B
Application ambient temperature -50~200℃
Wire system Second line, third line and fourth line
Sensor structure Single / double
Probe No. material SUS304,SUS316,SUS321(Customer designation)
Process connection Fixed thread,Movable thread,Thread of activity card setetc.(Customer designation)



DS18B20 RTD Temperature Sensor Stainless Steel Probe For Industry 0
