KYJYP2 Flame Resistant Cable XLPE Insulated Polyolefin Sheathed

KYJYP2 Flame Resistant Cable XLPE Insulated Polyolefin Sheathed

  • KYJYP2 Flame Resistant Cable XLPE Insulated Polyolefin Sheathed
KYJYP2 Flame Resistant Cable XLPE Insulated Polyolefin Sheathed
Product Details:
Place of Origin: China
Brand Name: Testeck
Certification: Iris,EN,CRCC
Model Number: KYJYP2
Payment & Shipping Terms:
Minimum Order Quantity: 1000
Price: Agree
Packaging Details: Customized packing
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 5000 pieces each month
Contact Now
Detailed Product Description
Rated Voltage: 4 5 0 / 7 5 0 V Temperature: -25℃~90℃
Insulation Layer: PE Sheath Material  : PO
Shielding Layer: Copper Tape / Braided Shield Conductor Material: Bare Copper
High Light:

KYJYP2 Flame Resistant Cable

,

450V Flame Resistant Cable

,

KYJYP2 fire resistant cable

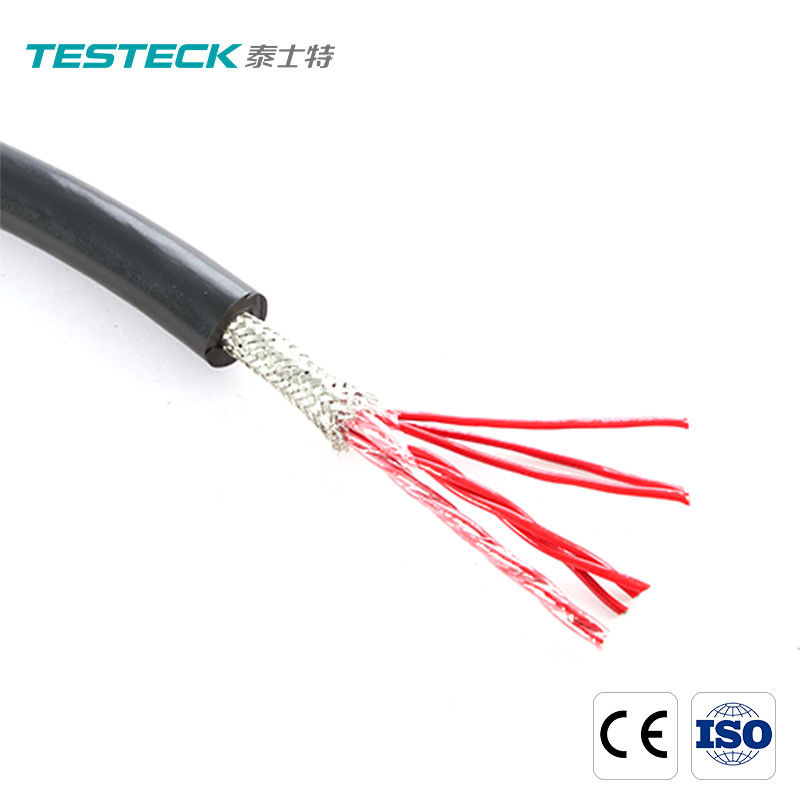

KYJYP2 Flame Resistant Cable XLPE Insulated Polyolefin Sheathed



KYJYP2 XLPE Insulated Polyolefin Sheathed Copper Tape Shielded Control Cable



The connection of signals and control circuits between various electrical equipment with special fire performance requirements meets GB/T19666-2005;

The laying temperature of the cable is not less than 0 C;

The bending radius of the cable is not less than 8 times the outer diameter of the cable (the cable with copper tape shield is not less than 12 times the outer diameter of the cable);

When burning, the gas smoke density is small, non-toxic



KYJYP2 KYJYP3 control cable



Ⅰ. Product Introduction of the KYJYP2 KYJYP3 control cable

Rated voltage 450/750V and below, the connection of signal and control circuits between various electrical equipment with special fire performance requirements



Ⅱ. Product Parameter (Specification) of the KYJYP2 KYJYP3 control cable

Model Number KYJYP2/KYJYP3 Conductor material

copper

Working temperature resistance -25℃~+90℃ Number of cores



Contact customer service

Sheath material PO Insulation layer PE
Rated voltage

 450 / 750V

Insulation resistance constant 3000MΩ·km
Withstand voltage test

0.6 / 1K, 3500v / 5min;

450 / 75 class 2500V / 5min



Shielding layer

Copper tape / braided shield



Ⅲ. Product Feature And Application of the KYJYP2 KYJYP3 control cable

This product is suitable for the connection of signal and control circuits between various electrical equipment with a rated voltage of 450/750V and below and with special fire performance requirements.



Ⅳ. Product Details of the KYJYP2 KYJYP3 control cable

Temperature resistance -25 C~90 C;

Rated voltage: 450/750V;

Withstand voltage test: 3000V/5min;

Fire resistance conforms to GB/T19666-2005;

The laying temperature of the cable is not less than 0 C;



Ⅴ. Deliver,Shipping And Serving of the

packing with carton box , We also can customized for you if your order need.



Ⅵ. FAQ

1, are your manufacturer?

We are manufacturer, our factory localed in Shenzhen China.

2, what product you manufacturer have?

Our factory produce temperature sensor for power station,

Stators and cable for industry.

3, how many production lines do you have?

We have 10 production lines in Shenzhen factory.

4, how do you ensure product quality?

We already built a mechanical,electrical,fire and flame retardant laboratory, professional testing engineers.

5, can you send samples?

Yes, we will supply sample before your make the order.
