PT100 Assembly Thermistor Temperature Sensor Movable Flange Mounted

PT100 Assembly Thermistor Temperature Sensor Movable Flange Mounted

  • PT100 Assembly Thermistor Temperature Sensor Movable Flange Mounted
  • PT100 Assembly Thermistor Temperature Sensor Movable Flange Mounted
  • PT100 Assembly Thermistor Temperature Sensor Movable Flange Mounted
PT100 Assembly Thermistor Temperature Sensor Movable Flange Mounted
Product Details:
Place of Origin: China
Brand Name: Testeck
Certification: CE,ISO
Model Number: TY-G4
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Agree
Packaging Details: Customized packing
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 5000 pieces each month
Contact Now
Detailed Product Description
Type: 1=Pt100 5=Pt500 10=Pt1000 Temperature Range: -200-500℃
Accuracy: ±0.2℃ Material Of Probe: 304
Contact Customer Service: Class A、B Installation Method: Contact Customer Service
High Light:

PT100 Thermistor Temperature Sensor

,

ISO Thermistor Temperature Sensor

,

PT100 Integrated Temperature Sensor

PT100 Assembly Thermistor Temperature Sensor Movable Flange Mounted



Movable Flange Mounted PT100 Assembly Thermistor Temperature Sensor

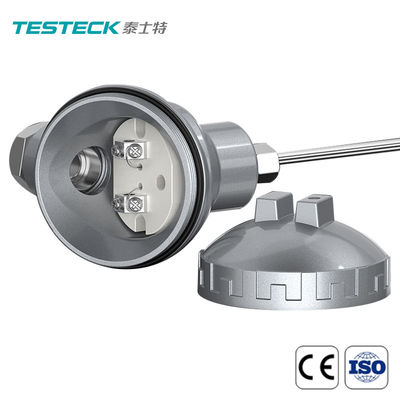

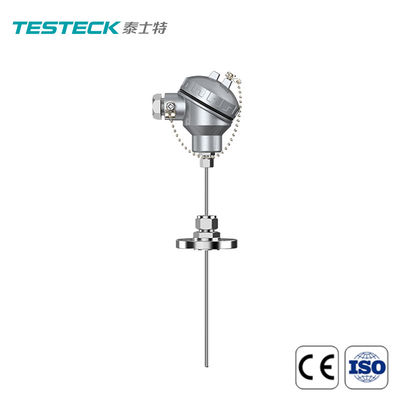

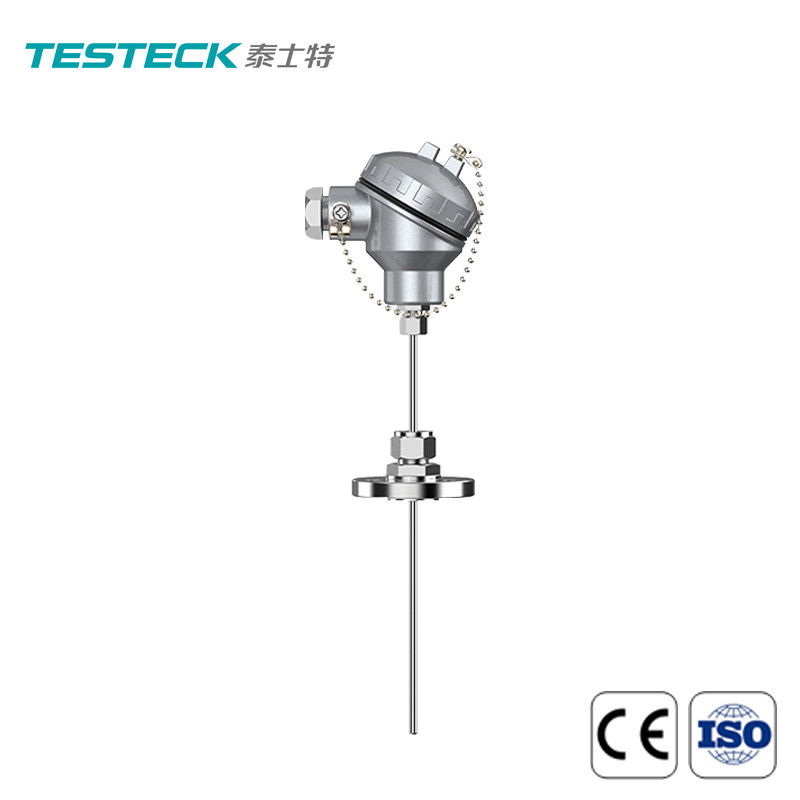

TY-G4 series flexible flange connection type platinum resistance RTD consists of three parts: junction box, flexible flange and protective tube. The product can be widely used to measure air temperature, liquid temperature, oil temperature and surface temperature of objects, etc.



Model Technical parameters Outline structure diagram

  TY-G4

1. Platinum resistance: Pt100, Pt500, Pt1000 Temperature measurement range: (-200~500)℃

2. Common accuracy:

Class A: ±(0.15+0.002|t|)℃

Class B: ±(0.30+0.005|t|)℃

|t|---Absolute value of measured temperature

3. Common flange diameters are 95mm, 105mm, 115mm

4. Normal pressure, for working conditions with pressure, please indicate the pressure

PT100 Assembly Thermistor Temperature Sensor Movable Flange Mounted 0



Model Selection Table

TY-G4

  Model of platinum thermal resistor
  B 1=Pt100 5=Pt500 10=Pt1000 Type of sensor


T

1=-50~80 2=0~100 3=-50~200 4=-50~250 Designate

Temperature range (℃)
  P B= CLASS B A= CLASS A Designate Sensor accuracy


C

100=100 250=250 350=350 600=600

Designate

Total length of protective tube (mm)

D

4=4 8=8 12=12 16=16 Designate

Diameter of protective tube

S

1=SUS321 4=SUS304 6=SUS316 Designate

Material of threaded part


E

2= two-wire 3= three-wire 4= four-wire



Wire system



G

1=Blowout control 2=Waterproof Designate



Type of junction box



Z

0= no, which can be omitted

2= armor type

3= Antiseptic treatment

Designate







Special requirements

Remarks: The parameter requirements specified by the user can be directly marked with numbers or words. Model example: TY-G4-B1- T3- PA- C350/D8/S4- E3- G2

Description: PT100, temperature measurement range -50~200C, accuracy class A, three-wire system, diameter of

protective tube 8mm, length 350mm, waterproof junction box.
