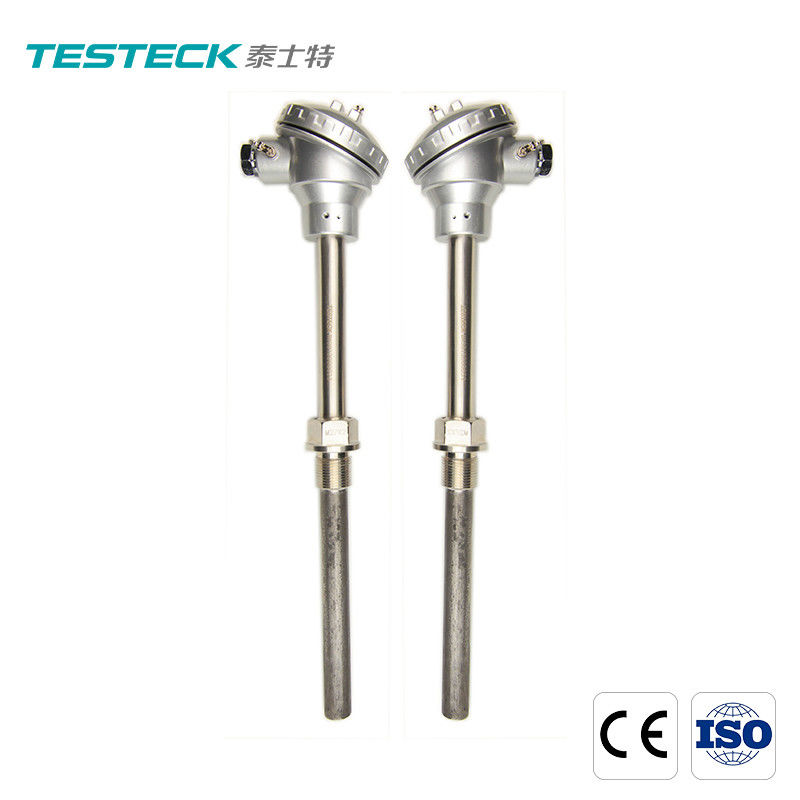

High Temp Rtd Resistance Temperature Detector Pt100 For Boiler

High Temp Rtd Resistance Temperature Detector Pt100 For Boiler

  • High Temp Rtd Resistance Temperature Detector Pt100 For Boiler
High Temp Rtd Resistance Temperature Detector Pt100 For Boiler
Product Details:
Place of Origin: China
Brand Name: Testeck
Certification: CE,ISO
Model Number: TY-S
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Agree
Packaging Details: Customized packing
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 5000 pieces each month
Contact Now
Detailed Product Description
Index No: PT100 K / E / Cu50, Etc Accuracy Class: 2B、B、A、1/3BLevel Optional
Pipe Material: 2520 (310S), 201, 304, 316, Gh3039, Etc Nominal Pressure: ≤9.8MPa
Installation Method: Flange, Thread, Etc. Can Be Selected (contact Customer Service For Details) Measuring Range: Can Be Customized According To Actual Temperature Resistance
High Light:

High Temp Rtd Resistance Temperature Detector

,

Rtd Resistance Temperature Detector Pt100

,

Boiler High Temp Rtd

High Temp Rtd Resistance Temperature Detector Pt100 For Boiler



High Temperature Wear Resistant Temperature Sensor For Boiler



The measurement points of the air temperature system generally include the air temperature of the secondary air box and the temperature of the hot primary air.

Generally, thicker protective tubes and large-diameter connecting threads are used to improve anti-vibration ability, and the measuring end adopts a variable diameter type to shorten the response time.



Boiler flue gas system temperature measurement



1. Product Introduction of the Boiler flue gas system temperature measurement

The measurement points of the smoke temperature system generally include the flue gas temperature of the superheater, the smoke temperature of the reheater, the smoke temperature of the economizer, and the smoke temperature of the air preheater.

Generally, thicker protective tubes and large-diameter connecting threads are used to improve the anti-vibration ability, and because of the erosion of solid particles in the smoke, sprayed wear-resistant casings are used to resist the erosion



2. Product Parameter (Specification) of the Boiler flue gas system temperature measurement

Wind temperature system

High Temp Rtd Resistance Temperature Detector Pt100 For Boiler 0



Index No. Temperature Range Nominal pressure Length/Depth Protected tube material Connect

K

E

Pt100

0-800℃ ≤9.8MPa

480/230

680/430

880/630

1380/1130

304

321

316

2"NPT

R2"

ZG2"

0-600℃
0-400℃



Wind temperature system

High Temp Rtd Resistance Temperature Detector Pt100 For Boiler 1

Index No. Temperature Range Nominal pressure Length/Depth Protected tube material Connect

K

E

Pt100

0-800℃ ≤9.8MPa

480/230

680/430

880/630

1380/1130

321

316

Wear-resistant spray(N)

2"NPT

R2"

ZG2"

0-600℃
0-400℃



3. Product Feature And Application of the Boiler flue gas system temperature measurement

The Wind and smoke temperature sensor is suitable for measuring the boiler body inside temperature.



4. Product Details of the Boiler flue gas system temperature measurement

measurement points of the smoke temperature system generally include the flue gas temperature of the superheater, the smoke temperature of the reheater, the smoke temperature of the economizer, and the smoke temperature of the air preheater.

Generally, thicker protective tubes and large-diameter connecting threads are used to improve the anti-vibration ability, and because of the erosion of solid particles in the smoke, sprayed wear-resistant casings are used to resist the erosion
