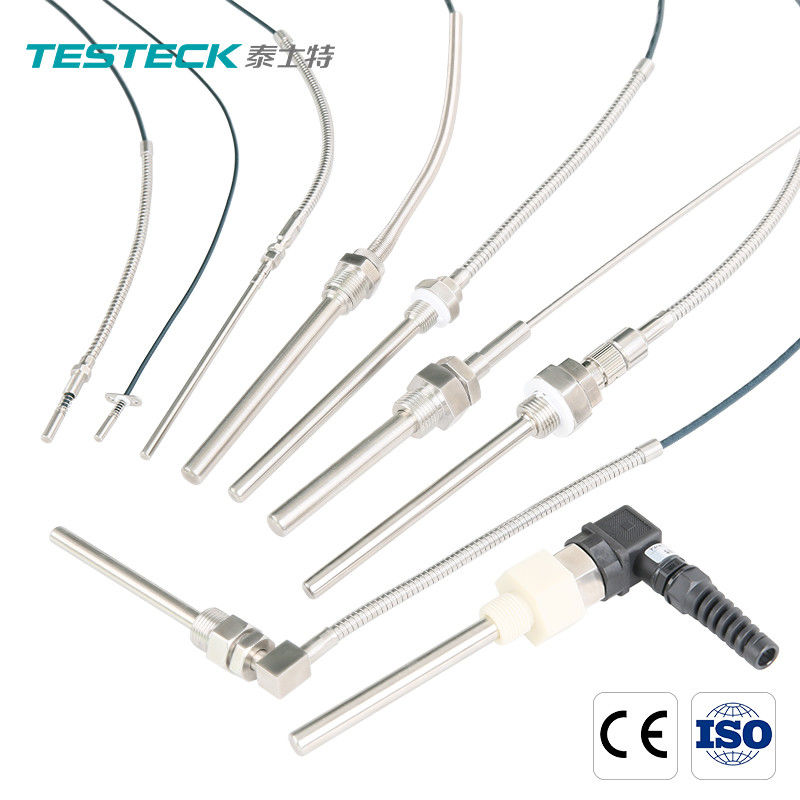

Fixed Thread RTD Temperature Sensor J Type And K Type Thermocouple

Fixed Thread RTD Temperature Sensor J Type And K Type Thermocouple

  • Fixed Thread RTD Temperature Sensor J Type And K Type Thermocouple
Fixed Thread RTD Temperature Sensor J Type And K Type Thermocouple
Product Details:
Place of Origin: China
Brand Name: Testeck
Certification: CE,ISO
Model Number: TY-C series
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Agree
Packaging Details: Customized packing
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 5000 pieces each month
Contact Now
Detailed Product Description
Product Name: PT100 Temperature Sensor Temperature Range: -50 -- 200℃ (can Be Customized According To Actual Temperature Resistance)
Graduation: PT100 (customized) Accuracy Class: 2B、B、A、1/3BLevel Optional
Process Connection: Fixed Thread、Movable Thread、Thread Of Activity Card Setetc.(Customer Designation) Sensor Structure: Single / Double
High Light:

Fixed Thread RTD Temperature Sensor

,

J K RTD Temperature Sensor

,

J Type And K Type Thermocouple

Fixed Thread RTD Temperature Sensor J Type And K Type Thermocouple



Assembly RTD Various Styles Support Customization Stable Performance



The assembled thermistor measures the temperature by using the characteristic that the resistance of the material changes with the change of temperature. When there is a temperature gradient in the measured medium, the measured temperature is the average temperature in the medium where the temperature sensing element is located.

As a temperature measurement sensor, the assembled thermal resistance is usually used together with temperature transmitter, regulator and display instrument to form a process control system, which is used to directly measure or control the temperature of liquid, steam, gas medium and solid surface in various production processes.



1. Assembled thermistor

The assembled thermal resistance for industrial use is mainly composed of temperature sensing element, temperature sensing probe, transition protection and signal cable, and is equipped with various installation and fixing devices.

1)Temperature sensing element: imported thin film platinum resistance PT100 temperature sensing element.

2)Protection tube: according to the type of assembled thermal resistance, the measured medium condition and the measured temperature, the protection tube made of different materials is selected. The protection tube of thermal resistance is generally made of carbon steel, various brands of stainless steel, alloy steel and other materials.

3)Installation and fixing device: the assembled thermal resistance installation and fixing device is used for installation and fixing by users. It is divided into various forms, such as no fixing device, fixed thread, movable flange and fixed flange.

For more non-standard customized products, please consult taishite technology.



2. Product parameters

Specifications Parameters
TY-C Assembled thermistor
Graduation Pt100,Pt1000
Accuracy class

2B,B,A,1/3BLevel optional

Application ambient temperature -50~200℃
Wire system Second line, third line and fourth line
Sensor structure Single / double
Probe No. material SUS304,SUS316,SUS321(Customer designation)
Process connection Fixed thread,Movable thread,Thread of activity card setetc.(Customer designation)



3. Product application

It is widely used in petroleum, chemical, machinery, metallurgy, electric power, textile, food and other industrial sectors and scientific and technological fields.



4. delivery, shipment and service of temperature sensors

The temperature sensor is packed in cartons. If you need, we can also make it for you.



5. FAQ

1, are your manufacturer?

We are manufacturer, our factory localed in Shenzhen China.

2, what product you manufacturer have?

Our factory produce temperature sensor for power station,

Stators and cable for industry.

3, how many production lines do you have?

We have 10 production lines in Shenzhen factory.

4, how do you ensure product quality?

We already built a mechanical,electrical,fire and flame retardant laboratory, professional testing engineers.

5, can you send samples?

Yes, we will supply sample before your make the order.
