Threaded Thermocouple Temperature Sensor 304 Stainless Steel Material

Threaded Thermocouple Temperature Sensor 304 Stainless Steel Material

  • Threaded Thermocouple Temperature Sensor 304 Stainless Steel Material
Threaded Thermocouple Temperature Sensor 304 Stainless Steel Material
Product Details:
Place of Origin: China
Brand Name: Testeck
Certification: CE,ISO
Model Number: TY-S01
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Agree
Packaging Details: Customized packing
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 5000 pieces each month
Contact Now
Detailed Product Description
Ambient Temperature In Application: Refer To Temperature Measurement Range And Tolerance Type: K / E / Cu50, Etc
Probe Material: 304 Material (corrosion Resistant 316 Material, High Temperature Resistant 2520 Material, Ultra High Temperature Gh3039 Material) Contact Customer Service For Details Installation Method: Flange, Thread, Etc. Can Be Selected (contact Customer Service For Details)
Filament Diameter: Which Can Be 1.8, 2.0, 3.0, 3.2, 3.5mm, Etc Protection Grade: IP67
High Light:

Threaded Thermocouple Temperature Sensor

,

IP65 Thermocouple Temperature Sensor

,

SS304 industrial thermocouples

Threaded Thermocouple Temperature Sensor 304 Stainless Steel Material



Screw In Thermocouple 304 Material Industrial Design Accurate Measurement



TY-S01 series thermocouple is used as a temperature sensor, usually in combination with display instruments, recording instruments and electronic regulators. It can directly measure the surface temperature of 0-1,800°C of liquid, steam, gas and solid surface in production processes.



Working principle



TY-S series thermocouple is composed of two different conductor materials. The temperature difference between the measuring terminal and the reference terminal will result in thermoelectric potential, and the working instrument will display the corresponding temperature value.



1. TY-S series thermocouple Structure principle

The industrial thermocouple is mainly composed of junction box, protective tube, terminal block, insulating ceramic column and temperature sensing element, and equipped with various installation and fixing devices.

1 Type of thermocouple: platinum rhodium 30-platinum rhodium 6, platinum rhodium 10-platinum, nickel chromium-nickel silicon, nickel chromium-copper nickel.

2 Protective tube: According to the type of thermocouple, the condition of the measured medium and the temperature to be measured, the tubes made of different materials are selected. The tubes of thermocouple are generally made of carbon steel, various grades of stainless steel, alloy steel and other materials.

3 Junction box: The junction box of thermocouple is used to connect the display instrument of temperature sensing element, generally made of aluminum alloy and stainless steel. It is divided into explosion-proof, waterproof and small splash-proof structures.

4 Wiring board: The wiring board of thermocouple is generally made of ceramics and installed in the junction box. It is the signal output terminal of the thermocouple, and divided into two types: single-branch type and double-branch type.

5 Installation and fixing device: The installation and fixing device is for users to install and fix thermocouple. It is divided into various forms, such as no fixing device, fixed thread, movable flange and fixed flange.

6 Nominal pressure

Generally it refers to the static external pressure that the tube can withstand without breaking under the working temperature. In fact, it is not only related to the tube material, diameter, and wall thickness, but also related to the structure, installation method, insertion depth, and the flow rate and type of the medium to be measured.

For more non-standard customized products, please consult Shenzhen Testeck Science and Technology Co., Ltd.



2. Product parameters

For the thermocouple, the ambient temperature is 20±15℃, the relative humidity is not more than 80%, and the test voltage is 500±50V (DC). The insulation resistance between the electrode and the outer tube is ≥1,000MΩ.m, that is, the insulation resistance of the 1m and 10m long sample are 1,000MΩ and 100MΩ respectively.

Specifications Parameters
TY-S series Thermocouple - junction box
Type K, E, T, S and J
Accuracy class Class 1, 2
Ambient temperature in application Refer to temperature measurement range and tolerance
Structure of sensor SingleDouble
Protective tube material SUS304, SUS316, SUS321 (customer specified)
Process connection No fixing device, fixed thread, movable flange and fixed flange
Protection grade IP57-IP67



3. Application of company products

It is widely used in industrial sectors and scientific and technological fields, including petroleum, chemical, machinery, metallurgy, electric power, textile, food and others.



4. Product Structure

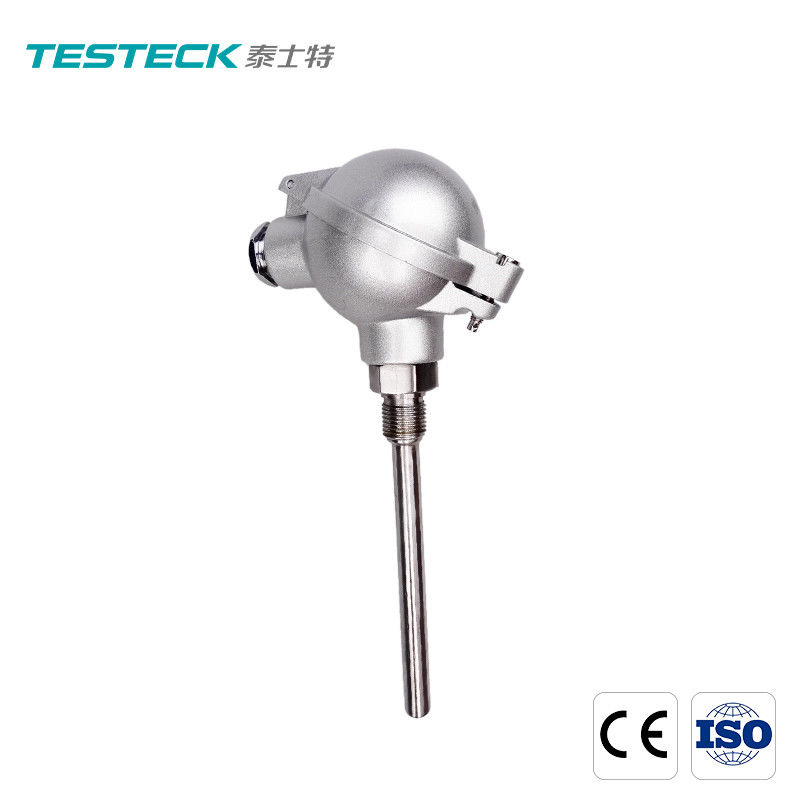

Threaded Thermocouple Temperature Sensor 304 Stainless Steel Material 0
