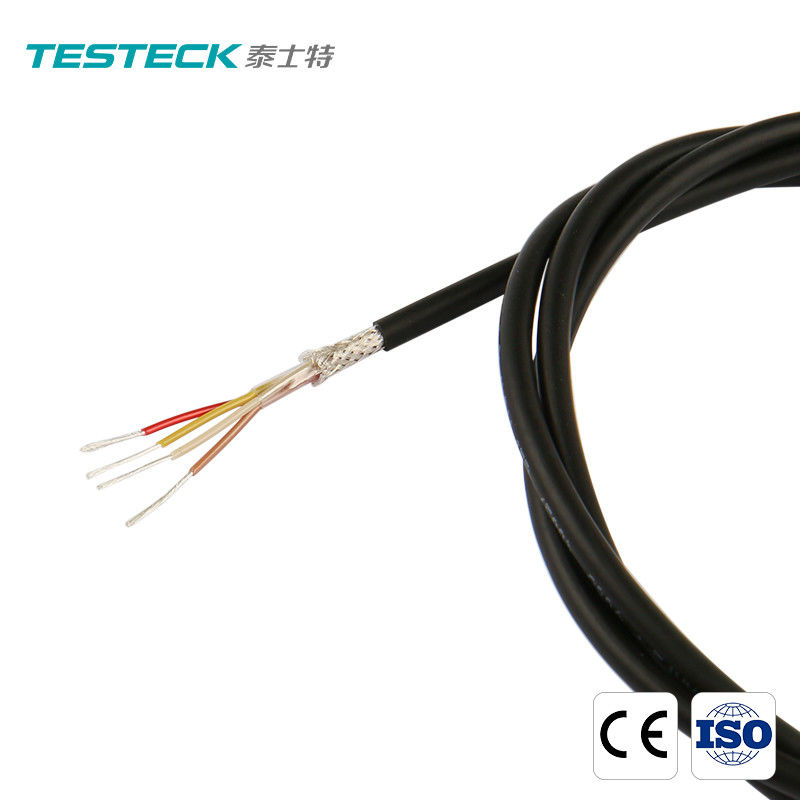

Copper Core High Temp Cable Wrapped Insulated Silver Plated Shielded Cable

Copper Core High Temp Cable Wrapped Insulated Silver Plated Shielded Cable

  • Copper Core High Temp Cable Wrapped Insulated Silver Plated Shielded Cable
Copper Core High Temp Cable Wrapped Insulated Silver Plated Shielded Cable
Product Details:
Place of Origin: China
Brand Name: Testeck
Certification: Iris,CRCC,EN
Model Number: AFRP-200
Payment & Shipping Terms:
Minimum Order Quantity: 1000
Price: Agree
Packaging Details: Customized packing
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 5000 pieces each month
Contact Now
Detailed Product Description
Rated Voltage: 250V、600V Temperature Range: -60℃-200℃
Conductor Material: Bare Copper Insulation: AFRP Film Wrapping
Shield: Silver Plated Copper Braid Sheath: AFRP Film Wrapping
High Light:

Copper Core High Temp Cable

,

AFRP High Temp Cable

,

Copper Core AFR cable

Copper Core High Temp Cable Wrapped Insulated Silver Plated Shielded Cable



Copper Core Polytetrafluoroethylene Wrapped Insulated Silver Plated Shielded Cable



we supply AFRP cable high quality with UL TUV SGS certificated. we devoted ourselves to cable and wire manufacture many years,covering most of Europe and the Americas market. We are expecting become your long term partner in china.



AFRP cable



1. Product Introduction of the AFRP cable



AFRP insulated is excellent high temperature resistant wire. Flame retardant, radiation resistance and good mechanical properties electrical wires. AFRP insulation material has low smoke, halogen-free, flame retardant properties. Peek high temperature resistance cable used in the aviation industry, petrochemical industry, power stations and rail transit industry



2. Product Parameter (Specification) of the AFRP cable



Section Area mm2 Conductor construction NO.×mm Insulation Thickness mm Outer Diameter mm
0.014 7×0.05 0.15 0.45
0.035 7×0.08 0.15 0.54
0.05 1×0.26 0.17 0.6
0.07 1×0.30 0.2 0.7
0.08 7×0.12 0.2 0.76
0.12 7×0.15 0.2 0.85
0.2 7×0.20 0.25 1.1
0.35 19×0.16 0.25 1.3
0.5 19×0.18 0.25 1.4
0.75 19×0.23 0.275 1.7
1 19×0.26 0.25 1..8
1.2 19×0.28 0.3 2
1.5 19×0.32 0.3 2.2
2 19×0.37 0.3 2.45
2..5 19×0.41 0.4 6.86
4 37×0.37 0.4 3.38



3. Product Feature And Application of the AFRP cable



AFRP cable has excellent resistance to high temperature, low temperature resistance, excellent electrical insulation performance,
high voltage resistance, aging resistance, long service life and soft and easy to install.





4. Product Details of the AFRP cable



Copper Core High Temp Cable Wrapped Insulated Silver Plated Shielded Cable 0



AFRP

Widely used in lighting, household appliances, , lamps.electric appliances, instrumentation, motor wiring and electronics and other electrical wires. gas appliances and other high-temperature environment.



6. FAQ



1, are your manufacturer?

We are manufacturer, our factory localed in Shenzhen China.

2, what product you manufacturer have?

Our factory produce temperature sensor for power station,

Stators and cable for industry.

3, how many production lines do you have?

We have 10 production lines in Shenzhen factory.

4, how do you ensure product quality?

We already built a mechanical,electrical,fire and flame retardant laboratory, professional testing engineers.

5, can you send samples?

Yes, we will supply sample before your make the order.
