| Place of Origin: | China |
| Brand Name: | Testeck |
| Certification: | CE，ISO |
| Model Number: | TY-S01 |
| Minimum Order Quantity: | 10 |
|---|---|
| Price: | Agree |
| Packaging Details: | Customized packing |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 5000 pieces each month |
| Temperature Measuring Range: | -100～450℃ | Wire System: | Three Wire System |
|---|---|---|---|
| Casing Pipe: | Non Magnetic Stainless Steel | External Protection Tube: | Can Be Customized According To The Needs |
| Response Time: | τ0.5＜15s | Pipe Material: | 2520 (310S), 201, 304, SS316, Gh3039, Etc |
| High Light: | SS316 Bearing Temp Sensor,Pt100 Bearing Temp Sensor,SS316 Rtd 2 Wire 3 Wire |
||

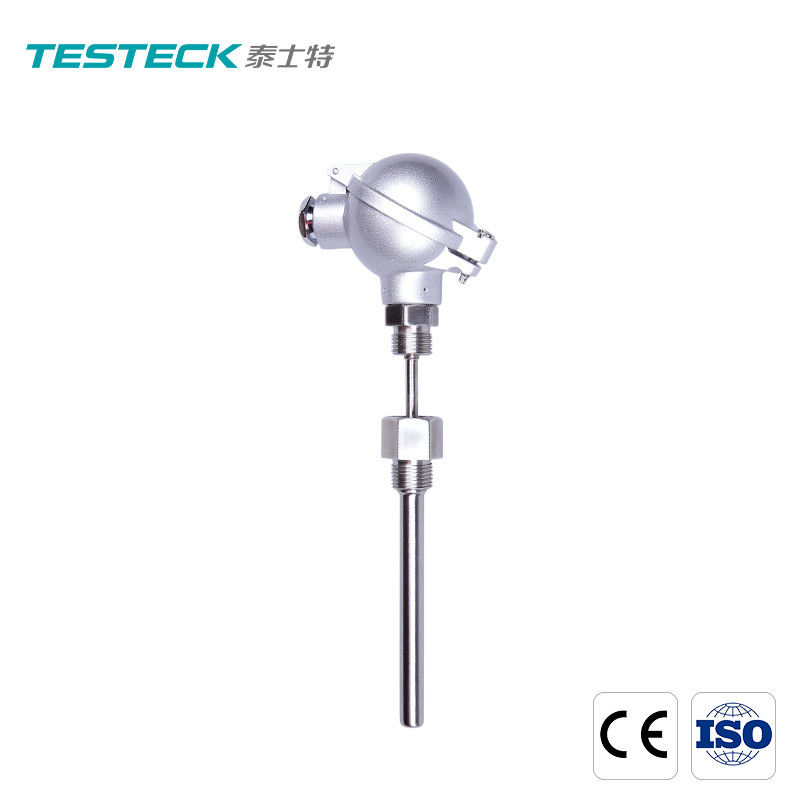

SS316 Bearing Temp Sensor Pt100 Rtd 2 Wire 3 Wire With Junction Box
3 Wires Pt100 RTD With Junction Box
Testeck junction box structure temperature sensor F12Pt100-200-3220/F04 can be disassembled without shutdown, and the sensor can be disassembled quickly. The junction box structure temperature sensor is used in the measuring points of air temperature, water pipeline and oil pipeline.
F series temperature sensor - split junction box
1. Product Introduction of the F series temperature sensor - split junction box
The chip-type temperature sensing element adopts laser welding technology to prevent the solder joints from loosening or falling off in case of strong vibration, which effectively improves the stability of measurement.Provide a variety of junction boxes. All kinds of junction boxes can prevent water drops and dust from entering.
Non-magnetic stainless steel external protective tube can be produced.When the use environment is allowable, the sensor can be installed and uninstalled without shutdown or removing the wire of junction box, and the wiring is flexible, reliable and convenient.
2. Product Parameter (Specification) of the F series temperature sensor - split junction box
| Specifications | Parameters |
| Testeck junction box structure thermal resistor F12Pt100-200-3220/F04 | |
| Temperature measuring range | -50～260℃ |
| Wire system | Three wire system |
| Process connection | Fixed thread NPT1 / 4 or other dimensions |
| Casing pipe | Non magnetic stainless steel |
| Outer diameter of casing pipe | Φ8,Φ10,Φ12 |
| External protection tube | Can be customized according to the needs |
| Insulation resistance at room temperature | >100MΩ |
| Response time | τ0.5＜15s |
| Equipped parts | Cable jacket |
| Model | Name | Material | Conductor interface | Protection grade | Ambient temperature |
| Testeck junction box structure temperature sensor F12Pt100-200-3220/F04 | |||||
| 07 | Large waterproof junction box | Cast aluminum shell | M20×1.5 | IP67 | -50℃～120℃ |
| 05 | Flat-end junction box | Cast aluminum shell | M20×1.5 | IP54 | -50℃～120℃" |
| 04 | Spherical junction box | Cast aluminum shell | M20×1.5 | IP65 | -50℃～120℃ |
| 06 | Small waterproof junction box | Cast aluminum shell | M16×1.5 | IP67 | -50℃～120℃ |
| 08 | Square Connector | Thermoplastic polyester | M20×1.5 | IP67 | -50℃～260℃ |
| 09 | Small junction box | Cast aluminum shell | M14×1.5 | IP67 | -50℃～120℃ |
| 10 | Elbow quick connector | Zinc casting, nickel plating | M12×1.5 | IP67 | -50℃～200℃ |
| 11 | Straight quick connector | Zinc casting, nickel plating | M12×1.5 | IP67 | -50℃～200℃ |
3. Product Feature And Application of the F series temperature sensor - split junction box
It is applied in monitoring air temperature, cooling water pipeline and oil pipe temperature of air cooler of water turbine.
4. Product Details of the F series temperature sensor - split junction box
The cable insulation layer is made of high-temperature and tension resistant materials.
In particular, magnetization resistance, temperature resistance and insulation
5. delivery, shipment and service of temperature sensors
The temperature sensor is packed in cartons. If you need, we can also make it for you.
6. FAQ
1, are your manufacturer?
We are manufacturer, our factory localed in Shenzhen China.
2, what product you manufacturer have?
Our factory produce temperature sensor for power station,
Stators and cable for industry.
3, how many production lines do you have?
We have 10 production lines in Shenzhen factory.
4, how do you ensure product quality?
We already built a mechanical,electrical,fire and flame retardant laboratory, professional testing engineers.
5, can you send samples?
Yes, we will supply sample before your make the order.
