| Place of Origin: | China |
| Brand Name: | Testeck |
| Certification: | CE，ISO |
| Model Number: | TY-C07 |
| Minimum Order Quantity: | 10 |
|---|---|
| Price: | Agree |
| Packaging Details: | Customized packing |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 5000 pieces each month |
| Product Name: | PT100 | Temperature Range: | Can Be Customized According To Actual Temperature Resistance |
|---|---|---|---|
| Product Model: | PT100 (customized) | Lead Material: | Three Core Silver Plated PTFE Shielded Wire |
| Probe Material: | 304 Stainless Steel | Probe Size: | Contact Customer Service |
| High Light: | Waterproof Bearing Temperature Sensor,PT100 Bearing Temperature Sensor,Waterproof Resistance Temp Detector |
||

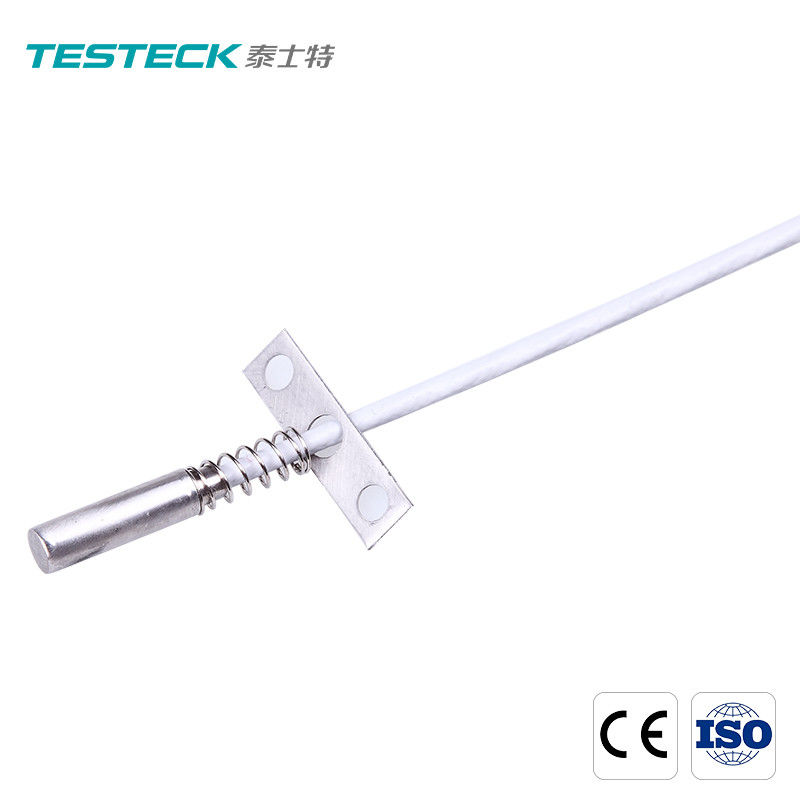

Waterproof Bearing Temperature Sensor Resistance Temp Detector
PT100 Temperature Sensor Probe Waterproof Anti-Corrosion High Temperature High Precision RTD
Temperature measurement shall be carried out close to the surface of the object to be measured. With accurate temperature measurement and vertical installation, it is used for temperature measurement of thrust pad, stator winding, iron core, pressure finger and enclosed bus shell.
1. Product Introduction of the S series temperature sensor--end face resistance
The chip-type temperature sensing element adopts laser welding technology to prevent the solder joints from loosening or falling off in case of strong vibration, which effectively improves the stability of measurement.With a simple structure, it has good long-term stability and responses quickly when the end face of the sensor is close to the surface of the measured object.It is especially suitable for installation and use in a narrow space or special occasions, and its volume is very small.Oil and high temperature resistant shielded conductor, jacket and insulating layer are made of special polymers, which can work in the oil temperature of 100℃ for eight years.
The copper-plated silver core has good conductivity, and the equilibrium degree of each hundred meters is less than 0.05Ω.
2. Product Parameter (Specification) of the S series temperature sensor--end face resistance
| Specifications | Parameter |
| model | Testeck end-face thermal resistor S06Pt100-20-X-3110/A00 |
| Temperature measuring range | -50～260℃ |
| Wire system | Three wire system |
| Process connection | Movable thread M10 × 1 or other dimensions |
| Material | Non magnetic stainless steel |
| Outer diameter of casing pipe | Φ5-Φ10 |
| Protective device | With corrugated pipe protection (outer diameter of corrugated pipe Φ 6.7) |
| Insulation resistance at room temperature | >100MΩ |
| Response time | τ0.5＜15s |
| Conductor specification | TST319015 |
3. Product Feature And Application of the S series temperature sensor--end face resistance
It is applicable in vertical installation of thrust pad, temperature measurement of stator winding, iron core, pressure finger and enclosed bus shell.
4. Product Details of the S series temperature sensor--end face resistance
The cable insulation layer is made of high-temperature and tension resistant materials.
In particular, magnetization resistance, temperature resistance and insulation performance shall be taken into consideration for packaging materials.
5. delivery, shipment and service of temperature sensors
The temperature sensor is packed in cartons. If you need, we can also make it for you.
6. FAQ
1, are your manufacturer?
We are manufacturer, our factory localed in Shenzhen China.
2, what product you manufacturer have?
Our factory produce temperature sensor for power station,
Stators and cable for industry.
3, how many production lines do you have?
We have 10 production lines in Shenzhen factory.
4, how do you ensure product quality?
We already built a mechanical,electrical,fire and flame retardant laboratory, professional testing engineers.
5, can you send samples?
Yes, we will supply sample before your make the order.
