Testeck Ltd.
Temperature sensor and low smoke halogen free flame retardant high temperature cable manufacturer:www.testeck.com/
 |
| Place of Origin: | China |
| Brand Name: | Testeck |
| Certification: | CE，ISO |
| Model Number: | TY-S |
| Minimum Order Quantity: | 10 |
|---|---|
| Price: | Agree |
| Packaging Details: | Customized packing |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 5000 pieces each month |
| Index Number: | PT100 K / E / Cu50, Etc | Protection Tube Material: | According To Customer Requirements |
|---|---|---|---|
| Installation Method: | Contact Customer Service | Measuring Range: | PT100 -200～450℃ CU50 -50～150℃ ,K 0～600℃ E 0～400℃ |
| Thermal Response Time: | <15S | Protection Level: | IP55/IP65 |
| High Light: | IP65 Cu50 Temperature Sensor,Anti Corrosion Cu50 Temperature Sensor,Cu50 Steam Temperature Sensor |
||

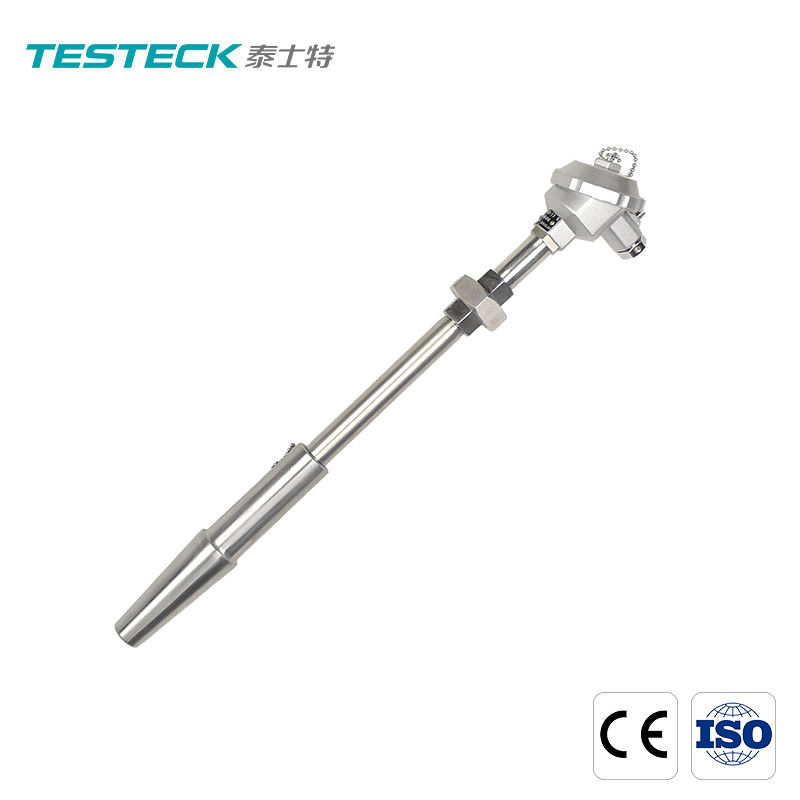

Anti Corrosion IP65 Cu50 Temperature Sensor For Turbine Steam Measurement
Steam Temperature Measurement Of Steam Turbine Anti Corrosion And High Pressure Resistance
Turbine steam temperature measurement points are the focus of the temperature measurement of the entire coal-fired generating set, which mainly include the main steam temperature, the steam temperature in the reheated hot section, and the steam temperature in the reheated cold section.
Steam turbine steam temperature measurement
1. Product Introduction of the Steam turbine steam temperature measurement
The measurement points of the steam extraction system of the steam turbine include the steam temperature at the inlet of each high-pressure heater, the steam temperature at the inlet of the deaerator, and the steam temperature of the small steam turbine. Generally, medium temperature and medium pressure thermowell thermocouples are used, and the temperature sleeve material is 1Cr18Ni9Ti.
2. Product Parameter (Specification) of the Steam turbine steam temperature measurement
Turbine steam system temperature
| Index number | Measuring point position | Parameter | Protection tube material | Current speed | connect | Depth |
|
K E Pt100 |
steam |
P=30MPa T=610℃ |
P92 | ≤100m/s | welding |
50 75 100 150 |
| Reheat section |
P=8MPa T=610℃ |
P92 | ||||
| Reheat cold section |
P=30MPa T=410℃ |
1Cr18Ni9Ti |
| Index number | Measuring point position | Parameter | Protection tube material | Current speed | connect | Depth |
|
K E Pt100 |
High entrance |
P=14.7MPa T=580℃ |
1Cr18Ni9Ti 316 |
≤30m/s
|
welding |
50 75 100 150 200 250 300 400 500 |
| Deaerator inlet | ||||||
| Small steam turbine |
3. Product Feature And Application of the Steam turbine steam temperature measurement
It is Suitable for monitoring the stream motor temperature.
4. Product Details of the Steam turbine steam temperature measurement
The cable insulation layer is made of high-temperature and tension resistant materials.In particular, magnetization resistance, temperature resistance and insulation performance shall be taken into consideration for packaging materials.
5.delivery, shipment and service of temperature sensors
The temperature sensor is packed in cartons. If you need, we can also make it for you.
6.FAQ
1, are your manufacturer?
We are manufacturer, our factory localed in Shenzhen China.
2, what product you manufacturer have?
Our factory produce temperature sensor for power station,
Stators and cable for industry.
3, how many production lines do you have?
We have 10 production lines in Shenzhen factory.
4, how do you ensure product quality?
We already built a mechanical,electrical,fire and flame retardant laboratory, professional testing engineers.
5, can you send samples?
Yes, we will supply sample before your make the order.
