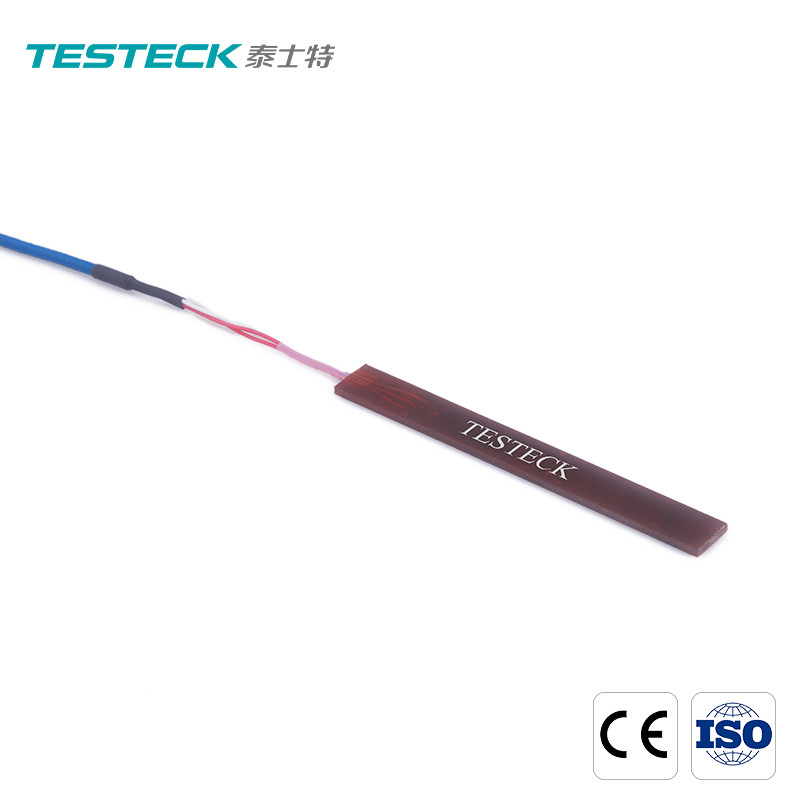

SMD Motor Stator Temperature Sensor Resistance Temperature Device

SMD Motor Stator Temperature Sensor Resistance Temperature Device

SMD Motor Stator Temperature Sensor Resistance Temperature Device
SMD Motor Stator Temperature Sensor Resistance Temperature Device
SMD Motor Stator Temperature Sensor Resistance Temperature Device
Product Details:
Place of Origin: China
Brand Name: Testeck
Certification: CE,ISO
Model Number: TY-C
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Agree
Packaging Details: customized packing
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 5000 pieces each month
Contact Now
Detailed Product Description
Temperature Measuring Range: -50~260℃ Pressure Resistance: 2MPa
Insulation Grade: Class F (155 ℃), H (180 ℃) Maximum Excitation Current: 5mA
Withstand Voltage: 2500VAC/min Lead Longitudinal Pressure Resistance: 200N
High Light:

SMD Motor Stator Temperature Sensor

,

Stator winding RTD

,

Winding stator temperature sensor

Temperature sensor for stator winding of SMD motor



Winding stator temperature sensor (TW2010Pt100-100-2-3104/00F200/X2) has small temperature rise and reliable temperature measurement. The temperature sensing element extends to most of the length of the sensing body to provide the average temperature reading in the temperature measurement area. This avoids the danger that the point temperature sensor misses the local hot spot.



Winding stator temperature sensor



1. Product Introduction of the Winding stator temperature sensor

The winding temperature sensing element adopts laser welding technology to prevent the solder joints from loosening or falling off in case of strong vibration, which effectively improves the stability of measurement.



2. Product Parameter (Specification) of the Winding stator temperature sensor

Model

parameter

TW2010Pt100-100-2-3104/00F200/X2 Winding patch thermistor
Temperature measuring range -50~260℃
Wire system Three-wire system
Insulation grade Class F (155 ℃), H (180 ℃)
Accuracy grade Class A /B
Insulation resistance at room temperature Greater than100MΩ
Withstand voltage 2500VAC/min
Pressure resistance 2MPa
Airtightness Immerse in water for 1h at ambient temperature
Thermal cycle The change value of resistance at 0℃ shall not exceed 0.12Ω.
Application It is applied in monitoring the temperature of generator stator winding, iron core and pressure finger.

SMD Motor Stator Temperature Sensor Resistance Temperature Device 0

3. Product Feature And Application of the Winding stator temperature sensor

It is applied in monitoring the temperature of generator stator winding, iron core and pressure finger.



4. Product Details of the Winding stator temperature sensor

The cable insulation layer is made of high-temperature and tension resistant materials.

In particular, magnetization resistance, temperature resistance and insulation performance shall be taken into consideration for packaging materials.



5. delivery, shipment and service of temperature sensors

The temperature sensor is packed in cartons. If you need, we can also make it for you.



6. FAQ

1, are your manufacturer?

We are manufacturer, our factory localed in Shenzhen China.

2, what product you manufacturer have?

Our factory produce temperature sensor for power station,

Stators and cable for industry.

3, how many production lines do you have?

We have 10 production lines in Shenzhen factory.

4, how do you ensure product quality?

We already built a mechanical,electrical,fire and flame retardant laboratory, professional testing engineers.

5, can you send samples?

Yes, we will supply sample before your make the order.
