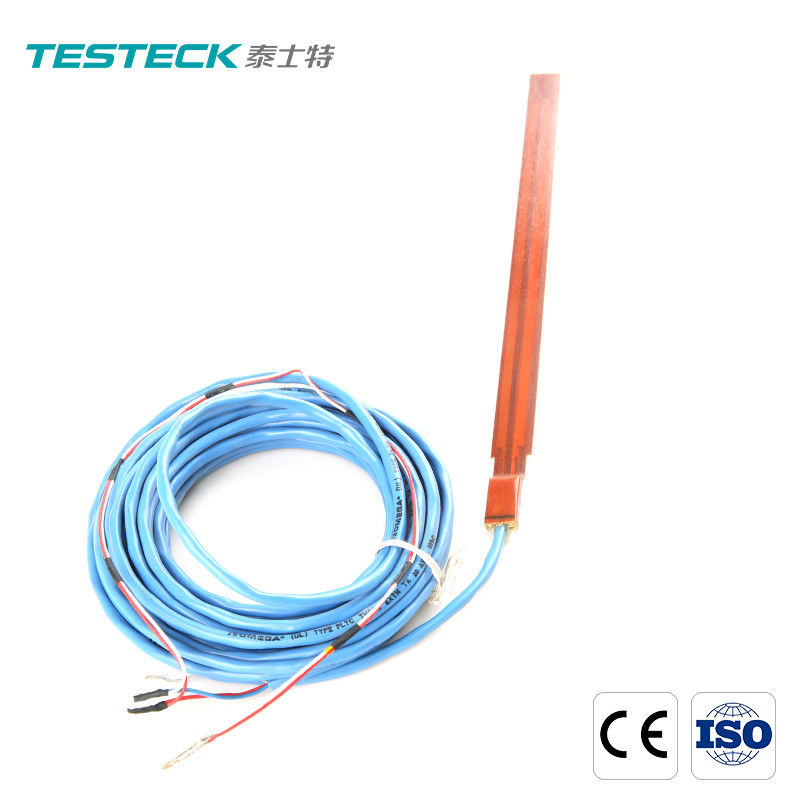

RTD Motor Winding Temperature Sensor Surface Mount Thermocouple

RTD Motor Winding Temperature Sensor Surface Mount Thermocouple

  • RTD Motor Winding Temperature Sensor Surface Mount Thermocouple
RTD Motor Winding Temperature Sensor Surface Mount Thermocouple
Product Details:
Place of Origin: China
Brand Name: Testeck
Certification: CE,ISO
Model Number: TRZ-C
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Agree
Packaging Details: Customized packing
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 5000 pieces each month
Contact Now
Detailed Product Description
Type: PT100 Line System: -40℃ ~180℃
Insulation Resistance: >100 Mohm Normal, > Mohm At 180℃ Voltage: 1500V At 50Hz, 1Min
Insulation Class: F(155℃)、H(180℃) Room Temperature Insulation Resistance: More Than 100m Ω
High Light:

RTD Motor Winding Temperature Sensor

,

Surface Mount Thermocouple

,

PT100 Motor Winding Temperature Sensor

RTD Motor Winding Temperature Sensor Surface Mount Thermocouple



Rtd Sensor/Pt100 Sensor/Temperature Sensor Surface Mount Thermocouple



Embedded in the winding parts that cannot be touched after the motor is manufactured, and cannot be easily replaced. Long-term stability and longevity are particularly critical.Components: Wire-wound components to ensure small self-heating temperature rise. Two types of single element and dual element are available. The two-element platinum resistance is larger in width and thickness than the single-element platinum resistance.Insulation shell: F and H insulation materials are available.Lead wire: use high temperature and corrosion resistant fluoroplastic insulated fluoroplastic sheathed control cable.



Stator winding temperature measurement



Ⅰ Product Introduction of the Stator winding temperature measurement

A high-temperature heat-shrinkable film package is used on the outside of the platinum resistance thermometer, which improves the insulation performance of the platinum resistance thermometer and protects the root of the probe to avoid disconnection.

In order to facilitate installation, the outlet direction of the platinum resistance thermometer can be customized, and it can be outlet at the top or side.

The lead wire of platinum resistance can be round wire, flat wire and loose wire.

The wire system is generally three-wire system, and can be made into two-wire system and four-wire system according to user needs.



Ⅱ. Product Parameter (Specification) of the Stator winding temperature measurement

Type PT100,T
Line system Three line system, single /double
Temperature range -40℃ ~180℃
Insulation resistance >100 Mohm normal, > Mohm at 180℃
Voltage 1500V at 50Hz, 1Min
Pressure resistance 2MPa , 60S
Longitydinal pull of lead 50N , 15S
Sealability Lead wire and sensor are reliably sealed
Thermal cycle <0.12ohm at 0℃
Self-heating influence Increment < 0.1ohm


Ⅲ. Product Feature And Application of the Stator winding temperature measurement

It is Suitable for monitoring the bearing temperature of generators.



Ⅳ. Product Details of the Stator winding temperature measurement

The cable insulation layer is made of high-temperature and tension resistant materials.In particular, magnetization resistance, temperature resistance and insulation performance shall be taken into consideration for packaging materials.



Ⅴ. delivery, shipment and service of temperature sensors

The temperature sensor is packed in cartons. If you need, we can also make it for you.



Ⅵ. FAQ

1, are your manufacturer?

We are manufacturer, our factory localed in Shenzhen China.

2, what product you manufacturer have?

Our factory produce temperature sensor for power station,

Stators and cable for industry.

3, how many production lines do you have?

We have 10 production lines in Shenzhen factory.

4, how do you ensure product quality?

We already built a mechanical,electrical,fire and flame retardant laboratory, professional testing engineers.

5, can you send samples?

Yes, we will supply sample before your make the order.
