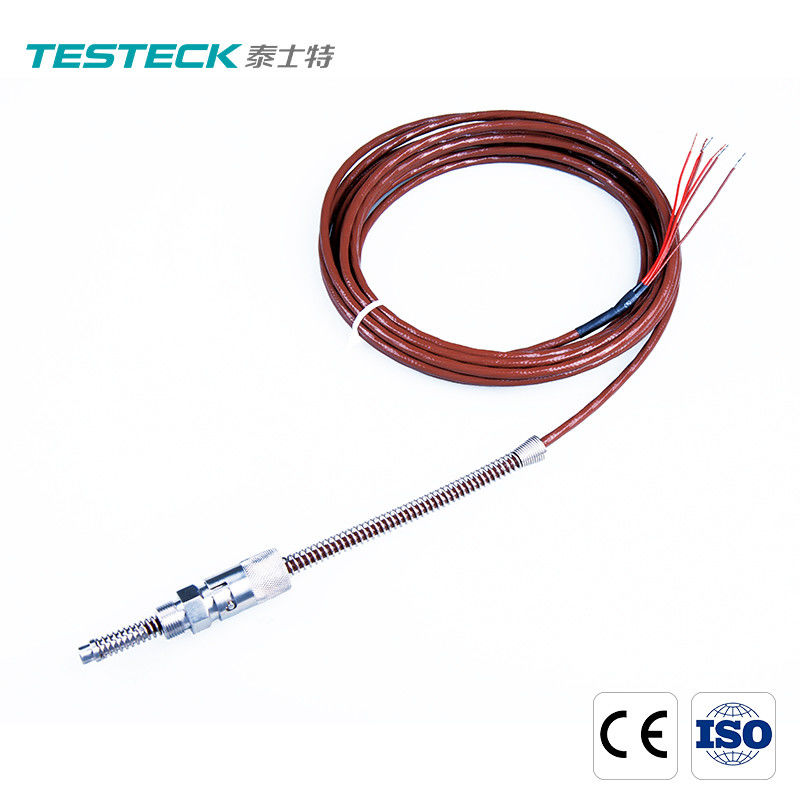

SUS304 SUS316 Boiler Temperature Sensor K Type Thermocouple

SUS304 SUS316 Boiler Temperature Sensor K Type Thermocouple

  • SUS304 SUS316 Boiler Temperature Sensor K Type Thermocouple
SUS304 SUS316 Boiler Temperature Sensor K Type Thermocouple
Product Details:
Place of Origin: China
Brand Name: Testeck
Certification: CE,ISO
Model Number: TY-S
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Agree
Packaging Details: Customized packing
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 5000 pieces each month
Contact Now
Detailed Product Description
Type: K / E Ambient Temperature In Application: -100~500℃
Probe Material: 304 Accuracy Class: Class 1, 2
Diameter: Customizable Probe Size: Contact Customer Service
High Light:

SUS316 Boiler Temperature Sensor

,

SUS304 Boiler Temperature Sensor

,

SUS316 K Type Thermocouple

SUS304 SUS316 Boiler Temperature Sensor K Type Thermocouple



Temperature Sensor For Bearing Bush Of Turbo Generator



End-face thermocouple is composed of temperature measuring element, outer protection tube, compressed spring, process connection device, and shield extension, mainly used for bearing temperature measurement for steam turbine thrust bushes, water pipes of double water-cooled generators, and other mechanical equipment.



Ⅰ. End face thermocouple

The end thermocouple is generally composed of thermocouple compensation conductor, insulating pipe and protective sleeve, and its installation forms are various.

There is an international standard specification for thermocouples. The international regulations stipulate that thermocouples are divided into eight different divisions, namely B, R, S, K, N, E, J and T. The measurement temperature can be as low as minus 270 degrees Celsius and as high as 1,200 degrees Celsius. In addition, B, R and S belong to the platinum series thermocouples and, since platinum is a precious metal, such platinum series thermocouples are also called precious metal thermocouples and the remaining ones the cheap metals thermocouples.

For more non-standard customized products, please consult Shenzhen Testeck Science and Technology Co., Ltd.



Ⅱ. Product parameters

Specifications Parameters
TY-S Thermocouple
Type K, E,
Accuracy class Class 1, 2
Ambient temperature in application -100~500℃
Structure of sensor Single Double
Protection tube material SUS304, SUS316, SUS321 (customer specified)
Process connection Various forms such as compressed tablet and movable thread
Protection grade IP57-IP67



Ⅲ. Application of company products

It is widely used in industrial sectors and scientific and technological fields, including petroleum, chemical, machinery, metallurgy, electric power, textile, food and others.



Ⅳ. Product Structure

SUS304 SUS316 Boiler Temperature Sensor K Type Thermocouple 0
