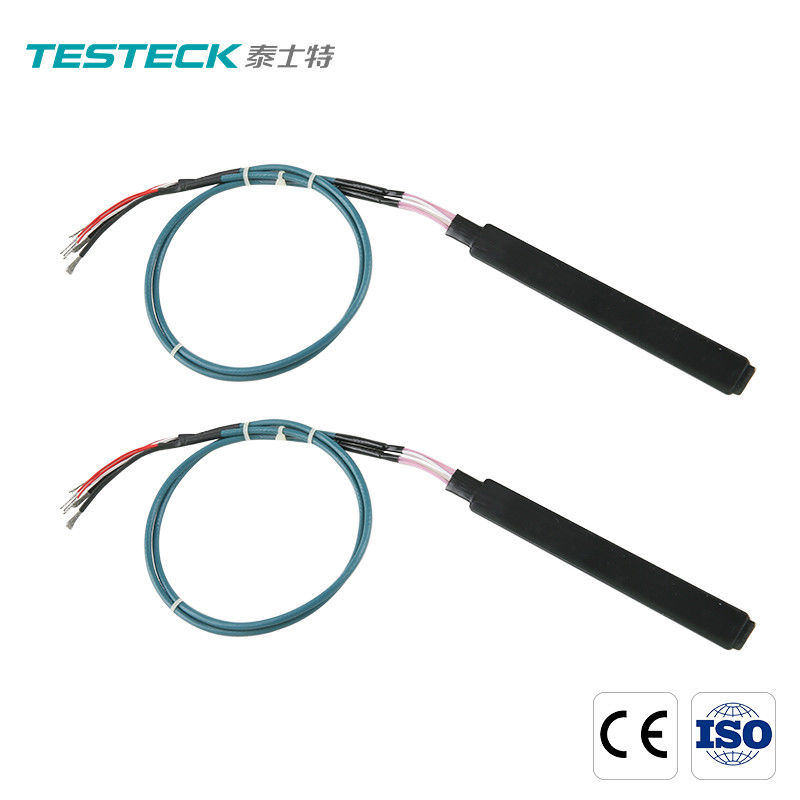

ISO Certified Motor Winding RTD Temperature Sensor Pt100 3 Wire
Rtd Sensor/Pt100 Sensor/Temperature Sensor For Motor Winding
Ⅰ. Product description
winding RTDs The Stator winding temperature detector (RTD) are used to measure winding temperature of large Motors, Generators etc. These sensor are sandwiched between the windings of Motors/Generators. Unlike on/off devices, It allows continuous measurement of winding temperature. Normally six sensors are recommended for each motor, Two per Phase. This RTD are generally flat type in construction and are available in various sizes. Specification Type PT 100(100 ohm at 0 degC)* Model TSRE series Body Material Fibre Glass epoxy Temperature Class Class F(Temperature limit155 DegC) or Class H(Temperature limit180 DegC) Calibration Standard IEC 60751 Or DIN 43760 Temperature coefficient(TCR)0.003850 Accuracy Class A/B/2B Sensing current 10mA maximum Dielectric strength 3 KV/50Hz for 1minute between leads & surface of Glass epoxy body (Increased dielectric strength up to 5 KV/ 50Hz for 1 minute upon request.)
Ⅱ. Product features
1. Chip type temperature sensing element and laser welding technology are used to prevent the solder joints from loosening or falling off under the strong vibration, which effectively improves the stability of measurement.
2. The wound type temperature sensing element is made of high-purity platinum wire wound into a spring (or other shape) and evenly embedded in the insulating plate. The temperature monitored by the wound type thermal resistance is the average temperature in the specified range.
3. The cable insulation layer is made of high temperature resistant and tensile resistant materials.
4. Packaging materials take into account, in particular, the resistance to magnetization, temperature, heat conduction and insulation.
5. The technical indexes are in accordance with jbt10500.1-2005, jbt10500.2-2005 and iec60751.
6. Slim dimensions to get inserted in between windings• Resistance to shock, vibration and pressure
7. High Dieelectric Strength
8. ISO Certified Product
9. Easy To Install Because Of Its Slim Design
Ⅲ. Product application
Application to the temperature monitoring of stator winding, core and pressure finger of large and medium sized motors (generator and motor)
Ⅳ. Product Parameter (Specification) of the Chip type stator temperature sensor
| Model | Chip type stator temperature sensor |
| T2010Pt100-200-5-3200 | |
| Temperature measuring range | -50～180℃ |
| Wire system | Three wire system |
| Insulation grade | Class F (155 ℃), H (180 ℃) |
| Accuracy grade | Class A /B |
| Maximum excitation current | 5mA |
| Insulation resistance at room temperature | ≥100MΩ |
| Withstand voltage | 1000～2500VAC/min |
| Pressure resistance | 2～4MPa |
| Lead longitudinal pressure resistance | 15～200N |
| Tightness | Immerse in water for 1H at ambient temperature |
| Thermal cycle | The change value of resistance at 0 ℃ shall not exceed 0.12 Ω |
| Application | It is applied in monitoring the temperature of generator stator winding, iron core and pressure finger. |
Ⅵ. delivery, shipment and service of temperature sensors
The temperature sensor is packed in cartons. If you need, we can also make it for you.
Ⅶ. FAQ
Q, are your manufacturer?
A, We are manufacturer, our factory localed in Shenzhen China.Our company mainly produces emperature Sensor .
Q, what product you manufacturer have?
A, Our factory produce temperature sensor for power station, Stators and cable for industry.
Q, how many production lines do you have?
A, We have 10 production lines in Shenzhen factory.
Q, how do you ensure product quality?
A, We already built a mechanical,electrical,fire and flame retardant laboratory, professional testing engineers.
Q, can you send samples?
A, Yes, we will supply sample before your make the order.
