High Temp K Type Thermocouple Temperature Sensor IEC584 IEC1515 Standards

High Temp K Type Thermocouple Temperature Sensor IEC584 IEC1515 Standards

  • High Temp K Type Thermocouple Temperature Sensor IEC584 IEC1515 Standards
High Temp K Type Thermocouple Temperature Sensor IEC584 IEC1515 Standards
Product Details:
Place of Origin: China
Brand Name: Testeck
Certification: CE,ISO
Model Number: TY-S01 series
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Agree
Packaging Details: Customized packing
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 5000 pieces each month
Contact Now
Detailed Product Description
Product Name: Assembled Hot Spot Couple / Resistor Graduation: K / E / Cu50, Etc
Pipe Material: 2520 (310S), 201, 304, 316, Gh3039, Etc Installation Method: Flange, Thread, Etc. Can Be Selected (contact Customer Service For Details)
Diameter Of Protective Tube: Others Can Be Customized As 8, 10, 12, 20, 25, Etc. Measuring Range: 0-1300 ℃ (long Term Use 0-1100 ℃)
High Light:

High Temp K Type Thermocouple

,

IEC 584 Thermocouple Temperature Sensor

,

IEC 1515 Thermocouple Temperature Sensor

High Temp K Type Thermocouple Temperature Sensor IEC584 IEC1515 Standards



Thermocouple Taper Sleeve Industrial Design Accurate Measurement

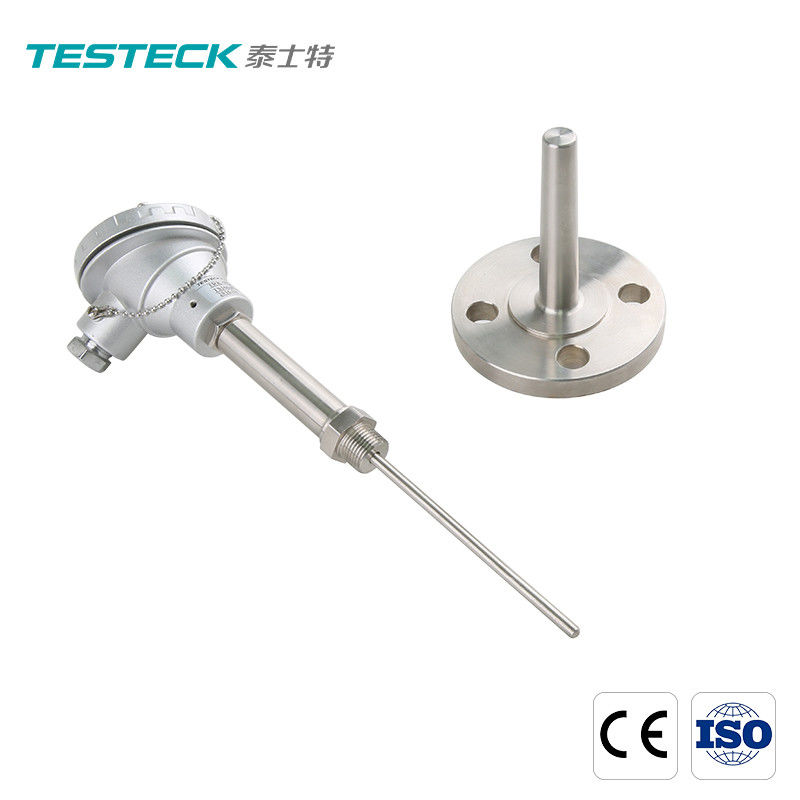

TY-S01 series tapered tube thermocouple is used as a temperature sensor, usually in combination with display instruments, recording instruments and electronic regulators. It can directly measure the surface temperature of 0-1,800°C of liquid, steam, gas and solid surface in production processes.

Working principle
TY-S series tapered tube thermocouple is composed of two different conductor materials. The temperature difference between the measuring terminal and the reference terminal will result in thermoelectric potential, and the working instrument will display the corresponding temperature value.
Product standards
IEC584, GB/T18404-2001, GB/T16839-1997, JB/T5518-1991, JB/T92389-1999, etc

1. Tapered tube thermocouple
The industrial tapered tube thermocouple is mainly composed of junction box, tube, terminal block, insulating ceramic column and temperature sensing element, and equipped with various installation and fixing devices.
1.1 Type of thermocouple: platinum rhodium 30-platinum rhodium 6, platinum rhodium 10-platinum, nickel chromium-nickel silicon, nickel chromium-copper nickel.

1.2 Tapered tube: According to the type of thermocouple, the condition of the measured medium and the temperature to be measured, the tubes made of different materials are selected. The tubes of thermocouple are generally made of carbon steel, various grades of stainless steel, alloy steel and other materials.

1.3 Junction box: The junction box of thermocouple is used to connect the display instrument of temperature sensing element, generally made of aluminum alloy and stainless steel. It is divided into explosion-proof, waterproof and small splash-proof structures.

1.4 Wiring board: The wiring board of thermocouple is generally made of ceramics and installed in the junction box. It is the signal output terminal of the thermocouple, and divided into two types: single-branch type and double-branch type.

1.5 Installation and fixing device: The installation and fixing device is for users to install and fix thermocouple. It is divided into various forms, such as no fixing device, fixed thread, movable flange and fixed flange.

1.6 Nominal pressure
Generally it refers to the static external pressure that the tube can withstand without breaking under the working temperature. In fact, it is not only related to the tube material, diameter, and wall thickness, but also related to the structure, installation method, insertion depth, and the flow rate and type of the medium to be measured.
For more non-standard customized products, please consult Shenzhen Testeck Science and Technology Co., Ltd.

2. Product parameters
2.1 Product standards
IEC584 IEC1515 GB/T16839-1997 JB/T5582-91
2.2 Insulation resistance under normal temperature
For the armored thermocouple, the ambient temperature is 20±15℃, the relative humidity is not more than 80%, and the test voltage is 500±50V (DC). The insulation resistance between the electrode and the outer tube is ≥1,000MΩ.m, that is, the insulation resistance of the 1m and 10m long sample are 1,000MΩ and 100MΩ respectively.



Specifications Parameters
TY-S series Thermocouple - junction box
Type K, E, T, S
Accuracy class Class 1, 2
Ambient temperature in application Refer to temperature measurement range and tolerance
Structure of sensor SingleDouble
Tube material SUS304, SUS316, SUS321 (customer specified)
Process connection No fixing device, fixed thread, movable flange and fixed flange
Protection grade IP57-IP67


3. Application of company products
It is widely used in industrial sectors and scientific and technological fields, including petroleum, chemical, machinery, metallurgy, electric power, textile, food and others.

4. Product description:
Fixed tapered tube thermocouple

Name Model Type Temperature range ℃ Specification Junction box
Tube material Total length L(mm)

Depth

I (mm)

Single NiCr-NiSi TYRN-621 K 0~600 Stainless steel 1Cr18Ni9Ti

225

250

300

350

400







Splash-proof







Waterproof

TYRN-621A
Double NiCr-NiSi TYRN2-621
Single nickel-chromium-copper-nickel TYRE-621 E 0~600
TYRE-621A
Double nickel-chromium-copper-nickel TYRE2-621
Single NiCr-NiSi TYRN-631 K

0~800

0~1,000

Double NiCr-NiSi TYRN2-631
Single nickel-chromium-copper-nickel TYRE-631 E 0~600
Double nickel-chromium-copper-nickel TYRE2-631


Note:
(1) Thermal response time of fixed tapered tube thermocouple τ0.5(s) <90;
(2) Nominal pressure: 30MPa, flow velocity <80m/s;
(3) Specifications not included above can be customized according to customer requirements.



Product Model Specification of fixing screw
M0
TYRN-621 M33×2
TYRN-621A G1"
TYRN2-621 M33×2
TYRE-621 M33×2
TYRE-621A G1"
TYRE2-621 M33×2
TYRN-631 M33×2
TYRN2-631 M33×2
TYRE-631 M33×2
TYRE2-631 M33×2





Application of thermocouple:

Thermocouples are widely used in science and industry; applications include temperature measurement for kilns, gas turbine exhaust, diesel engines, and other industrial processes. Thermocouples are also used in homes, offices and businesses as the temperature sensors in thermostats, and also as flame sensors in safety devices for gas-powered major appliances.
