| Place of Origin: | China |
| Brand Name: | Testeck |
| Certification: | CE，ISO |
| Model Number: | TY-S |
| Minimum Order Quantity: | 10 |
|---|---|
| Price: | Agree |
| Packaging Details: | Customized packing |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 5000 pieces each month |
| Graduation: | PT100 | Length Of Extension Line: | -40 -- 200℃ |
|---|---|---|---|
| Temperature Range: | According To Customer Requirements | Installation Method: | Contact Customer Service |
| Joint Material: | 304 | Thermal Response Time: | <15S |
| High Light: | SS304 Boiler Temperature Sensor,5000V Boiler Temperature Sensor,SS304 Turbine Temperature Sensor |
||

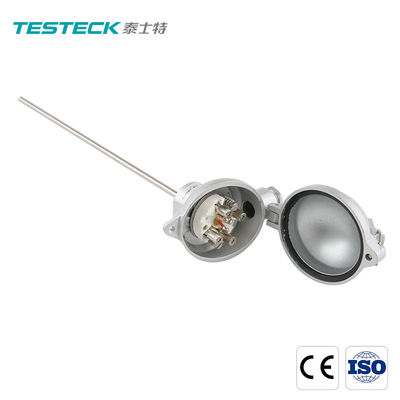

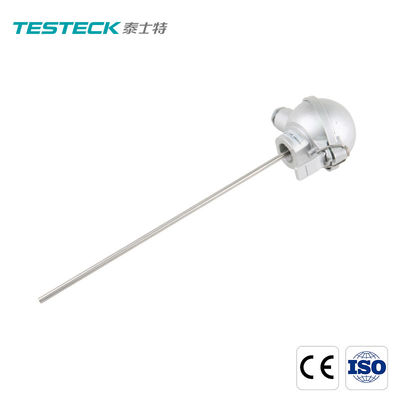

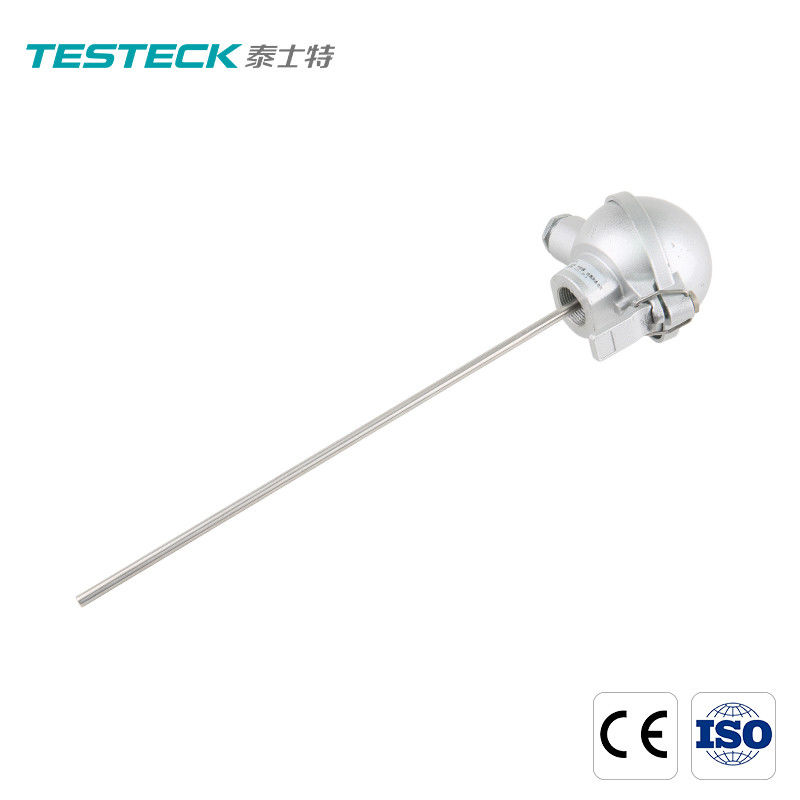

50Hz 5000V SS304 Boiler Temperature Sensor For Turbine Bearing
RTD Of Water Temperature In Water Pipe Of Turbo Generator
Cylinder wall temperature measuring points generally include high pressure cylinder inner and outer wall temperature, intermediate pressure cylinder inner and outer wall temperature..
Temperature measurement of steam turbine body
I. Introduction of steam turbine body temperature measurement products
Turbine bearing temperature
Thermal resistance is mainly used for the temperature of bearing bush and thrust bush of steam turbine. In strong vibration environment, the manufacturing process of thermal resistance is very important. It is suggested that the chip platinum resistance temperature sensing element should be used. Since the cylinder block is immersed in the turbine oil, the sealing of the sensor is very important
II. Product parameters of steam turbine body temperature measurement (specification)
| Index | PT100 | accuracy | A |
| Temperature range | -40 -- 200℃ (can be customized according to actual temperature resistance) | Probe material | 304 |
| Withstand voltage | 50 Hz, 5 000 V, time: 1 min. dimensions: see the figure on the next page (Siemens standard) | Insulation resistance | use 500V megohmmeter to measure thermal resistance at room temperatureThe insulation resistance of the pipe is greater than 1000mq |
Ⅲ. Product Feature And Application of the Steam turbine steam temperature measurement
pipeline and ventilation system
Hydraulic and pneumatic system
Petrochemical industry
Hydraulic and pneumatic systems
Cooling system
Heating system
Air Conditioning System (HAVC)
Automatic system temperature measurement and control
Agricultural Greenhouses
Ⅳ. Product Details of the Steam turbine steam temperature measurement
The cable insulation layer is made of high-temperature and tension resistant materials.In particular, magnetization resistance, temperature resistance and insulation performance shall be taken into consideration for packaging materials.
Ⅴ. delivery, shipment and service of temperature sensors
The temperature sensor is packed in cartons. If you need, we can also make it for you.
Ⅵ. FAQ
Q, are your manufacturer?
A, We are manufacturer, our factory localed in Shenzhen China.Our company mainly produces emperature Sensor .
Q, what product you manufacturer have?
A, Our factory produce temperature sensor for power station, Stators and cable for industry.
Q, how many production lines do you have?
A, We have 10 production lines in Shenzhen factory.
Q, how do you ensure product quality?
A, We already built a mechanical,electrical,fire and flame retardant laboratory, professional testing engineers.
Q, can you send samples?
A, Yes, we will supply sample before your make the order.
Q, How long will you give me the reply?
A, we will contact you as soon as we can.
