| Product Name: | Surface Temperature Measurement | Type: | Pt100 |
|---|---|---|---|
| Accuracy Class: | A、B | Ambient Temperature In Application: | -100 - 500℃ |
| Material Of Probe: | SUS304 | Probe Size: | Contact Customer Service |
| High Light: | PT100 RTD Temperature Sensor,SUS304 RTD Temperature Sensor,RTD K Type Thermocouple Probe Sensor |
||

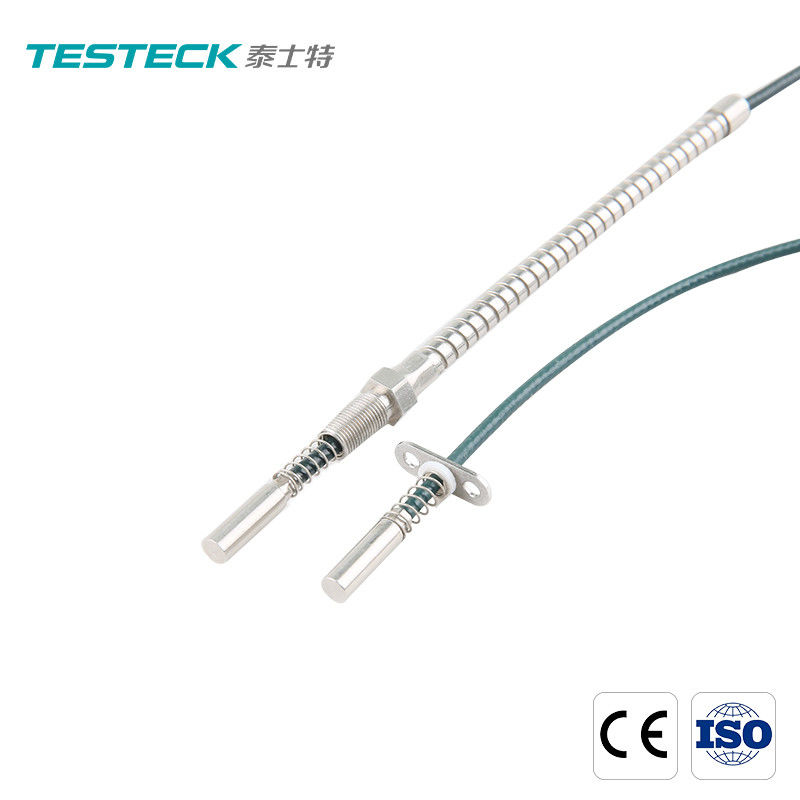

PT100 RTD Temperature Sensor K Type Thermocouple Probe Sensor
PT100 Temperature Sensor Probe End Face Thermal Resistance Temperature Measurement Thermocouple K-Type
The end-surface thermal resistor is composed of temperature measuring element, outer protective tube, compression spring, process connection device, and shielding extension. It is mainly used for bearing temperature measurement of steam turbine thrust bushes, water pipes of double water-cooled generators, and other mechanical equipment.
Ⅰ. End-face Thermal Resistor
The industrial end-face thermal resistor is mainly composed of temperature measuring element, external protection tube, compression spring, process connection device, shield extension, and is equipped with various installation and fixing devices.
1 Temperature sensing element: imported Pt100 temperature sensing element of thin film platinum resistor.
2 Protective tube: According to the type of thermal resistor, the condition of the measured medium and the temperature to be measured, the tubes made of different materials are selected. The tubes of thermal resistor are generally made of carbon steel, various grades of stainless steel, alloy steel and other materials.
3 Installation and fixing device: The installation and fixing device is for users to install and fix thermal resistor. It is divided into various forms, such as compressed plate, flexible thread, etc.
For more non-standard customized products, please consult Shenzhen Testeck Science and Technology Co., Ltd.
Ⅱ. Product Parameters
| Specifications | Parameters |
| TY-C | End-face thermal resistor |
| Type | Pt100 |
| Accuracy class | Class A, B |
| Ambient temperature in application | －100～500℃ |
| Wire system | Two-wire, three-wire, and four-wire |
| Structure of sensor | Single/Double |
| Material of probe | SUS304, SUS316, SUS321 (customer specified) |
| Process connection | Compressed plate, flexible thread, etc. (customer specified) |
Ⅲ. Application of Company Products
1. meteorology
2. national defense
3. scientific research
4. post and telecommunications
5. petroleum
6. chemical industry
7. environmental protection
8. medical and health
9. hotels
10. food
11. materials storage
12. high-end housing and other industries, all kinds of temperature measurement and control applications.
Ⅳ. Features:
1. High precision, good stability;
2. High sensitivity, good linear;
3. Response time short,good compatibility;
4. Compact structure, easy installation, waterproof good
Ⅴ. FAQ
Q, are your manufacturer?
A, We are manufacturer, our factory localed in Shenzhen China.Our company mainly produces emperature Sensor .
Q, what product you manufacturer have?
A, Our factory produce temperature sensor for power station, Stators and cable for industry.
Q, how many production lines do you have?
A, We have 10 production lines in Shenzhen factory.
Q, how do you ensure product quality?
A, We already built a mechanical,electrical,fire and flame retardant laboratory, professional testing engineers.
Q, can you send samples?
A, Yes, we will supply sample before your make the order.
