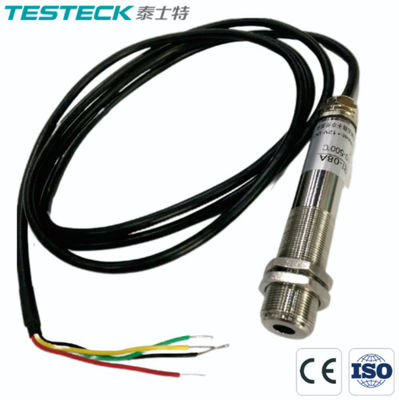

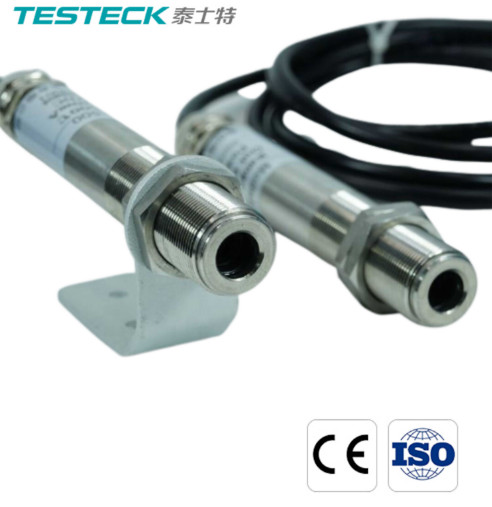

4~20mA Output 0.3 Seconds Infrared Temperature Sensor 14μm Spectral

4~20mA Output 0.3 Seconds Infrared Temperature Sensor 14μm Spectral

  • 4~20mA Output 0.3 Seconds Infrared Temperature Sensor 14μm Spectral
  • 4~20mA Output 0.3 Seconds Infrared Temperature Sensor 14μm Spectral
4~20mA Output 0.3 Seconds Infrared Temperature Sensor 14μm Spectral
Product Details:
Place of Origin: China
Brand Name: Testeck
Certification: CE,ISO
Model Number: YT-A
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Agree
Packaging Details: customized packing
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 5000 pieces each month
Contact Now
Detailed Product Description
Spectral Range: 8~14μm Optical Resolution: 15:1
Response Time: 0.3 Seconds Ambient Temperature: 0~60℃
Cable Length: 2 Standard (can Be Extended) Storage Temperature: -20 ~ 80°C
Temperature Range: 0 ~ 500 °C
High Light:

0.3 Seconds Infrared Temperature Sensor

,

20mA Output Infrared Temperature Sensor

,

14μm Spectral Infrared Thermometer Sensor

4~20mA output infrared temperature sensor



Features

Infrared temperature sensors are integrated. Sensors, optical systems and electronic circuit cluster in the stainless shells; it is easy for installation, the standard screw on the stainless steel shells can be quickly connected with the parts installed. In addition, it also has different models of selected parts (e.g. blow protective housings, 90-degree adjustable installation supports, 3-dimension adjustable installation supports, special purpose digital control instruments, etc) to meet different requirements.

Specifications









Basic performance

Protection IP65(NEMA-4)
Ambient temperature 0 ~ 60°C
Storage temperature -20 ~ 80°C
Relative humidity 10-95% (NO dews)
Material Stainless steel
Size 106mm * Φ20mm (length * diameter)
Cable length 1m (standard), 3m, 15m and particular specifications (customized)



Electric parameters

Operating power 24V DC
Max current 20mA
Output signals 0-5V linear, 10mV/°C









Measurement
parameters

Spectrum range 8 ~14 μm
Temperature range 0 ~ 500 °C
Optical resolution 15:1
Adapting time 300ms (95%)
Measurement accuracy ±1% or ±1.5°C% of the measuring value, and the maximum value (environment temperature: 23°C±5)
Repeated accuracy ±0.5% or ±1°C% of the measuring value, and the maximum value (environment temperature: 23°C±5)
Launch rate 0.95 fixed (coordinates with special purpose digital display controllers to be able to modify online launch rates)
