Testeck Ltd.
Temperature sensor and low smoke halogen free flame retardant high temperature cable manufacturer:www.testeck.com/
Place of Origin: | China |
Brand Name: | Testeck |
Certification: | CE,ISO |
Model Number: | TY |
Minimum Order Quantity: | 10 |
---|---|
Price: | Agree |
Packaging Details: | Customized packing |
Payment Terms: | T/T, Western Union, MoneyGram |
Supply Ability: | 5000 pieces each month |
Ambient Temperature: | -40℃~85℃ | Output Signal: | 4~20mA |
---|---|---|---|
DC Power Supply: | 12-30V DC, Rated Voltage 24V DC | Conversion Accuracy: | ≤ 0.2% |
Transmission Mode: | Two-wire System | Material Of Temperature Probe Rod: | Stainless Steel Material |
High Light: | 3 Wire Rtd Temperature Transmitter,Stainless Steel Rtd Temperature Transmitter,Two Wire Rtd Pt100 Transmitter |

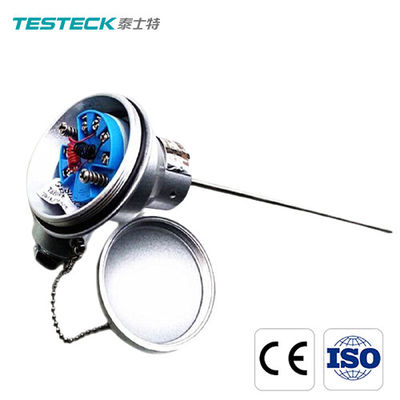

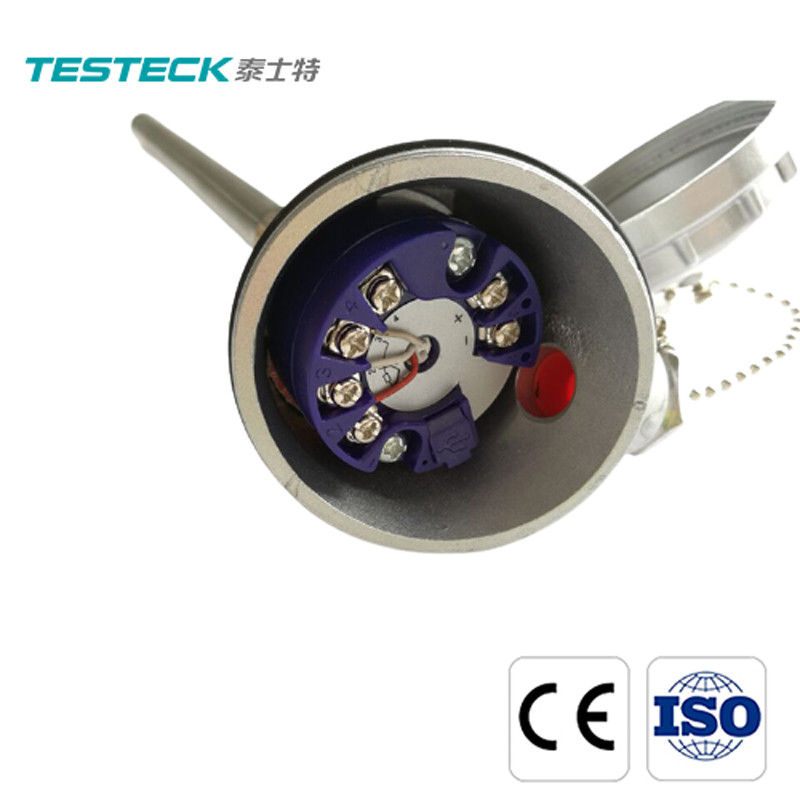

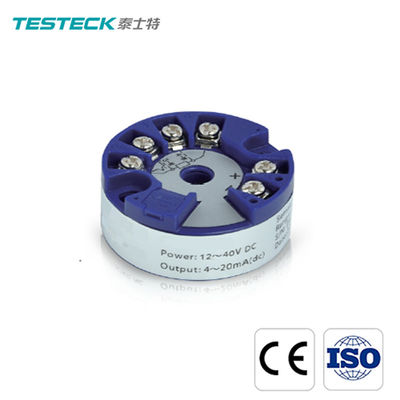

4~20mA pt100 3-wire temperature sensor rtd transmitter
Product Description
Thermal resistance is one type of widely used industry thermometer, can be treated as standard thermometer. Mainly including pt100,pt1000,Cu50,Cu100 types, can be assembly and sheath structures. For platinum resistance, the highest accuracy is ±0.1℃(AA class),the highest using temperature is 600℃.For Copper resistance, the highest accuracy is±0.3℃, the highest using temperature is 150℃.Thermal resistance with high accuracy and low price, be widely applied for kinds of industries production process which below 500℃.
Technical data
Temperature | Low range thin film -50 to 200℃ |
High range wire wound -200~600℃ | |
Type | Single or double |
Connection head | Water-proof head IP54,IP65 |
Explosion-proof head DIIBT4 | |
Wire ways | 2-wire,3-wire,4-wire |
RTD probe | SUS304;316L |
Thermowell | SUS304;316L |
The structure | Fixed or Sheath |
Process connection | Thread NPT1/2”;NPT3/4”.,etc |
Flange ANSI DN15,DN20,DN25.,etc | |
Wire | PVC 85℃,PUR 105℃,Silicone 150℃,PTFE 250℃ |
Response Time and Insulation Resistance
Model | Outer diameter | Response time T0.5(S) | Insulation resistance(MΩ) |
WZPK WZ-RTD P-Pt100 K-Sheath |
3~4 | ≤5 | ≥100 |
5~6 | ≤12 | ||
6~8 | ≤20 | ||
WZPO WZ-RTD P-PT100 O-Fixed |
12 | ≤90 | ≥100 |
16 | ≤150 | ||
Taper Thermowell | ≤270 |
Wire Circuit
