Testeck Ltd.
Temperature sensor and low smoke halogen free flame retardant high temperature cable manufacturer:www.testeck.com/

|
| Place of Origin: | China |
| Brand Name: | Testeck |
| Certification: | CE，ISO |
| Model Number: | TY-S |
| Minimum Order Quantity: | 10 |
|---|---|
| Price: | Agree |
| Packaging Details: | Customized packing |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 5000 pieces each month |
| Product Name: | Industrial , Temperature Sensor | Type: | K |
|---|---|---|---|
| Accuracy: | ±0.2℃ | Temperature Range: | 0-1000℃ |
| Material Of Probe: | 304 | Installation Method: | Contact Customer Service |
| High Light: | Ty-G1 Unfixed Platinum Resistance RTD,SS304 Probe Platinum Resistance RTD,ISO Rtd Resistance Temperature Detector |
||

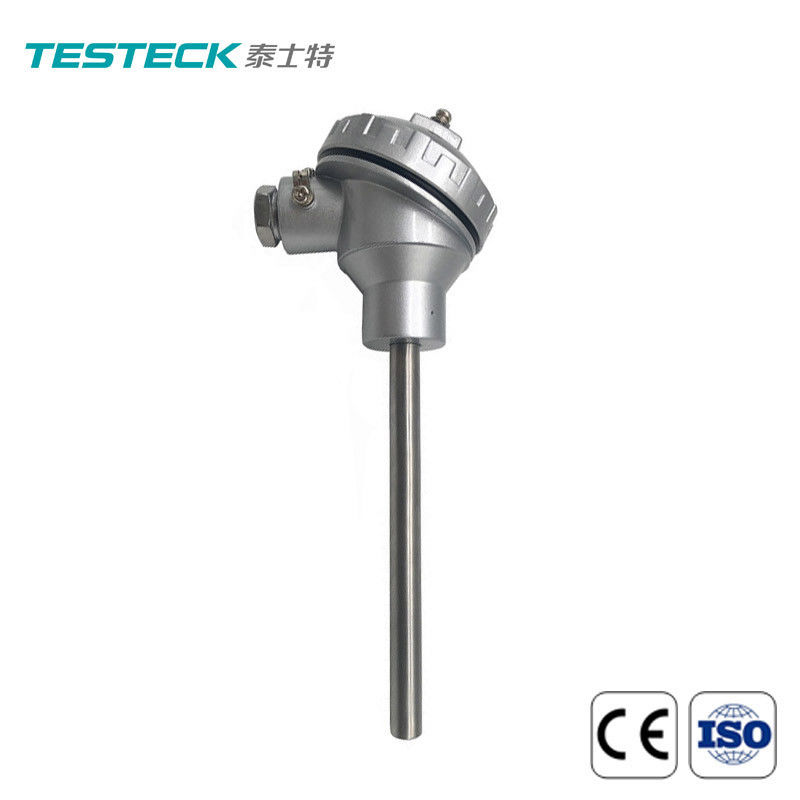

Thermal Resistance Of Junction Box Assembly Of Industrial Thermometer
TY-G1 series non-fixed platinum resistance RTD has the biggest feature that the protective tube part has no connection device, and the part below the junction box is a protective tube. The product can be widely used to measure air temperature, liquid temperature, oil temperature and surface temperature of objects.
| Model | Technical parameters | Outline structure diagram |
|
TY-G1 |
1. Platinum resistance: Pt100, Pt500, Pt1000 Temperature measurement range: (-80~500)℃ 2. Common accuracy: Class A: ±(0.15+0.002|t|)℃ Class B: ±(0.30+0.005|t|)℃ |t|---Absolute value of measured temperature 3. Normal pressure, for working conditions with pressure, please indicate the pressure |
 |
| Model Selection Table | |||||||||
|
TY-G1 |
Model of platinum thermal resistor | ||||||||
| B□ | 1=Pt100 5=Pt500 10=Pt1000 | Type of sensor | |||||||
|
T□ |
1=-50~80 2=0~100 3=-50~200 4=-50~250 Designate |
Temperature range (℃) | |||||||
| P□ | B= Class B A= Class A Designate | Sensor accuracy | |||||||
|
C□ |
100=100 250=250 350=350 600=600 Designate |
Total length of protective tube (mm) |
|||||||
|
D□ |
4=4 8=8 12=12 16=16 Designate |
Diameter of protective tube | |||||||
|
S□ |
1=SUS321 4=SUS304 6=SUS316 Designate |
Material of protective tube | |||||||
|
E□ |
2= two-wire 3= three-wire 4= four-wire |
Wire system |
|||||||
|
G□ |
1= Blowout control 2= Waterproof Designate |
Type of junction box |
|||||||
|
Z□ |
0= no, which can be omitted 2= armor type 3= Antiseptic treatment Designate |
Special requirements |
|||||||
|
Remarks: The parameter requirements specified by the user can be directly marked with numbers or words. Model example: TY-G1-B1- T3- PA- C350/D8/S4- E3- G2 Description: PT100, temperature measurement range -50~200℃, accuracy class A, three-wire system; diameter of protective tube: 8mm, length: 350mm, waterproof junction box |
|||||||||
