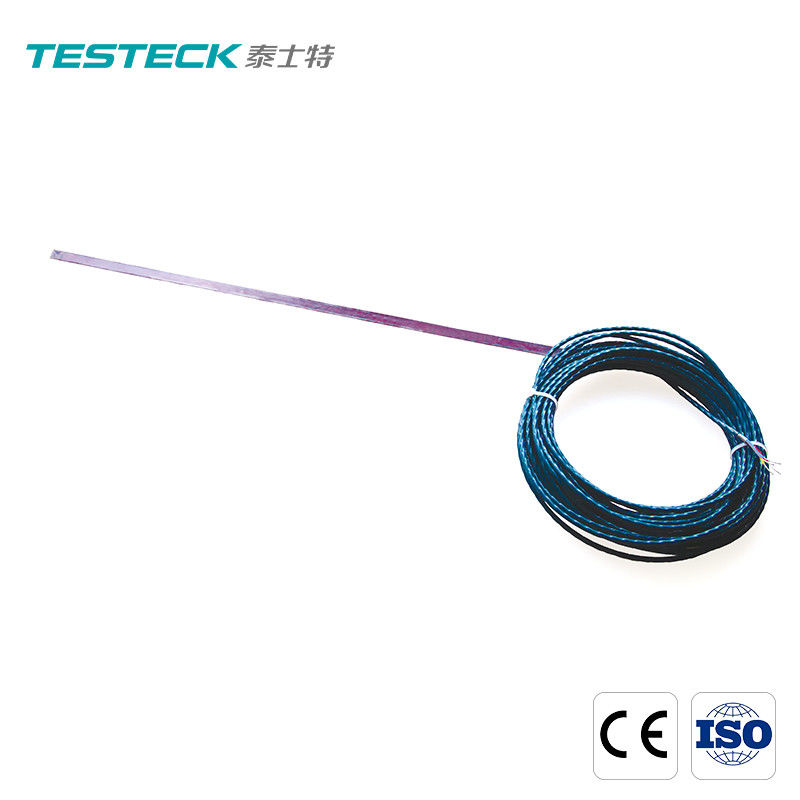

Embedded Anti Interference Stator Temperature Detector 2MPa For Motor

Embedded Anti Interference Stator Temperature Detector 2MPa For Motor

Embedded Anti Interference Stator Temperature Detector 2MPa For Motor
Embedded Anti Interference Stator Temperature Detector 2MPa For Motor
Embedded Anti Interference Stator Temperature Detector 2MPa For Motor
Product Details:
Place of Origin: China
Brand Name: Testeck
Certification: CE,ISO
Model Number: TY-M
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Agree
Packaging Details: customized packing
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 5000 pieces each month
Contact Now
Detailed Product Description
Temperature Measuring Range: -50~260℃ Pressure Resistance: 2MPa
Insulation Grade: Class F (155 ℃), H (180 ℃) Maximum Excitation Current: 5mA
Withstand Voltage: 2500VAC/min Lead Longitudinal Pressure Resistance: 200N
High Light:

Anti Interference Stator Temperature Detector

,

Embedded Stator Temperature Detector

,

2MPa Rtd Temperature Sensor

Embedded anti-interference platinum resistance temperature detector for motor



TY-M series embedded platinum resistance RTDs for motors are suitable for measuring the temperature of large
and medium-sized motor windings. It is used as a RTD to directly measure the temperature of the motor windings
together with display instrument.



Technical parameters

1. Platinum resistance: Pt100, Pt500, Pt1000
Temperature measurement range: (-50~200 )℃
2. Commonly used accuracy:
Class A: ± (0.15+0.002|t| )℃
Class B: ± (0.30+0.005|t| )℃
|t|---Absolute value of measured temperature
3. Insulation material: epoxy resin insulation board
4. Normal pressure, for working conditions with pressure,
please indicate the pressure



                                                              Model Selection Table



TY-M

  Model of platinum thermal resistor
  B□ 1=Pt100   5=Pt500   10=Pt1000 Type of sensor
  T□ 1=0~100   2=-50~100   3=0~200 Designate Temperature range (℃)
  P□ B= CLASS B       A= CLASS A Designate Sensor accuracy




L□

60=60, 80=80, 100=100, 200=1200  Designate

Length of the temperature measuring element (mm)



W□



8=8 10=10 Designate

Width of the temperature measuring element (mm)



H□



2=2 Designate

Thickness of the temperature measuring element (mm)
  Y□ 1=1000 2=2000 Designate Cable length (mm)




E□

2= two-wire 3= three-wire 4= four- wire



Wire system



F□

0= no, which can be omitted 1= both Wire shield/cable sheath




Z□

0= no, which can be omitted Designate



Special requirements

Remarks: The parameter requirements specified by the user can be directly marked with numbers or words. Model example: TY-M -B1- T2- PA- L60/W8/H2- Y1- E3/F1

Description: PT100, temperature measurement range -50 ~ 100 ℃ , accuracy class A, size of temperature

measurement element: 60×8×2mm, lead length 1m, three-wire system



Embedded Anti Interference Stator Temperature Detector 2MPa For Motor 0
