Testeck Ltd.
Temperature sensor and low smoke halogen free flame retardant high temperature cable manufacturer:www.testeck.com/
Place of Origin: | China |
Brand Name: | Testeck |
Certification: | CE,ISO |
Model Number: | TY-T |
Minimum Order Quantity: | 10 |
---|---|
Price: | Agree |
Packaging Details: | Customized packing |
Payment Terms: | T/T, Western Union, MoneyGram |
Supply Ability: | 5000 pieces each month |
Graduation: | Probe In Temperature Sensor | Ambient Temperature In Application: | -80~300℃ |
---|---|---|---|
Type: | PT100 | Probe Diameter: | Contact Customer Service |
Structure Of Sensor: | Single/Double | Installation Method: | Contact Customer Service |
High Light: | SS Probe RTD Temperature Sensor,Fixed Thread RTD Temperature Sensor,PT100 Fiber Optic Temperature Sensor |

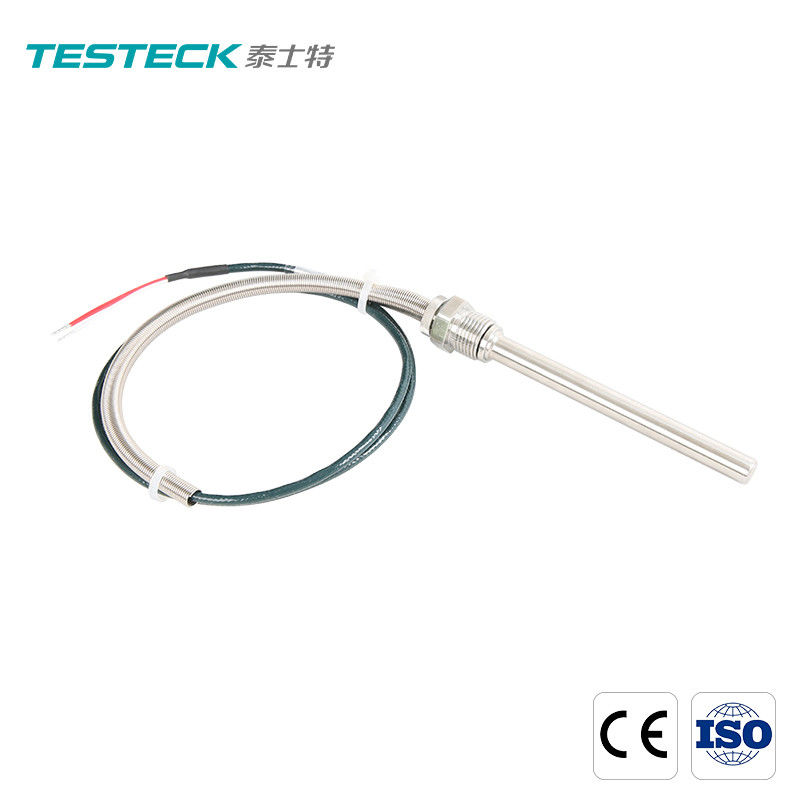

Fixed Thread Metal Probe High Precision PT100 Temperature Sensor
The temperature measurement probe part of TY-T series platinum resistance RTD is composed of two parts, fixed thread and temperature measurement protection tube. Since a variety of temperature measuring tubes of thread specifications and length and diameter are available, the RTD with fixed thread has strong applicability and flexibility, and can be widely used in ambient temperature, fluid pipelines and temperatures that need to be fixed by thread installation.
Model | Technical parameters | Outline structure diagram |
TY-T |
1. Platinum resistance: Pt100, Pt500, Pt1000 Temperature measurement range: (-80~300 )℃ 2. Commonly used accuracy: Class A: ± (0.15+0.002|t| )℃ CLASS B: ± (0.30+0.005|t| )℃ |t|---Absolute value of measured temperature 3. Normal pressure, for working conditions with pressure, please indicate the pressure |
Model Selection Table | |||||||||
TY-T |
Model of platinum thermal resistor | ||||||||
B□ | 1=Pt100 5=Pt500 10=Pt1000 | Type of sensor | |||||||
T□ |
1=-50~80 2=0~100 3=-50~200 4=-50~250 Designate |
Temperature range (℃) | |||||||
P□ | B= Class B A= Class A Designate | Sensor accuracy | |||||||
L□ |
30=30 45=45 60=60 150=150 Designate |
Insertion length (mm) | |||||||
D□ |
3=3 4=4 6=6 8=8 Designate |
Diameter of protective tube (mm) | |||||||
M□ |
8=M8X1 10=M10X1 12=M12X1.5 16=M16X1.5 Designate |
Thread specification |
|||||||
S□ |
1=SUS321 4=SUS304 6=SUS316 Designate |
Material of protective tube | |||||||
Y□ | 1=1000 2=2000 Designate | Cable length (mm) | |||||||
E□ |
2= two-wire 3= three-wire 4= four-wire |
Wire system |
|||||||
F□ |
1= PVC (-20~80℃) 2= TPU (-50~100℃) 3= (-50~250℃) Designate |
Lead material, the value in parentheses is the temperature range of lead |
|||||||
H□ |
0= no, which can be omitted 1= both | Wire shield/cable sheath | |||||||
Z□ |
0= no, which can be omitted 1= cable protection spring 2= armor type 3= Antiseptic treatment 4= Dual tube Designate |
Special requirements |
|||||||
Remarks: The parameter requirements specified by the user can be directly marked with numbers or words. Model example: TY-T -B1- T3- PA- L30/D4/M10/S4- Y1- E3/F3/H1 Description: PT100, temperature measurement range -50 ~ 200 ℃ , accuracy class A, insertion depth 30mm, diameter of protective tube 4mm, thread specification is M10×1, lead length 1m, three-wire system |
