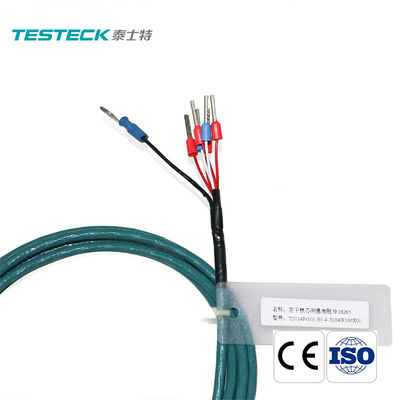

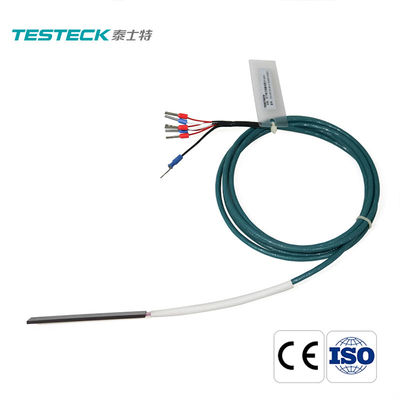

TY-M Series 2MPa Platinum Resistance Temperature Sensor Embedded RTD

TY-M series embedded platinum resistance RTD

TY-M series embedded platinum resistance RTDs for motors are suitable for measuring the temperature of large
and medium-sized motor windings. It is used as a RTD to directly measure the temperature of the motor windings
together with display instrument.

Technical parameters
1. Platinum resistance: Pt100, Pt500, Pt1000
Temperature measurement range: (-50～200 )℃
2. Commonly used accuracy:
Class A: ± (0.15+0.002|t| )℃
Class B: ± (0.30+0.005|t| )℃
|t|---Absolute value of measured temperature
3. Insulation material: epoxy resin insulation board
4. Normal pressure, for working conditions with pressure,
please indicate the pressure

Model Selection Table
TY-M									Model of platinum thermal resistor
	B□	1=Pt100 5=Pt500 10=Pt1000							Type of sensor
		T□	1=0~100 2=-50~100 3=0~200 Designate						Temperature range (℃)
			P□	B= CLASS B A= CLASS A Designate					Sensor accuracy
				L□	60=60, 80=80, 100=100, 200=1200 Designate				Length of the temperature measuring element (mm)
				W□	8=8 10=10 Designate				Width of the temperature measuring element (mm)
				H□	2=2 Designate				Thickness of the temperature measuring element (mm)
					Y□	1=1000 2=2000 Designate			Cable length (mm)
						E□	2= two-wire 3= three-wire 4= four- wire		Wire system
						F□	0= no, which can be omitted 1= both		Wire shield/cable sheath
							Z□	0= no, which can be omitted Designate	Special requirements
Remarks: The parameter requirements specified by the user can be directly marked with numbers or words. Model *exa*mple: TY-M -B1- T2- PA- L60／W8／H2- Y1- E3／F1 Description: PT100, temperature measurement range -50 ～ 100 ℃ , accuracy class A, size of temperature measurement element: 60×8×2mm, lead length 1m, three-wire system
