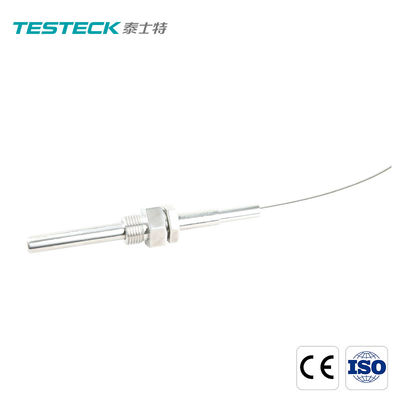

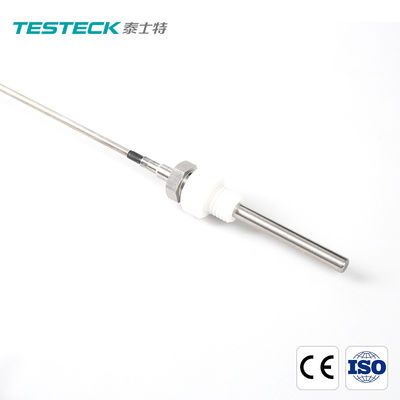

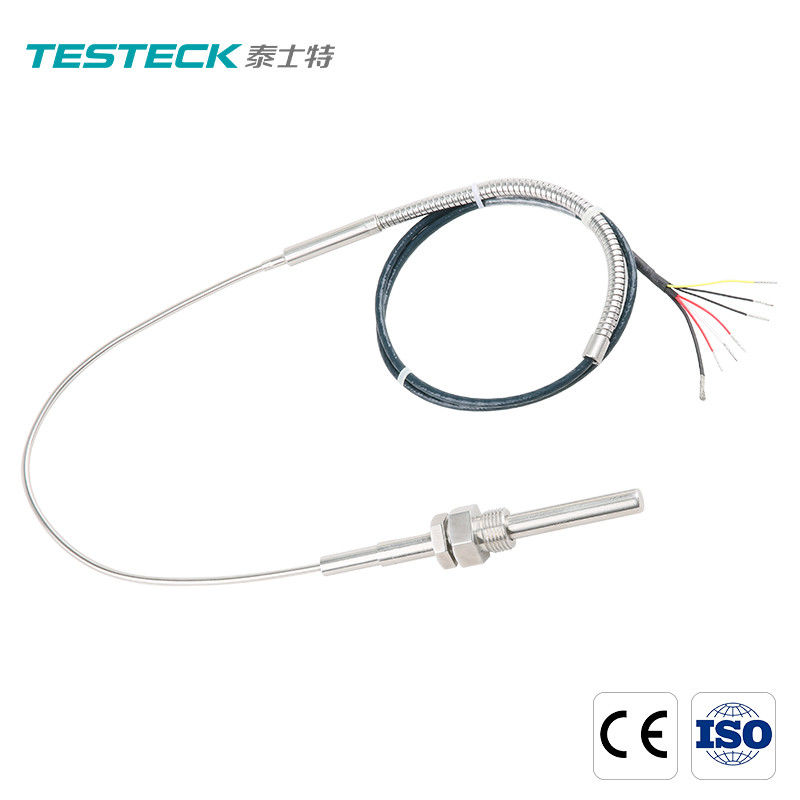

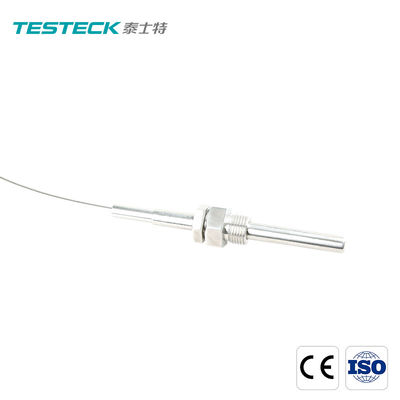

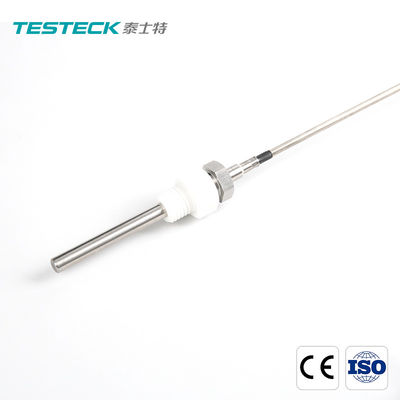

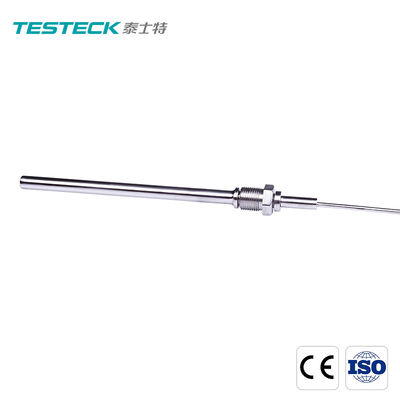

SS304 Bearing Temperature Sensor Thermal Resistance Of End Face Bearing Probe

SS304 Bearing Temperature Sensor Thermal Resistance Of End Face Bearing Probe

SS304 Bearing Temperature Sensor Thermal Resistance Of End Face Bearing Probe
SS304 Bearing Temperature Sensor Thermal Resistance Of End Face Bearing Probe
SS304 Bearing Temperature Sensor Thermal Resistance Of End Face Bearing Probe
Product Details:
Place of Origin: shenzhen
Brand Name: Testeck
Certification: ISO
Model Number: 2-26-6
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: USD
Packaging Details: Standard Package
Delivery Time: 15-20
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 50000
Contact Now
Detailed Product Description
Temperature Measuring Range: -50~200℃ Casing Pipe: Ss304 Bearing Temperature
Outer Diameter Of Casing Pipe: Φ8、Φ12 Insulation Resistance At Room Temperature: >100MΩ
Theory: Resistance Sensor Bearing Temperature Output: 4~20mA
Product Name: Bearing Temperature Sensor Application: Industrial/home Appliance
Color: Optional Power Supply: 12~24VDC
High Light:

SS304 Bearing Temperature Sensor

,

PT100 Bearing Temperature Sensor

,

SS304 Bearing Temp Sensor

SS304 Bearing Temperature Sensor Thermal Resistance Of End Face Bearing Probe



SS304 Bearing Temperature Thermal Resistance Of End Face Bearing Probe PT100 Sensor Motor Bearing Thermal Resistance



Ss304 Bearing Temperature applied in monitoring thrust pad and oil temperature of water turbine. In response to the oil flow impact under complex conditions, the sheathed wire conductor protection device can prevent the hard damage caused by mechanical vibration.


Ss304 Bearing Temperature--sheathed wire protection

 1. Product Introduction of the S series temperature sensor--sheathed wire protection
The chip-type temperature sensing element adopts laser welding technology to prevent the solder joints from loosening or falling off in case of strong vibration, which effectively improves the stability of measurement.
Movable thread connection mode is available. The conductor does not rotate with the probe during installation.
The protective device of sheathed wire conductor can effectively bear the load of the joints of rigid material and flexible material and prevent the conductor from breaking when the tail conductor swings frequently
Oil and high temperature resistant shielded conductor, jacket and insulating layer are made of special polymers, which can work in the oil temperature of 100 ℃ for five years.
The copper-plated silver core has good conductivity, and the equilibrium degree of each hundred meters is less than 0.05Ω.

 2. Product Parameter (Specification) of the Ss304 Bearing Temperature--sheathed wire protection
                SS304 Bearing Temperature Sensor Thermal Resistance Of End Face Bearing Probe 0
    Model Parameters
S08Pt100-200-X-3113/C01K600 Testeck sheathed wire integrated thermistor
Temperature measuring range -50~200℃
Temperature sensing element PT100 class a accuracy
Wire system Three wire system
Process connection Movable ferrule thread M16×2 or other sizes
Casing pipe 304 stainless steel
Outer diameter of casing pipe Φ8,Φ10,Φ12
Protective device Sheathed wire protection
Insulation resistance at room temperature >100MΩ
response time τ0.5<15s
Conductor specification TST319020
Outer diameter of sheathed wire Φ4

     3.Product Feature And Application of the S series temperature sensor--sheathed wire protection
It is applied in monitoring of thrust pad, guide bearing and Ss304 Bearing Temperature of water turbine generator set.
4.Product Details of the S series temperature sensor--sheathed wire protection


     The Ss304 Bearing Temperature insulation layer is made of high-temperature and tension resistant materials.
In particular, magnetization resistance, temperature resistance and insulation performance shall be taken into consideration for packaging
Model Parameters
S08Pt100-200-X-3113/C01K600 Testeck sheathed wire integrated thermistor
Temperature measuring range -50~200℃
Temperature sensing element PT100 class a accuracy
Wire system Three wire system
Process connection Movable ferrule thread M16×2 or other sizes
Casing pipe 304 stainless steel
Outer diameter of casing pipe Φ8,Φ10,Φ12
Protective device Sheathed wire protection
Insulation resistance at room temperature >100MΩ
response time τ0.5<15s
Conductor specification TST319020
Outer diameter of sheathed wire Φ4
