Testeck Ltd.
Temperature sensor and low smoke halogen free flame retardant high temperature cable manufacturer:www.testeck.com/

|
| Place of Origin: | shenzhen |
| Brand Name: | Testeck |
| Certification: | Iris,EN,CE |
| Model Number: | WDZN(A-D)-001 |
| Minimum Order Quantity: | 1000 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Customized packing |
| Delivery Time: | 5-10 |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 5000 pieces each month |
| Conductor Material: | Tinned Copper | Jacket: | PUR |
|---|---|---|---|
| Rated Temperature Range: | -60℃~200℃ | Color: | Customized |
| Standard: | BS IEC ASTM DIN | Rated Voltage: | 300V |
| Insulation: | PVC Or XLPE | Core: | 2 Core |
| Voltage: | 0.6/1kV | Warranty: | 12 Months |
| High Light: | Power Station Cable 300V,PUR Jacket Power Station Cable,Fire Resistant Control Cable 300V |
||

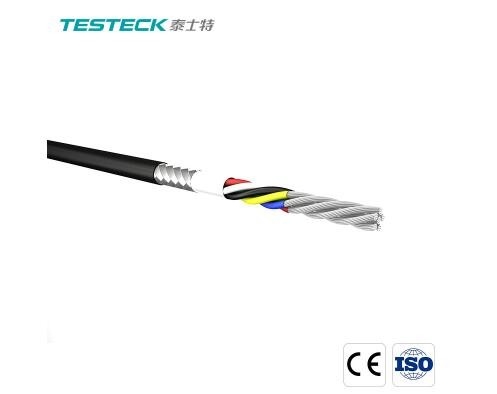

Fire Resistant 300V Power Station Cable Tinned copper Conductor
Power Station Fire Resistant Control Cable
1.Product Introduction
For installation in the ground, indoors, cable trunking and outdoors if increased mechanical protection is required or where high-pulling stresses may occur during installation or operation.
2.Special Features on Request :
• Fire Resistance
• Oil Resistance
• UV Resistance
• Flame Retardant Cat. A, B, C
• Flame Retardant Non Category
• Heat Resistance
• Anti Termite
• Anti Rodent
• Low Smoke Zero Halogen
Note:
Conductor Shape
1.5 - 10 sqmm supplied in solid (re) or non compacted circular stranded (rm) conductor shape
16 sqmm supplied in non compacted circular stranded (rm) conductor shape
Standard Packing
1.5 - 50 sqmm supplied in wooden drum @ 1000 m
70 - 300 sqmm will be suplied in wooden drum on available length
Length Tolerance per drum ± 2
3.Product Parameter (Specification)
No./section mm² Outer diameter mm
|
No./section mm² |
Outer diameter mm |
|||||||
|
3 group |
4 group |
5 group |
6 group |
7 group |
8 group |
9 group |
10 group |
|
|
N x 3 x 0.35 |
8.2 |
8.9 |
10.4 |
9.0 |
9.2 |
11.7 |
14.2 |
15.0 |
|
3 x0.6 |
9.0 |
9.7 |
11.3 |
12.3 |
12.5 |
13.0 |
14.5 |
15.8 |
|
4 x 0.6 |
10.5 |
11.4 |
12.9 |
13.6 |
13.9 |
14.7 |
16.8 |
18.0 |
|
6 x 0.12 |
11.2 |
12.2 |
13.3 |
14.7 |
15.0 |
15.9 |
17.5 |
19.5 |
4.Product Feature And Application
Applied to the connection of terminal box and panel cabinet
5.Product Details
The conductor resistance of each group (3 wires) is balanced and the difference is 0.05 ohm per 100 meters
Core wire withstand voltage 2500V / 5min
Rated voltage 300V
Excellent electrical insulation properties, oil resistance, abrasion resistance, flame retardant and aging resistance
Conductor cross section can choose 0.35-1mm²
The maximum grouping is 10 groups, the minimum grouping is 5 groups, and it can also be customized
6.Deliver,Shipping And Serving
Power station temperature sensor extension cable packing with carton box , We also can customized for you if your order need.
7.FAQ
1, how many production lines do you have?
We have 10 production lines in Shenzhen factory.
2, what product you manufacturer have?
Our factory produce temperature sensor for power station,
Stators and cable for industry.
3,are your manufacturer?
We are manufacturer, our factory localed in Shenzhen China.
4, how do you ensure product quality?
We already built a mechanical,electrical,fire and flame retardant laboratory, professional testing engineers.
