Testeck Ltd.
Temperature sensor and low smoke halogen free flame retardant high temperature cable manufacturer:www.testeck.com/
 |
| Place of Origin: | China |
| Brand Name: | Testeck |
| Certification: | Iris，CRCC，EN |
| Model Number: | AFRPF-200 |
| Minimum Order Quantity: | 1000 |
|---|---|
| Price: | Agree |
| Packaging Details: | Customized packing |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 5000 pieces each month |
| Rated Voltage: | 250V、600V | Temperature Range: | -60℃-200℃ |
|---|---|---|---|
| Executive Standard: | Q/TSTGW005 | Conductor Material: | Bare Copper |
| Insulation: | PTFE Film Wrapping | Shield: | Silver Plated Copper Braid |
| Sheath: | PTFE Film Wrapping | ||
| High Light: | AFRPF High Temp Cable,250V High Temp Cable,AFRPF cable |
||
AFRPF Single Core And Multi-Core Cable Of Type A Wound Polytetrafluoroethylene
we supply AFRPF cable high quality with UL TUV SGS certificated. we devoted ourselves to cable and wire manufacture many years,covering most of Europe and the Americas market. We are expecting become your long term partner in china.

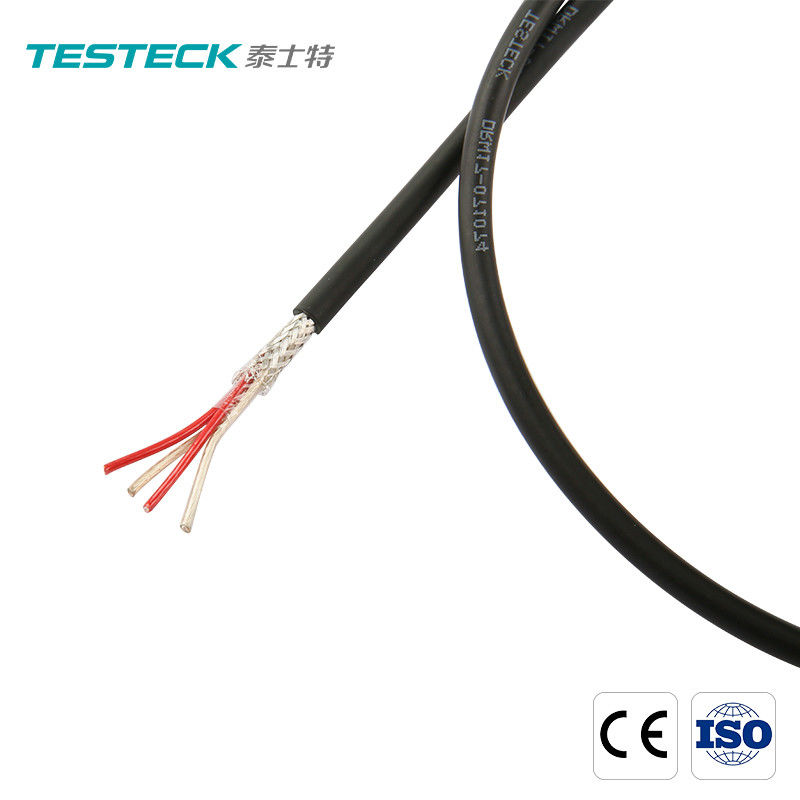

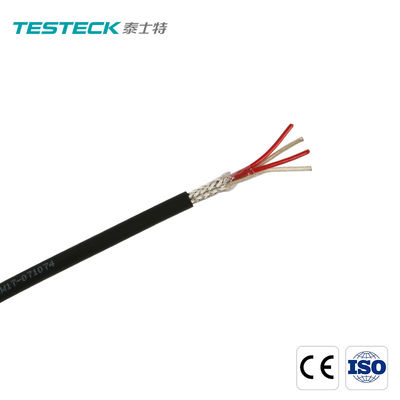

AFRPF cable
1. Product Introduction of the AFRPF cable
AFRPF insulated is excellent high temperature resistant wire. Flame retardant, radiation resistance and good mechanical properties electrical wires. AFRPF insulation material has low smoke, halogen-free, flame retardant properties. Peek high temperature resistance cable used in the aviation industry, petrochemical industry, power stations and rail transit industry
2. Product Parameter (Specification) of the AFRPF cable
| Section Area mm2 | Conductor construction NO.×mm | Insulation Thickness mm | Outer Diameter mm |
| 0.014 | 7×0.05 | 0.15 | 0.45 |
| 0.035 | 7×0.08 | 0.15 | 0.54 |
| 0.05 | 1×0.26 | 0.17 | 0.6 |
| 0.07 | 1×0.30 | 0.2 | 0.7 |
| 0.08 | 7×0.12 | 0.2 | 0.76 |
| 0.12 | 7×0.15 | 0.2 | 0.85 |
| 0.2 | 7×0.20 | 0.25 | 1.1 |
| 0.35 | 19×0.16 | 0.25 | 1.3 |
| 0.5 | 19×0.18 | 0.25 | 1.4 |
| 0.75 | 19×0.23 | 0.275 | 1.7 |
| 1 | 19×0.26 | 0.25 | 1..8 |
| 1.2 | 19×0.28 | 0.3 | 2 |
| 1.5 | 19×0.32 | 0.3 | 2.2 |
| 2 | 19×0.37 | 0.3 | 2.45 |
| 2..5 | 19×0.41 | 0.4 | 6.86 |
| 4 | 37×0.37 | 0.4 | 3.38 |
3. Product Feature And Application of the AFRPF cable
AFRPF cable has excellent resistance to high temperature, low temperature resistance, excellent electrical insulation performance,
high voltage resistance, aging resistance, long service life and soft and easy to install.
4. Product Details of the AFRPF cable
AFRPF
Widely used in lighting, household appliances, , lamps.electric appliances, instrumentation, motor wiring and electronics and other electrical wires. gas appliances and other high-temperature environment.
6. FAQ
1, are your manufacturer?
We are manufacturer, our factory localed in Shenzhen China.
2, what product you manufacturer have?
Our factory produce temperature sensor for power station,
Stators and cable for industry.
3, how many production lines do you have?
We have 10 production lines in Shenzhen factory.
4, how do you ensure product quality?
We already built a mechanical,electrical,fire and flame retardant laboratory, professional testing engineers.
5, can you send samples?
Yes, we will supply sample before your make the order.
