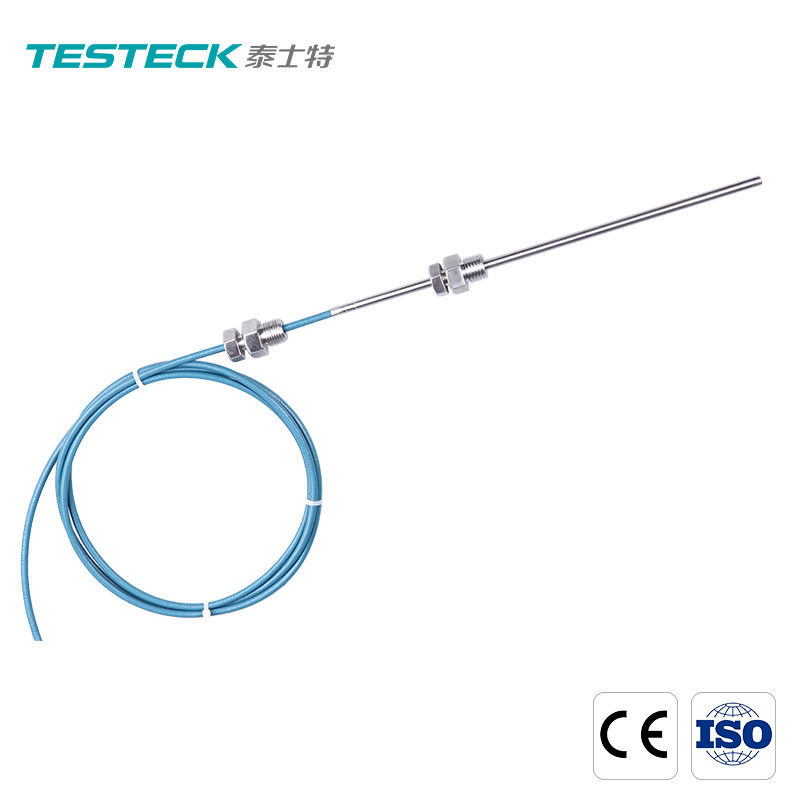

Bearing Thermocouple Rtd Pt100 With Sealing Wire Oil Leakage Proof

Bearing Thermocouple Rtd Pt100 With Sealing Wire Oil Leakage Proof

  • Bearing Thermocouple Rtd Pt100 With Sealing Wire Oil Leakage Proof
Bearing Thermocouple Rtd Pt100 With Sealing Wire Oil Leakage Proof
Product Details:
Place of Origin: China
Brand Name: Testeck
Certification: TY-C11
Model Number: S series
Payment & Shipping Terms:
Minimum Order Quantity: 10
Packaging Details: Customized packing
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 5000 pieces each month
Contact Now
Detailed Product Description
Graduation: PT100 Temperature Measuring Range: -50~180℃
Wire System: Three Wire System Casing Pipe: Non Magnetic Stainless Steel
Protective Device: With Corrugated Pipe Protection Response Time: τ0.5<15s
High Light:

Bearing Thermocouple Rtd Pt100


Rtd Bearing Thermocouple


bearing rtd pt100

Bearing Thermocouple Rtd Pt100 With Sealing Wire Oil Leakage Proof


Spindle Seal Temperature Sensor Industrial Design Support Customization


For the temperature measurement of the spindle seal of the water turbine, it can realize the outgoing of single lines of the oil groove wall and the water tank wall without connection required. It can strengthen the stability of the temperature measurement. At the same time, it can be reliably sealed on the cable with a sealing grade of IP68,30 bar.


1. Product Introduction of the S series temperature sensor - spindle seal

The chip-type temperature sensing element adopts laser welding technology to prevent the solder joints from loosening or falling off in case of strong vibration, which effectively improves the stability of measurement.Movable ferrule connection mode is available. The wire does not need to rotate with the probe during installation, and the insertion depth of the probe can be adjusted appropriately.

When a single cable sealing bolt goes out, connection will not be required, and reliable sealing is realized at the same time.Oil and high temperature resistant shielded conductor, jacket and insulating layer are made of special polymers, which can work in the oil temperature of 100℃ for eight years. The copper-plated silver core has good conductivity, and the equilibrium degree of each hundred meters is less than 0.05Ω.


2. Product Parameter (Specification) of the S series temperature sensor - spindle seal

Specifications Parameters
Testeck temperature measurement thermal resistor of spindle seal S12Pt100-100-10-3131/F02B500
Temperature measuring range -50~180℃
Wire system Three wire system
Process connection Movable ferrule thread G1 / 2 or other dimensions
Casing pipe Non magnetic stainless steel
Outer diameter of casing pipe Φ8,Φ10,Φ12
Protective device With corrugated pipe protection
Insulation resistance at room temperature >100MΩ
Response time τ0.5<15s
Conductor specification TST619015
Outer diameter of corrugated pipe Φ8.4


3. Product Feature And Application of the S series temperature sensor - spindle seal

It is applied in monitoring the temperature of the spindle seal of the generator set of water turbine.


4. Product Details of the S series temperature sensor - spindle seal


The cable insulation layer is made of high-temperature and tension resistant materials.

In particular, magnetization resistance, temperature resistance and insulation performance shall be taken into consideration for packaging materials.


5. delivery, shipment and service of temperature sensors

The temperature sensor is packed in cartons. If you need, we can also make it for you.


6. FAQ

1, are your manufacturer?

We are manufacturer, our factory localed in Shenzhen China.

2, what product you manufacturer have?

Our factory produce temperature sensor for power station,

Stators and cable for industry.

3, how many production lines do you have?

We have 10 production lines in Shenzhen factory.

4, how do you ensure product quality?

We already built a mechanical,electrical,fire and flame retardant laboratory, professional testing engineers.

5, can you send samples?

Yes, we will supply sample before your make the order.
