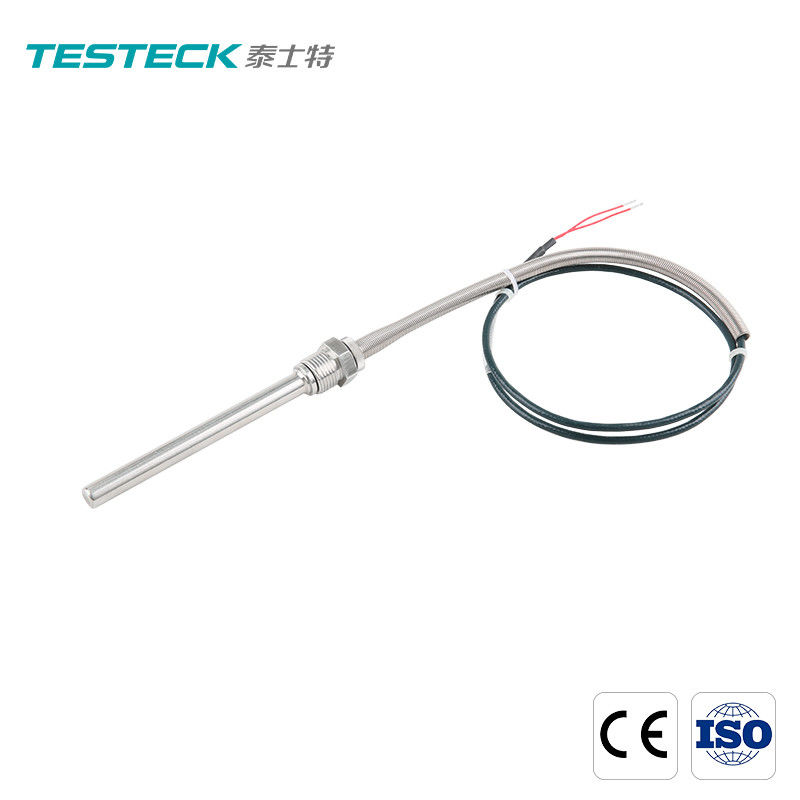

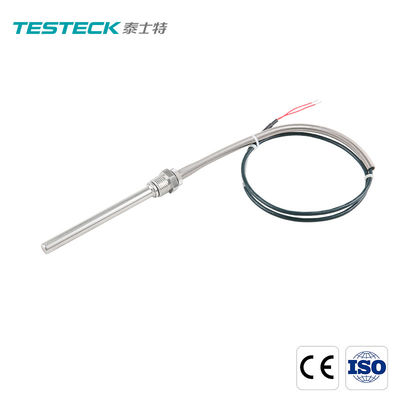

Stainless Steel Bearing Rtd Pt100 Three Wire Temperature Sensor

Stainless Steel Bearing Rtd Pt100 Three Wire Temperature Sensor

  • Stainless Steel Bearing Rtd Pt100 Three Wire Temperature Sensor
Stainless Steel Bearing Rtd Pt100 Three Wire Temperature Sensor
Product Details:
Place of Origin: China
Brand Name: Testeck
Certification: CE,Iris
Model Number: TY-C
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Agree
Packaging Details: Customized packing
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 5000 pieces each month
Contact Now
Detailed Product Description
Pipe Material: 310S) 201, 304, 316, Gh3039, Etc Material: Non Magnetic Stainless Steel
Temperature Measuring Range: -100~450℃ Process Connection: Movable Ferrule Thread NPT1/4 Or Casing Pipes With Other Sizes
Insulation Resistance At Room Temperature: >100MΩ Response Time: τ0.5<15s
High Light:

Stainless Steel Bearing Rtd Pt100

,

Rtd Pt100 Three Wire

,

Pt100 Three Wire Temperature Sensor

Stainless Steel Bearing Rtd Pt100 Three Wire Temperature Sensor



Stainless Steel Probe Of 3-Wire Temperature Sensor



In view of the frequent occurrences of disconnection at the root of the temperature sensor of the bearing bush of the water turbine, especially the spring pipe protective device is installed at the end of the sensor probe. The spring and the sensor are connected rigidly and reliably to enhance the protection of the conductor and prevent the disconnection at the root of the sensor in the oil groove.



S series temperature sensor - spring protection



1. Product Introduction of the S series temperature sensor - spring protection

The chip-type temperature sensing element adopts laser welding technology to prevent the solder joints from loosening or falling off in case of strong vibration, which effectively improves the stability of measurement. Movable ferrule connection mode is available. The wire does not need to rotate with the probe during installation, and the insertion depth of the probe can be adjusted appropriately.

The spring protective device can effectively bear the load of the joint of rigid material and flexible material and prevent the conductor from breaking when the tail conductor swings frequently.Oil and high temperature resistant shielded conductor, jacket and insulating layer are made of special polymers, which can work in the oil temperature of 100℃ for eight years. The copper-plated silver core has good conductivity, and the equilibrium degree of each hundred meters is less than 0.05Ω.



2. Product Parameter (Specification) of the S series temperature sensor - spring protection

Specifications Parameters

Testeck spring pipe protection temperature sensor

Temperature measuring range -50~200℃
Wire system Three wire system
Process connection Movable ferrule thread G1/2 or casing pipes with other sizes
Material Non magnetic stainless steel
Outer diameter of casing pipe Φ8,Φ10,Φ12
Protective device Spring
Insulation resistance at room temperature >100MΩ
response time τ0.5<15s
Conductor specification TST619015
Outside diameter of spring pipe Φ9.0-11.5


3. Product Feature And Application of the S series temperature sensor - spring protection

It is applied in monitoring the temperature of thrust, guide bearing pad and oil of water-turbine generator set.



4. Product Details of the S series temperature sensor - spring protection

The cable insulation layer is made of high-temperature and tension resistant materials.

In particular, magnetization resistance, temperature resistance and insulation performance shall be taken into consideration for packaging materials.



5. delivery, shipment and service of temperature sensors

The temperature sensor is packed in cartons. If you need, we can also make it for you.



6. FAQ

1, are your manufacturer?

We are manufacturer, our factory localed in Shenzhen China.

2, what product you manufacturer have?

Our factory produce temperature sensor for power station,

Stators and cable for industry.

3, how many production lines do you have?

We have 10 production lines in Shenzhen factory.

4, how do you ensure product quality?

We already built a mechanical,electrical,fire and flame retardant laboratory, professional testing engineers.

5, can you send samples?

Yes, we will supply sample before your make the order.
