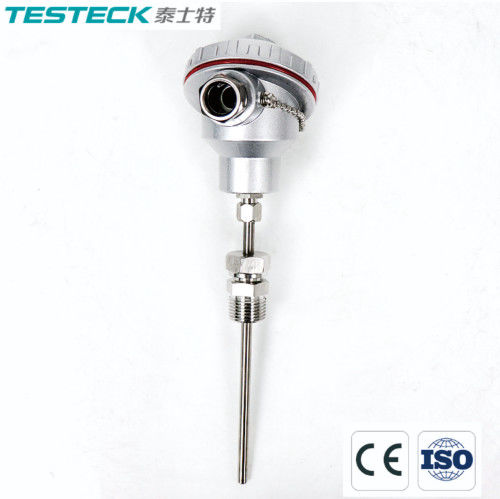

24VDC 4-20mA Adjustable Temperature Transmitter Integrated Temperature Sensor PT100

24VDC 4-20mA Adjustable Temperature Transmitter Integrated Temperature Sensor PT100

24VDC 4-20mA Adjustable Temperature Transmitter Integrated Temperature Sensor PT100
24VDC 4-20mA Adjustable Temperature Transmitter Integrated Temperature Sensor PT100
24VDC 4-20mA Adjustable Temperature Transmitter Integrated Temperature Sensor PT100
Product Details:
Place of Origin: China
Brand Name: Testeck
Certification: CE,ISO
Model Number: TY-S09
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Agree
Packaging Details: Customized packing
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 5000 pieces each month
Contact Now
Detailed Product Description
Ambient Temperature: -40℃~85℃ Output Signal: 4~20mA
DC Power Supply: 12-30V DC, Rated Voltage 24VDC Conversion Accuracy: ≤ 0.2%

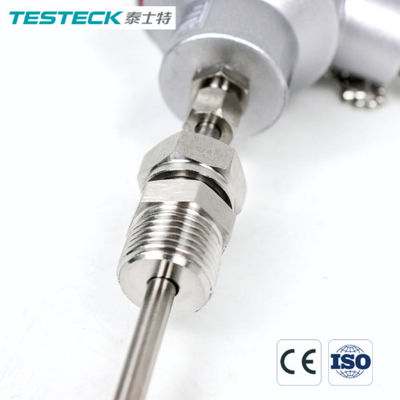

Transmission Mode: Two-wire System Material Of Temperature Probe Rod: Stainless Steel Material
High Light:

20mA Adjustable Temperature Transmitter

,

24VDC Adjustable Temperature Transmitter

,

PT100 Integrated Temperature Sensor



Smart Adjustable Temperature Transmitter 4-20mA Integrated Temperature Sensor PT100



This product is customized, please contact our engineers to give you the best advice.


Product Description

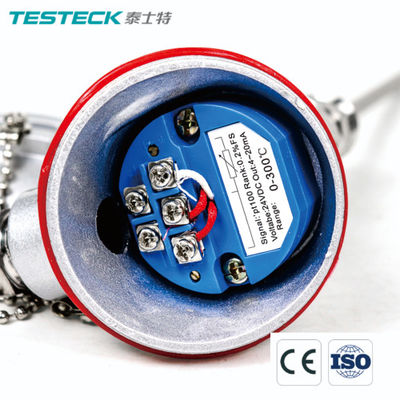

The integrated structural thermocouple and thermal resistance products with the function of temperature measurement and transmission can be realized by putting the two wire system modules of transmitter into the connection box of the thermocouple and thermal resistance products,such as normal packaged type,explosion proof type and sheathed type,the integration production can be used to measure the temperature of liquid,gas or steam medium directly.It receives the input signals of the thermocouple and thermal resistance with standard graduation mark and generates the linear 4-20mA DC by the measured temperature.The temperature are measured and controlled by the contact of the DC output signal and computer system.This temperature transmitter can be widely used to the scientific research field of the industrial sectors, such as electric power, metallurgy, petroleum, chemical engineering, aviation, mechanics, light industry, textile, medicine, food and national defense.

24VDC 4-20mA Adjustable Temperature Transmitter Integrated Temperature Sensor PT100 0

Product Paramenters

Input signal Thermocouple:B,S,K,E,J,T
Thermal resistance:Pt100,Cu50
Output signal 4-20mA DC signal linear with temperature within range


Basic accuracy
Thermocouple temperature transmitter ±0.5%FS
Thermal resistance temperature transmitter ±0.1%FS
Transmission mode Two-wire system
DC power supply 12-30V DC, rated voltage 24VDC



Load impedance
Limit load of load resistance calculated
RL(max)=50(U-12)
In the formula, transmitter is DC power voltage
RL(max)=50(24-12)=600Ω



Normal operating environments
Ambient temperature:-25ºC~85ºC(special requiement -40ºC~90ºC)
Relative humidity:5%~95%
Mechanical vibration:10~150HZ, A=0.15mm
No medium caused corrosion to transmitter in the ambient air


Electromagnet interference
When the radio transmitter of 20~1000MHz and 5W with 0.5 meters away from the transmitter works, it shall vary ±0.15%FS


Temperature drift
When the enviroment temperature varies by 1%, the zero point varies ±0.15% FS and the measuring range changes ±0.01%FS



Recommended measuring range of thermocouple and thermal resistance

Type of temperature sensor Graduation mark Recommended measuring range(ºC)





Thermocouple
B 600~1600 800~1600 900~1800 1000~1600 1000~1800
S 0~1300 0~1600 400~1600 600~1600 800~1400 800~1600 900~1400 1000~1400
K 0~300 0~1600 0~800 0~1000 0~1300 400~800 400~1300 600~1300
E 0~200 0~400 0~600 0~800 200~600 300~500 400~600
J 0~200 0~400 0~600 300~600
T -200~0 -200~300 0~200 0~300
Platinum thermal resistance Pt100 -200~+50 -100~+50 -50~+50 -50~+100 0~50 0~100 0~150 0~200 0~300 0~400 0~500 200~400 200~500
Copper thermal resistance Cu50 -50~+50 -50~+100 -50~+150 0~50 0~100 0~+150
