Ss304 Bearing Temperature applied in monitoring thrust pad and oil temperature of water turbine. In response to the oil flow impact under complex conditions, the sheathed wire conductor protection device can prevent the hard damage caused by mechanical vibration.

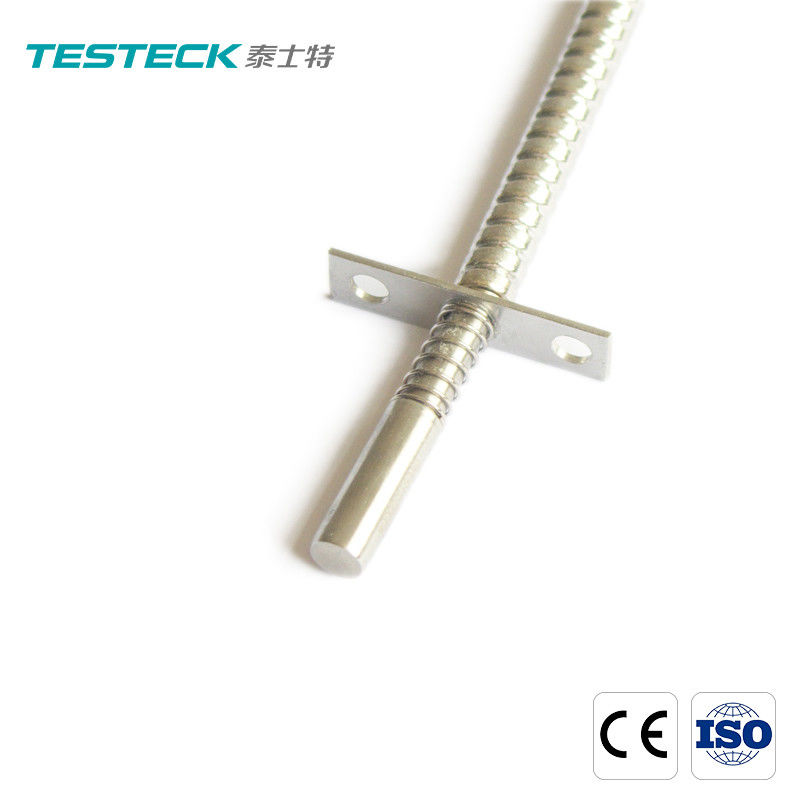

Ss304 Bearing Temperature--sheathed wire protection
1.Product Introduction of the S series temperature sensor--sheathed wire protection
The chip-type temperature sensing element adopts laser welding technology to prevent the solder joints from loosening or falling off in case of strong vibration, which effectively improves the stability of measurement.
Movable thread connection mode is available. The conductor does not rotate with the probe during installation.
The protective device of sheathed wire conductor can effectively bear the load of the joints of rigid material and flexible material and prevent the conductor from breaking when the tail conductor swings frequently
Oil and high temperature resistant shielded conductor, jacket and insulating layer are made of special polymers, which can work in the oil temperature of 100 ℃ for five years.
The copper-plated silver core has good conductivity, and the equilibrium degree of each hundred meters is less than 0.05Ω.
2.Product Parameter (Specification) of the Ss304 Bearing Temperature--sheathed wire protection
S08Pt100-200-X-3113/C01K600 Testeck sheathed wire integrated thermistor
Temperature measuring range -50～200℃
Temperature sensing element PT100 class a accuracy
Wire system Three wire system
Process connection Movable ferrule thread M16×2 or other sizes
Casing pipe 304 stainless steel
Outer diameter of casing pipe Φ8,Φ10,Φ12
Protective device Sheathed wire protection
Insulation resistance at room temperature >100MΩ
response time τ0.5＜15s
Conductor specification TST319020
Outer diameter of sheathed wire Φ4
3.Product Feature And Application of the S series temperature sensor--sheathed wire protection
It is applied in monitoring of thrust pad, guide bearing and Ss304 Bearing Temperature of water turbine generator set.
4.Product Details of the S series temperature sensor--sheathed wire protection
The Ss304 Bearing Temperature insulation layer is made of high-temperature and tension resistant materials.
In particular, magnetization resistance, temperature resistance and insulation performance shall be taken into consideration for packaging
||Testeck sheathed wire integrated thermistor
|Temperature measuring range
|Temperature sensing element
||PT100 class a accuracy
||Three wire system
||Movable ferrule thread M16×2 or other sizes
||304 stainless steel
|Outer diameter of casing pipe
||Sheathed wire protection
|Insulation resistance at room temperature
|Outer diameter of sheathed wire
