Testeck Ltd.
Temperature sensor and low smoke halogen free flame retardant high temperature cable manufacturer:www.testeck.com/
Place of Origin: | China |
Brand Name: | Testeck |
Certification: | CRCC ,CE |
Model Number: | Soil Temperature Sensor |
Minimum Order Quantity: | 15 |
---|---|
Price: | Negotiable |
Packaging Details: | customized packing |
Delivery Time: | 5-10 days |
Payment Terms: | T/T, Western Union, MoneyGram, L/C, |
Supply Ability: | 4000 pieces each month |
Temperature Resistance Range: | -50~180℃ | Insulation Grade: | Class F (155 ℃), H (180 ℃) |
---|---|---|---|
Number Of Components: | Soil Temperature Sensor | Graduation: | PT100 / K / E / T (customized) |
Usage: | Humidity Soil | Theory: | Temperature Recorder |
Accuracy Grade: | Class A /B | Withstand Voltage: | 1000~2500VAC/min |
Output: | Analog Sensor | ||
High Light: | 2500V AC Soil Temperature Sensor,PT100 Soil Temperature Sensor,PT100 Thermocouple Temperature Sensor |

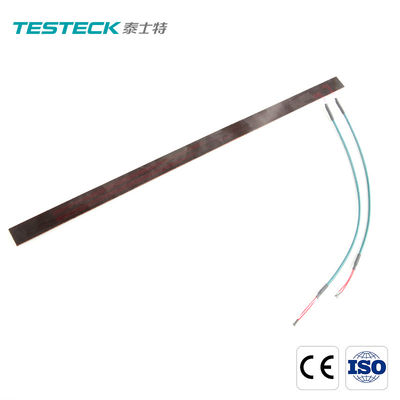

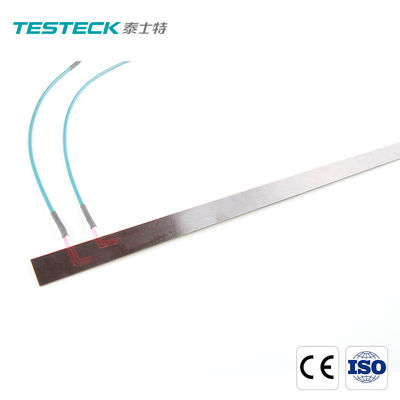

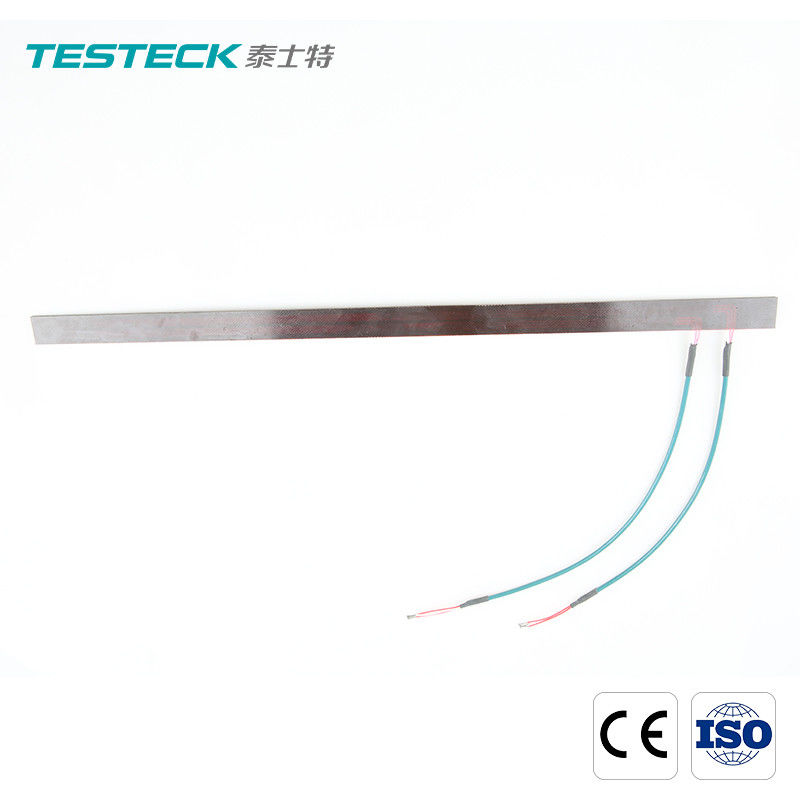

Thermocouple Soil Temperature Sensor Custom Graduation J K PT100
Thermocouple Soil Temperature Sensor
Product features
Ⅲ. Product application
It is applied to the temperature monitoring of stator winding, iron core and pressure finger of large and medium-sized motor generator
Ⅳ. Product Parameter (Specification) of the Chip type stator temperature sensor
Model | Chip type stator temperature sensor |
Number of components | Multiple temperature measuring points are available |
Temperature measuring range | -50~180℃ |
Wire system | Three wire system |
Insulation grade | Class F (155 ℃), H (180 ℃) |
Accuracy grade | Class A /B |
Maximum excitation current | 5mA |
Insulation resistance at room temperature | >100MΩ |
Withstand voltage | 1000~2500VAC/min |
Pressure resistance | 2~4MPa |
Lead longitudinal pressure resistance | 15~200N |
Tightness | Immerse in water for 1H at ambient temperature |
Thermal cycle | The change value of resistance at 0 ℃ shall not exceed 0.12 Ω |
Application | It is applied in monitoring the temperature of generator stator winding, iron core and pressure finger. |
Ⅵ.FAQ
1, are your manufacturer?
We are manufacturer, our factory localed in Shenzhen China.
2, what product you manufacturer have?
Our factory produce temperature sensor for power station,
Stators and cable for industry.
3, how many production lines do you have?
We have 10 production lines in Shenzhen factory.
4, how do you ensure product quality?
We already built a mechanical,electrical,fire and flame retardant laboratory, professional testing engineers.
5, can you send samples?
Yes, we will supply sample before your make the order.
Ⅶ. delivery, shipment and service of temperature sensors
The temperature sensor is packed in cartons. If you need, we can also make it for you.
Contact Person: ALix
Tel: 13689565278
