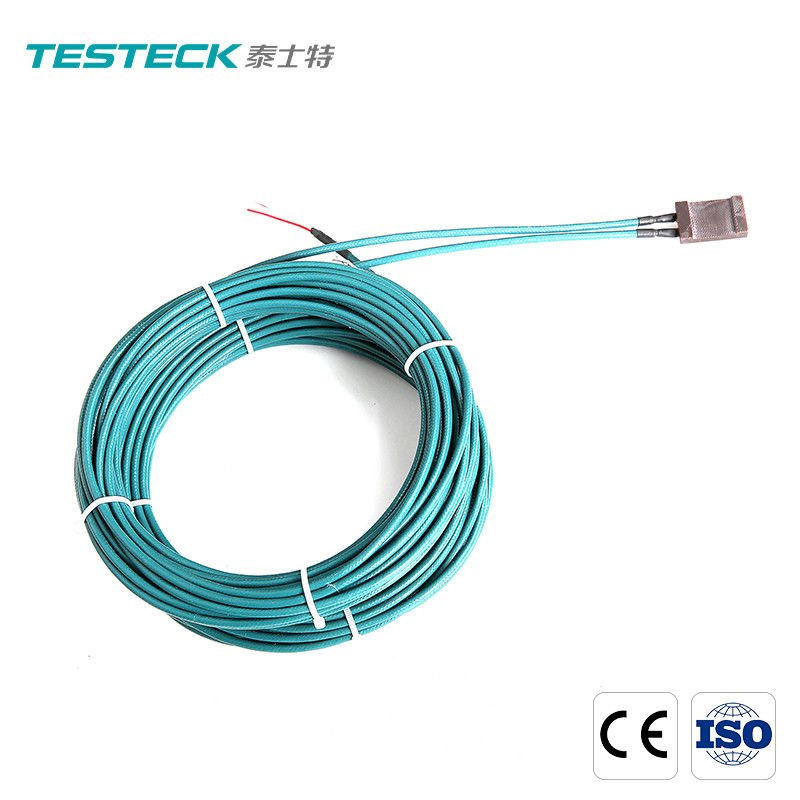

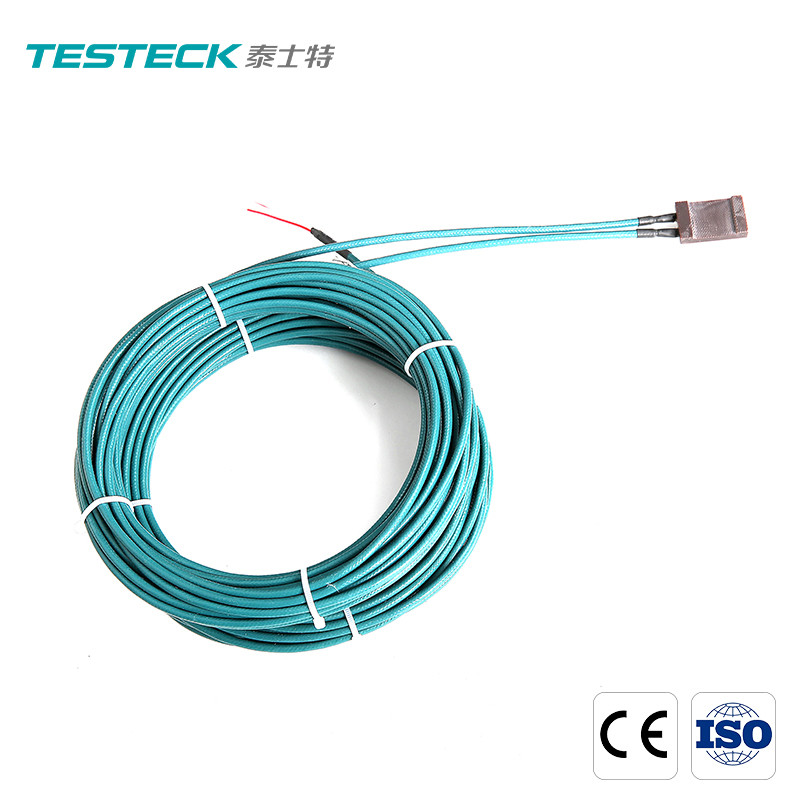

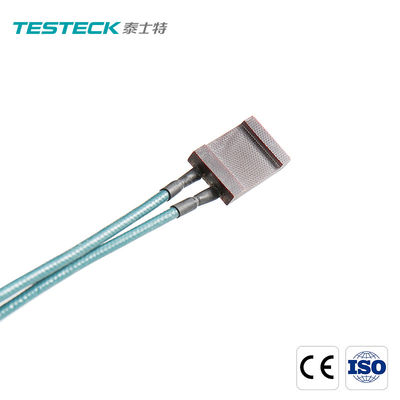

PT100 Integrated Forming Stator Temperature Sensor Monitoring

PT100 Integrated Forming Stator Temperature Sensor Monitoring

PT100 Integrated Forming Stator Temperature Sensor Monitoring
PT100 Integrated Forming Stator Temperature Sensor Monitoring
PT100 Integrated Forming Stator Temperature Sensor Monitoring
Product Details:
Place of Origin: China
Brand Name: Testeck
Certification: CE,ISO
Model Number: TY-Cseries
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Agree
Packaging Details: customized packing
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 5000 pieces each month
Contact Now
Detailed Product Description
Temperature Resistance Range: -40℃~180℃ Insulation Grade: Class F Or H
Number Of Components: Multiple Temperature Measuring Points Insulation Strength: 1000-2500VAC/min
Graduation: PT100 / K / E / T (customized) Pressure Resistant: 2-4 MPa
High Light:

Integrated Forming Stator Temperature Sensor

,

PT100 Stator Temperature Sensor

,

Stator temperature monitoring sensor

PT100 Integrated Forming Stator Temperature Sensor Monitoring



Intergrated Forming Stator Temperature Sensor Temperature Monitoring



High-temperature and high-pressure integrated forming temperature sensor is usually used to measure the stator temperature of large and medium-sized generators. Based on the embedded thermistor temperature measuring element for motor, advanced insulating material processing technology is used to process the insulation filler strips of various shapes, and the patent technology of integrated high-temperature and high-pressure forming is used for one-time forming. After forming, the temperature measuring element (embedded thermal resistor for motor) is integrated with the insulation material to effectively avoid the influence of uncertain factors in the secondary assembly and packaging of the main engine plant. The high-temperature and high-pressure integrated forming temperature sensor features of high accuracy, high stability, high-temperature resistance, high-pressure resistance, high insulation, anti-corona, anti-magnetization, etc. Its designed service life is more than 15 years.



Integrated forming stator temperature sensor



1. Product Introduction of the Integrated forming stator temperature sensor

High-temperature and high-pressure integrated forming is available. After forming, the temperature measuring element (embedded thermal resistor for motor) are integrated with insulation material.It feature high precision, high stability and high reliability.



2. Product Parameter (Specification) of the Integrated forming stator temperature sensor

Parameter item Parameter index
High temperature and high pressure integrated molding
Temperature resistance range ℃ -40℃~180℃
Insulation grade Class F or H
Number of components Multiple temperature measuring points
Insulation resistance at room temperature m Ω / 500VDC ≥100
Insulation strength 1000-2500VAC/min
Pressure resistant MPa 2-4
Longitudinal tension resistance of lead n 50-200n( related to structure)

1. Application parameters and indicators are different. Please refer to each application for details.

2. Please refer to the technical parameters in “embedded thermal resistor for motor” for other technical indexes.



3. Product Feature And Application of the Integrated forming stator temperature sensor

It is applied in monitoring the temperature of stator winding, iron core and pressure finger of large and medium-sized generators.



4. Product Details of the Integrated forming stator temperature sensor



The cable insulation layer is made of high-temperature and tension resistant materials.

In particular, magnetization resistance, temperature resistance and insulation performance shall be taken into consideration for packaging materials.



5. delivery, shipment and service of temperature sensors

The temperature sensor is packed in cartons. If you need, we can also make it for you.



6. FAQ

1, are your manufacturer?

We are manufacturer, our factory localed in Shenzhen China.

2, what product you manufacturer have?

Our factory produce temperature sensor for power station,

Stators and cable for industry.

3, how many production lines do you have?

We have 10 production lines in Shenzhen factory.

4, how do you ensure product quality?

We already built a mechanical,electrical,fire and flame retardant laboratory, professional testing engineers.

5, can you send samples?

Yes, we will supply sample before your make the order.
