| Type: | PT100 | Ambient Temperature In Application: | －50～200℃ |
|---|---|---|---|
| Structure Of Sensor: | Single/Double | Installation Method: | Contact Customer Service |
| Probe Diameter: | Contact Customer Service | Measuring Range: | PT100 -200～450℃ CU50 -50～150℃ K 0～600℃ E 0～400℃ |
| High Light: | Pt1000 RTD Temperature Sensor,pt1000 rtd sensor,movable thread RTD Temperature Sensor |
||

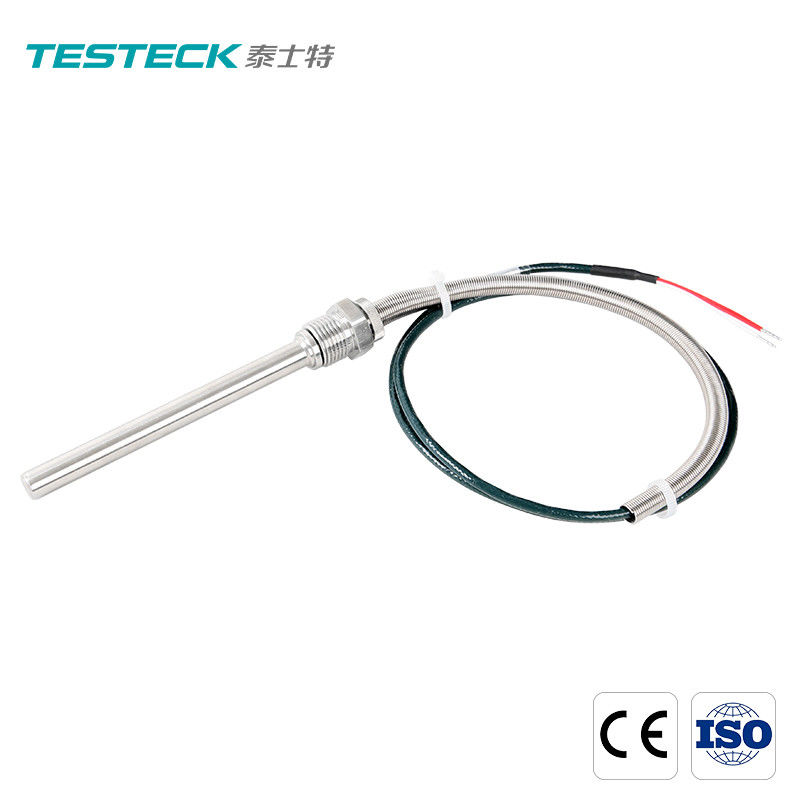

Integrated Pt1000 RTD Temperature Sensor For Machinery Power Food
Intergrated RTD Widely Used In Machinery Power Food And Other Fields
Integrated RTD measures temperature based on the characteristic of changing resistance of a substance along with temperature. When the medium being measured shows a temperature gradient, the temperature measured is the average temperature of the medium in the range where the temperature sensing element is located.
Industrial integrated RTD is used as a temperature measurement sensor, usually used in conjunction with temperature transmitters, regulators and display instruments to form a process control system. It can directly measure or control the temperature of liquid, steam, gas media and solid surface in various production processes.
1. Integrated RTD
Industrial integrated RTD is mainly composed of temperature sensing element, temperature probe, transition protection and signal cable, and equipped with installation and fixing devices.
1 Temperature sensing element: imported Pt100 temperature sensing element of thin film platinum resistor.
2 Protective tube: According to the type of thermal resistor, the condition of the measured medium and the temperature to be measured, the tubes made of different materials are selected. The tubes of thermal resistor are generally made of carbon steel, various grades of stainless steel, alloy steel and other materials.
3 Installation and fixing device: The installation and fixing device is for users to install and fix thermal resistor. It is divided into various forms, such as no fixing device, fixed thread, movable flange and fixed flange.
For more non-standard customized products, please consult Shenzhen Testeck Science and Technology Co., Ltd.
2. Product Parameters
| Specifications | Parameters |
| TY-C03 | Integrated RTD |
| Type | Pt100, Pt1000 |
| Accuracy class | Class A, B |
| Ambient temperature in application | －50～200℃ |
| Wire system | Two-wire, three-wire, and four-wire |
| Structure of sensor | Single/Double |
| Material of probe | SUS304, SUS316, SUS321 (customer specified) |
| Process connection | Fixed thread, movable thread, movable sleeve and thread, etc. (customer specified) |
3. Application of Company Products
It is widely used in industrial sectors and scientific and technological fields, including petroleum, chemical, machinery, metallurgy, electric power, textile, food, etc.
4. Product Structure
