Testeck Ltd.
Temperature sensor and low smoke halogen free flame retardant high temperature cable manufacturer:www.testeck.com/

|
| Place of Origin: | China |
| Brand Name: | Testeck |
| Certification: | CE，ISO |
| Model Number: | TY-C |
| Minimum Order Quantity: | 10 |
|---|---|
| Price: | Agree |
| Packaging Details: | Customized packing |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 5000 pieces each month |
| Product Name: | Surface Temperature Measurement | Type: | Pt100(customized) |
|---|---|---|---|
| Accuracy Class: | 2B、B、A、1/3BLevel Optional | Ambient Temperature In Application: | -100 - 200℃ (can Be Customized According To Actual Temperature Resistance) |
| Material Of Probe: | SUS304, SUS316, SUS321 (customer Specified) | Probe Size: | Contact Customer Service |
| High Light: | SUS304 Rtd Type Temperature Sensor,SUS316 Rtd Type Temperature Sensor,SUS304 Pt100 Rtd |
||

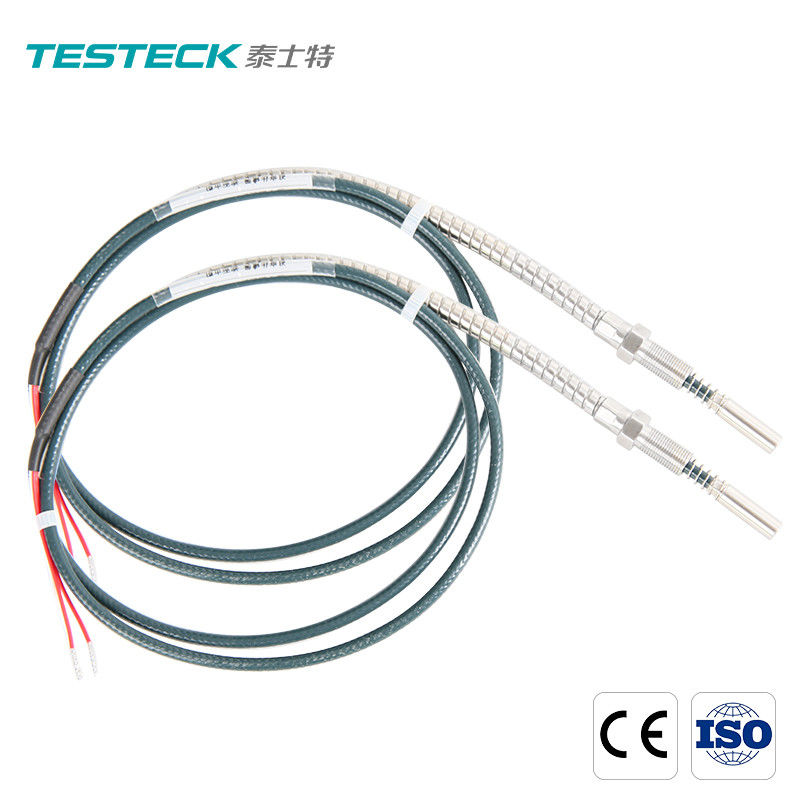

SUS304 Rtd Type Temperature Sensor End Thermal Resistance Accurate Measurement
End Thermo Resistance Accurate Measurement Long Service Life

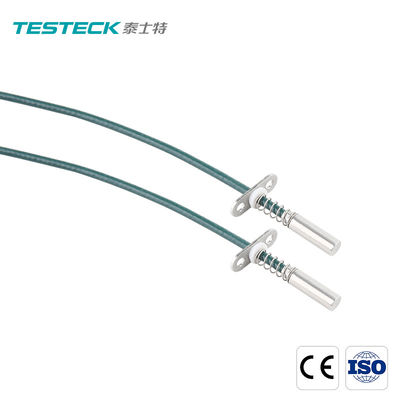

The end-surface thermal resistor is composed of temperature measuring element, outer protective tube, compression spring, process connection device, and shielding extension. It is mainly used for bearing temperature measurement of steam turbine thrust bushes, water pipes of double water-cooled generators, and other mechanical equipment.
1. End-face Thermal Resistor
The industrial end-face thermal resistor is mainly composed of temperature measuring element, external protection tube, compression spring, process connection device, shield extension, and is equipped with various installation and fixing devices.
1 Temperature sensing element: imported Pt100 temperature sensing element of thin film platinum resistor.
2 Protective tube: According to the type of thermal resistor, the condition of the measured medium and the temperature to be measured, the tubes made of different materials are selected. The tubes of thermal resistor are generally made of carbon steel, various grades of stainless steel, alloy steel and other materials.
3 Installation and fixing device: The installation and fixing device is for users to install and fix thermal resistor. It is divided into various forms, such as compressed plate, flexible thread, etc.
For more non-standard customized products, please consult Shenzhen Testeck Science and Technology Co., Ltd.
2. Product Parameters
| Specifications | Parameters |
| TY-C | End-face thermal resistor |
| Type | Pt100, Pt1000 |
| Accuracy class | Class A, B |
| Ambient temperature in application | －50～200℃ |
| Wire system | Two-wire, three-wire, and four-wire |
| Structure of sensor | Single/Double |
| Material of probe | SUS304, SUS316, SUS321 (customer specified) |
| Process connection | Compressed plate, flexible thread, etc. (customer specified) |
3. Application of Company Products
It is widely used in industrial sectors and scientific and technological fields, including petroleum, chemical, machinery, metallurgy, electric power, textile, food, etc.
4. Product Structure
