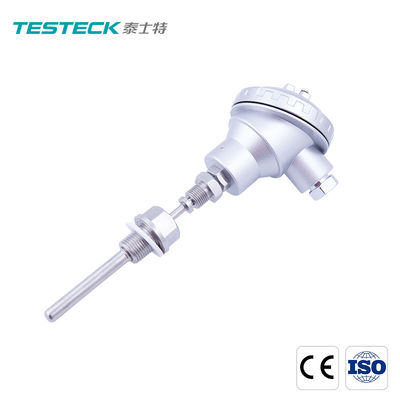

IP57 High Temperature RTD Connecting Box Resistance Temperature Device

IP57 High Temperature RTD Connecting Box Resistance Temperature Device

  • IP57 High Temperature RTD Connecting Box Resistance Temperature Device
IP57 High Temperature RTD Connecting Box Resistance Temperature Device
Product Details:
Place of Origin: China
Brand Name: Testeck
Certification: CE,ISO
Model Number: TY-S01
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Agree
Packaging Details: Customized packing
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 5000 pieces each month
Contact Now
Detailed Product Description
Product Name: PT100 Temperature Sensor Type: PT100 K / E / Cu50, Etc
Accuracy Class: 2B、B、A、1/3BLevel Optional Ambient Temperature In Application: -50 -- 200℃ (can Be Customized According To Actual Temperature Resistance)
Material Of Probe: Default 304 Stainless Steel (please Contact Customer Service For Other Information) Installation Method: Contact Customer Service
Probe Length: According To Customer Requirements
High Light:

IP57 High Temperature RTD


IP67 High Temperature RTD


IP57 Resistance Temperature Device

IP57 High Temperature RTD Connecting Box Resistance Temperature Device


RTD Connecting Box Industrial Design Accurate Measurement


TY-S01 series thermocouple is used as a temperature sensor, usually in combination with display instruments, recording instruments and electronic regulators. It can directly measure the surface temperature of -50-600°C of liquid, steam, gas and solid surface in production processes.


Working principle


TY-S series thermocouple is composed of two different conductor materials. The temperature difference between the measuring terminal and the reference terminal will result in thermoelectric potential, and the working instrument will display the corresponding temperature value.


1. TY-S series thermocouple

The industrial thermocouple is mainly composed of junction box, protective tube, terminal block, insulating ceramic column and temperature sensing element, and equipped with various installation and fixing devices.

1 ype of thermocouple: platinum rhodium 30-platinum rhodium 6, platinum rhodium 10-platinum, nickel chromium-nickel silicon, nickel chromium-copper nickel.

2 Protective tube: According to the type of thermocouple, the condition of the measured medium and the temperature to be measured, the tubes made of different materials are selected. The tubes of thermocouple are generally made of carbon steel, various grades of stainless steel, alloy steel and other materials.

3 Junction box: The junction box of thermocouple is used to connect the display instrument of temperature sensing element, generally made of aluminum alloy and stainless steel. It is divided into explosion-proof, waterproof and small splash-proof structures.

4 Wiring board: The wiring board of thermocouple is generally made of ceramics and installed in the junction box. It is the signal output terminal of the thermocouple, and divided into two types: single-branch type and double-branch type.

5 Installation and fixing device: The installation and fixing device is for users to install and fix thermocouple. It is divided into various forms, such as no fixing device, fixed thread, movable flange and fixed flange.

Nominal pressure

Generally it refers to the static external pressure that the tube can withstand without breaking under the working temperature. In fact, it is not only related to the tube material, diameter, and wall thickness, but also related to the structure, installation method, insertion depth, and the flow rate and type of the medium to be measured.

For more non-standard customized products, please consult Shenzhen Testeck Science and Technology Co., Ltd.


2. Product parameters

For the thermocouple, the ambient temperature is 20±15℃, the relative humidity is not more than 80%, and the test voltage is 500±50V (DC). The insulation resistance between the electrode and the outer tube is ≥1,000MΩ.m, that is, the insulation resistance of the 1m and 10m long sample are 1,000MΩ and 100MΩ respectively.

Specifications Parameters
TY-S Thermocouple - junction box
Type K, E, T, S and B
Accuracy class Class 1, 2
Ambient temperature in application Refer to temperature measurement range and tolerance
Structure of sensor SingleDouble
Protective tube material SUS304, SUS316, SUS321 (customer specified)
Process connection No fixing device, fixed thread, movable flange and fixed flange
Protection grade IP57-IP67


3. Application of company products

It is widely used in industrial sectors and scientific and technological fields, including petroleum, chemical, machinery, metallurgy, electric power, textile, food and others.
