Testeck Ltd.
Temperature sensor and low smoke halogen free flame retardant high temperature cable manufacturer:www.testeck.com/
 |
| Place of Origin: | China |
| Brand Name: | Testeck |
| Certification: | CE，ISO |
| Model Number: | TY-S05 |
| Minimum Order Quantity: | 10 |
|---|---|
| Price: | agree |
| Packaging Details: | Customized packing |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 5000 pieces each month |
| Product Name: | RTD Quick Connector | Type: | Pt100 |
|---|---|---|---|
| Accuracy Class: | Class A, B | Ambient Temperature In Application: | －100～200℃ |
| Protection Grade: | IP68 | Anti Vibration Performance: | 10～2000HZ，15g |
| High Light: | RTD Pt100 Temperature Sensor,IP68 Pt100 Temperature Sensor,IP68 RTD Pt100 |
||

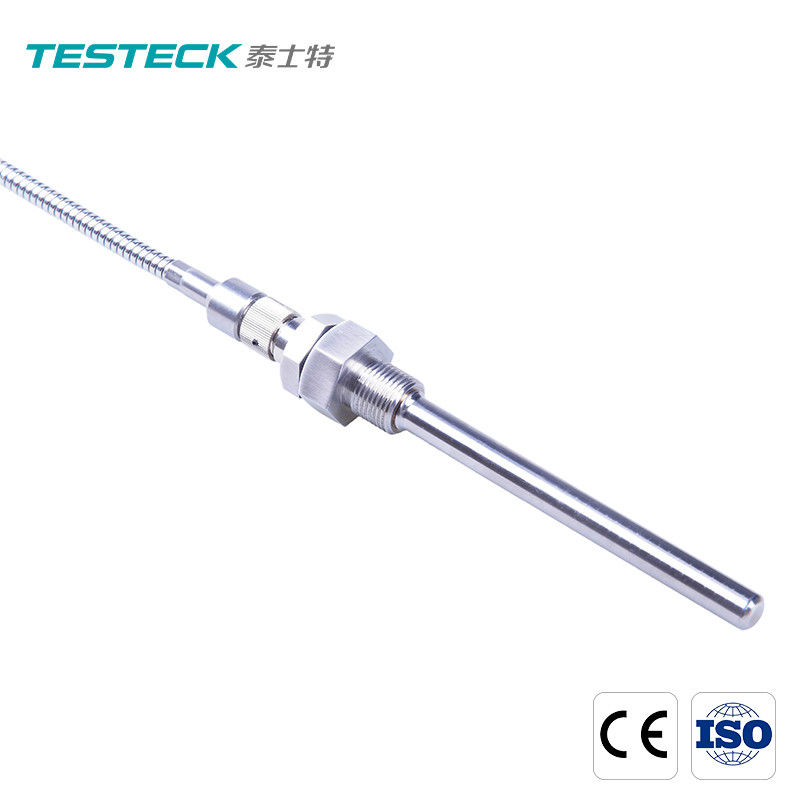

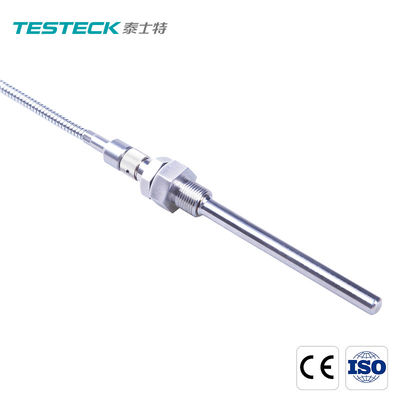

IP68 RTD Pt100 Temperature Sensor Durable Stable Performance
RTD Connector Durable Stable Performance And Use More Conveniently
Screw-in thermal resistor measures temperature based on the characteristic of changing resistance of a substance along with temperature. When the medium being measured shows a temperature gradient, the temperature measured is the average temperature of the medium in the range where the temperature sensing element is located.
Industrial screw-in thermal resistor is used as a temperature measurement sensor, usually used in conjunction with temperature transmitters, regulators and display instruments to form a process control system. It can directly measure or control the temperature of liquid, steam, gas media and solid surface in various production processes.
1. Screw-in Thermal Resistor
Industrial screw-in thermal resistor is mainly composed of connector, protective tube, terminal block, and temperature sensing element, and equipped with installation and fixing devices.
1)Temperature sensing element: imported Pt100 temperature sensing element of thin film platinum resistor.
2)Protective tube: According to the type of thermal resistor, the condition of the measured medium and the temperature to be measured, the tubes made of different materials are selected. The tubes of thermal resistor are generally made of carbon steel, various grades of stainless steel, alloy steel and other materials.
3)Installation and fixing device: The installation and fixing device is for users to install and fix thermal resistor. It is divided into various forms, such as no fixing device, fixed thread, movable flange and fixed flange. For more non-standard customized products, please consult Shenzhen Testeck Science and Technology Co., Ltd.
2. Product Parameters
| Specifications | Parameters |
| TY-S05 | Screw-in thermal resistor -Connector |
| Type | Pt100, |
| Accuracy class | Class A, B |
| Ambient temperature in application | －50～200℃ |
| Structure of sensor | Single/double |
| Material of sensor | SUS304, SUS316, SUS321 (customer specified) |
| Process connection | No fixing device, fixed thread, etc. |
| Protection grade | IP68 |
3. Application of company products
It is widely used in industrial sectors and scientific and technological fields, including petroleum, chemical, machinery, metallurgy, electric power, textile, food, etc.
4. Product Structure
