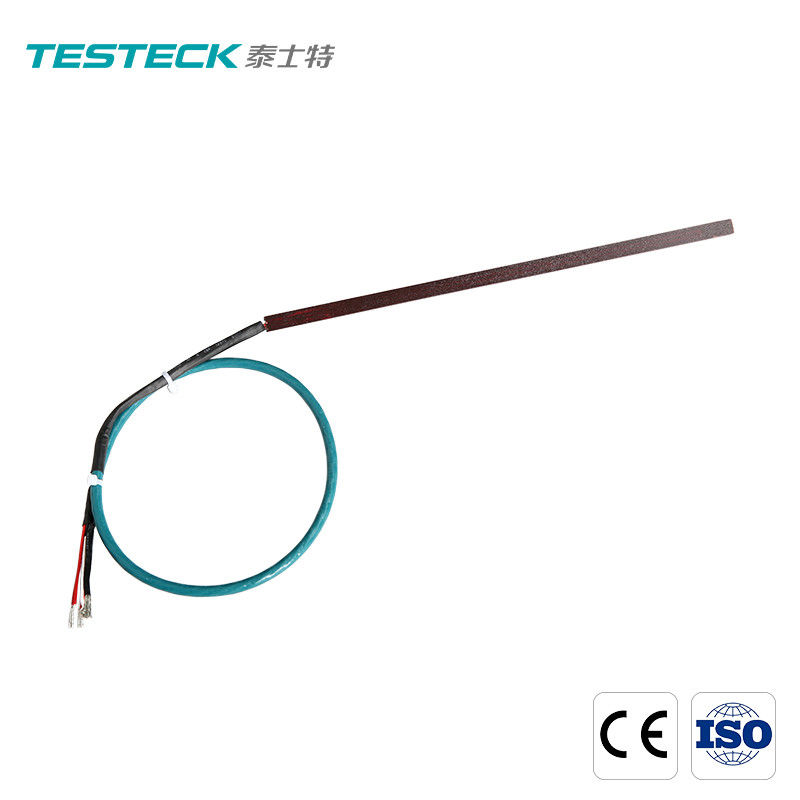

Pt100 3 Wire Sensor Motor Winding RTD Industrial Design Accurate Measurement

Pt100 3 Wire Sensor Motor Winding RTD Industrial Design Accurate Measurement

  • Pt100 3 Wire Sensor Motor Winding RTD Industrial Design Accurate Measurement
Pt100 3 Wire Sensor Motor Winding RTD Industrial Design Accurate Measurement
Product Details:
Place of Origin: China
Brand Name: Testeck
Certification: CE,ISO
Model Number: TY-C01
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Agree
Packaging Details: Customized packing
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 5000 pieces each month
Contact Now
Detailed Product Description
Temperature Range: 0℃ ~180℃ Insulation Resistance: >100 Mohm Normal, > Mohm At 180℃
Voltage: 1500V At 50Hz, 1Min Pressure Resistance: 2MPa , 60S
Longitydinal Pull Of Lead: 50N , 15S Probe: Nonmetal
High Light:

RTD pt100 3 wire sensor

,

3 Wire Motor Winding RTD

,

Pt100 Motor Winding RTD

Pt100 3 Wire Sensor Motor Winding RTD Industrial Design Accurate Measurement



Motor Core RTD Industrial Design Accurate Measurement



Buried in the generator stator iron core, once the iron core is stacked, the temperature measuring element cannot be disassembled. The most concern is long-term stability and service life.

Components: thin-film components or silk-wound components. The size of the platinum resistance of the thin film element can be made small, which is convenient for the arrangement and installation in a narrow space. Two types of single element and dual element are available.

Insulation shell: F and H insulation materials are available.

Lead wire: use high temperature and corrosion resistant fluoroplastic insulated fluoroplastic sheathed control cable.



1. Product Introduction of the Stator iron core temperature measurement

A high-temperature heat-shrinkable film package is used on the outside of the platinum resistance thermometer, which improves the insulation performance of the platinum resistance thermometer and protects the root of the probe to avoid disconnection.

You can choose platinum resistance or thermocouple according to your needs.

The lead wire of platinum resistance can be round wire, flat wire and loose wire.

The wire system is generally three-wire system, and can be made into two-wire system and four-wire system according to user needs.



2. Product Parameter (Specification) of the Stator iron core temperature measurement

Type PT100
Line system Three line system, single /double
Temperature range 0℃ ~180℃
Insulation resistance >100 Mohm normal, > Mohm at 180℃
Voltage 1500V at 50Hz, 1Min
Pressure resistance 2MPa , 60S
Longitydinal pull of lead 50N , 15S
Sealability Lead wire and sensor are reliably sealed


3. Product Feature And Application of the Stator iron core temperature measurement

It is Suitable for monitoring the bearing temperature of generators.



4. Product Details of the Stator iron core temperature measurement

The cable insulation layer is made of high-temperature and tension resistant materials.In particular, magnetization resistance, temperature resistance and insulation performance shall be taken into consideration for packaging materials.



5. delivery, shipment and service of temperature sensors

The temperature sensor is packed in cartons. If you need, we can also make it for you.



6. FAQ

1, are your manufacturer?

We are manufacturer, our factory localed in Shenzhen China.

2, what product you manufacturer have?

Our factory produce temperature sensor for power station,

Stators and cable for industry.

3, how many production lines do you have?

We have 10 production lines in Shenzhen factory.

4, how do you ensure product quality?

We already built a mechanical,electrical,fire and flame retardant laboratory, professional testing engineers.

5, can you send samples?

Yes, we will supply sample before your make the order.
