Testeck Ltd.
Temperature sensor and low smoke halogen free flame retardant high temperature cable manufacturer:www.testeck.com/
 |
| Place of Origin: | China |
| Brand Name: | Testeck |
| Certification: | Iris，CRCC，EN |
| Model Number: | PFA3*0.12 |
| Minimum Order Quantity: | 1000 |
|---|---|
| Packaging Details: | Customized packing |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 5000 pieces each month |
| Model Number: | FEP/PFA/PTFE 3*0.12 | Application: | High Temperature Usage |
|---|---|---|---|
| Conductor Type: | Stranded | Temperature Range: | High Temperature |
| Type: | Insulated | Conductor Material: | Copper |
| High Light: | PFA Insulation High Temp Cable,FEP High Temp Cable,FEP high temperature cable |
||

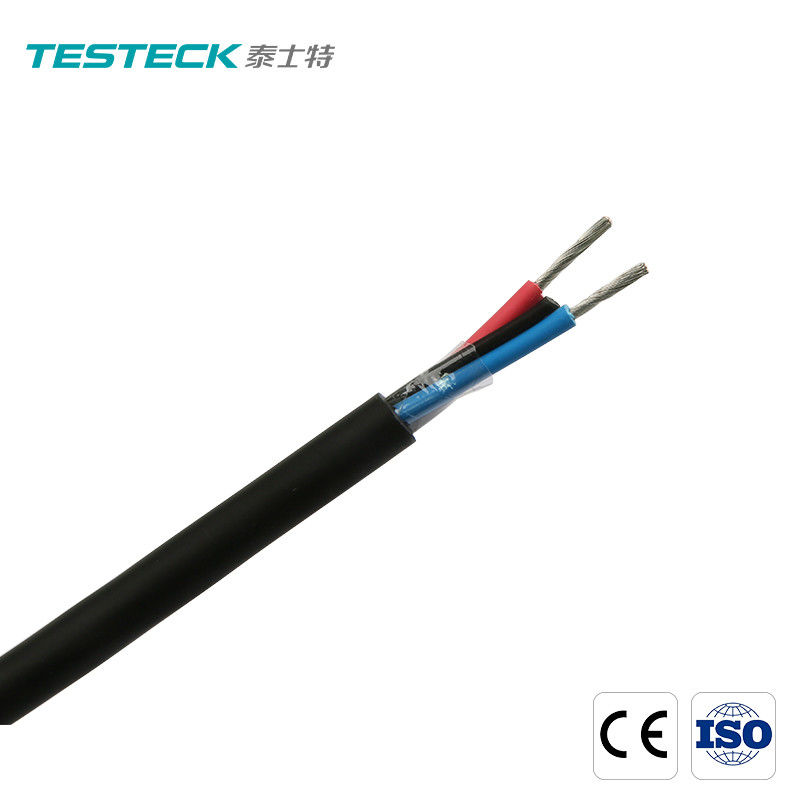

PFA Insulation High Voltage Flexible Awg Stranded Conductor Communication Cables Power Electric Copper Wire Cable
we supply PTFE PFA FEP cable high quality with UL TUV SGS certificated. we devoted ourselves to cable and wire manufacture many years,covering most of Europe and the Americas market. We are expecting become your long term partner in china.
PTFE PFA FEP cable
1. Product Introduction of the PTFE PFA FEP cable
PTFE PFA FEP insulated is excellent high temperature resistant wire. Flame retardant, radiation resistance and good mechanical properties electrical wires. PTFE PFA FEP insulation material has low smoke, halogen-free, flame retardant properties. Peek high temperature resistance cable used in the aviation industry, petrochemical industry, power stations and rail transit industry
2. Product Parameter (Specification) of the PTFE PFA FEP cable
| Section Area mm2 | Conductor construction NO.×mm | Insulation Thickness mm | Outer Diameter mm |
| 0.014 | 7×0.05 | 0.15 | 0.45 |
| 0.035 | 7×0.08 | 0.15 | 0.54 |
| 0.05 | 1×0.26 | 0.17 | 0.6 |
| 0.07 | 1×0.30 | 0.2 | 0.7 |
| 0.08 | 7×0.12 | 0.2 | 0.76 |
| 0.12 | 7×0.15 | 0.2 | 0.85 |
| 0.2 | 7×0.20 | 0.25 | 1.1 |
| 0.35 | 19×0.16 | 0.25 | 1.3 |
| 0.5 | 19×0.18 | 0.25 | 1.4 |
| 0.75 | 19×0.23 | 0.275 | 1.7 |
| 1 | 19×0.26 | 0.25 | 1..8 |
| 1.2 | 19×0.28 | 0.3 | 2 |
| 1.5 | 19×0.32 | 0.3 | 2.2 |
| 2 | 19×0.37 | 0.3 | 2.45 |
| 2.5 | 19×0.41 | 0.4 | 6.86 |
| 4 | 37×0.37 | 0.4 | 3.38 |
3. Product Feature And Application of the PTFE PFA FEP cable
PFA cable has excellent resistance to high temperature, low temperature resistance, excellent electrical insulation performance,
high voltage resistance, aging resistance, long service life and soft and easy to install.
4. Product Details of the PTFE PFA FEP cable
PTFE PFA FEP
Widely used in lighting, household appliances, , lamps.electric appliances, instrumentation, motor wiring and electronics and other electrical wires. gas appliances and other high-temperature environment.
5. Product Qualification of the PTFE PFA FEP cable
PTFE PFA FEP cable certificated by TJ/CL313-2014 Technical requirements for wires and cables of EMU
class S1-S5 in DIN5510-2:2009
Class Ia, Ib and II locomotives in BS6853:1999
DIN5510-2:2009 Fireproof, smoke and toxicity testing
6. FAQ
1, are your manufacturer?
We are manufacturer, our factory localed in Shenzhen China.
2, what product you manufacturer have?
Our factory produce temperature sensor for power station,
Stators and cable for industry.
3, how many production lines do you have?
We have 10 production lines in Shenzhen factory.
4, how do you ensure product quality?
We already built a mechanical,electrical,fire and flame retardant laboratory, professional testing engineers.
5, can you send samples?
Yes, we will supply sample before your make the order.
