Testeck Ltd.
Temperature sensor and low smoke halogen free flame retardant high temperature cable manufacturer:www.testeck.com/
 |
| Place of Origin: | China |
| Brand Name: | Testeck |
| Certification: | Iris，CRCC，EN，UL |
| Model Number: | FF46-2 |
| Minimum Order Quantity: | 1000 |
|---|---|
| Price: | Agree |
| Packaging Details: | Customized packing |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 5000 pieces each month |
| Rated Voltage: | 600V | Temperature Range: | -65℃~200℃ |
|---|---|---|---|
| Onductor Material: | Silver Plated Copper Core Or Silver Plated Copper Alloy | Insulation Material: | FEP Poly (perfluoroethylene Propylene |
| Shield: | Silver Plated Copper Braid | Sheath: | Silver Plated Copper Braid |
| High Light: | FEP Insulated High Temp Cable,600V High Temp Cable,600V FEP cable |
||

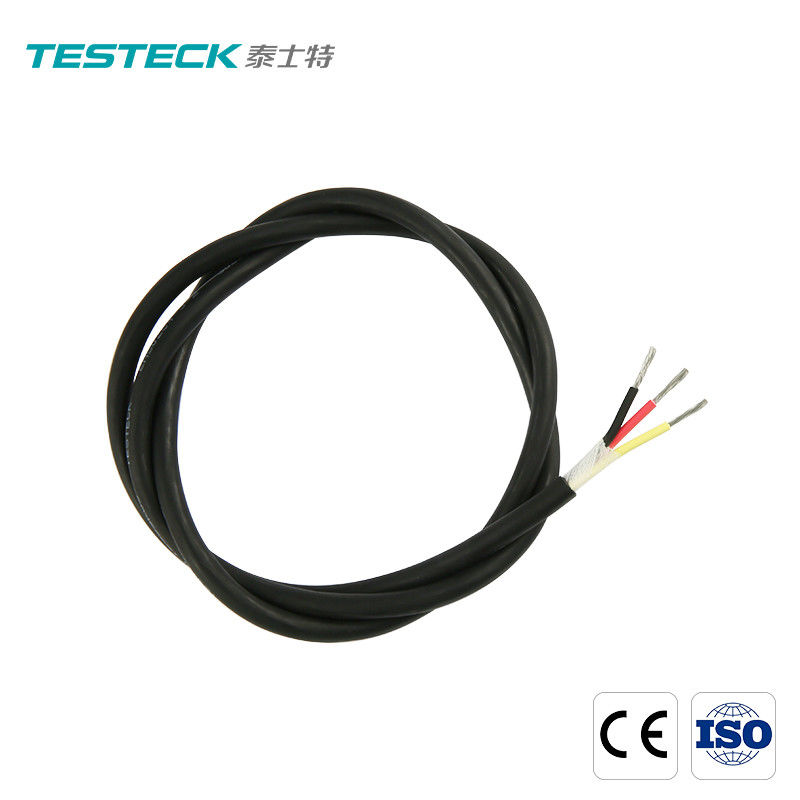

600V FEP Insulated High Temp Cable Silver Plated Copper Core
Silver Plated Copper Core FEP Insulated Wire And Cable Factory Price In China
we supply FEP cable high quality with UL TUV SGS certificated. we devoted ourselves to cable and wire manufacture many years,covering most of Europe and the Americas market. We are expecting become your long term partner in china.
FEP cable
1. Product Introduction of the FEP cable
FEP insulated is excellent high temperature resistant wire. Flame retardant, radiation resistance and good mechanical properties electrical wires. FEP insulation material has low smoke, halogen-free, flame retardant properties. Peek high temperature resistance cable used in the aviation industry, petrochemical industry, power stations and rail transit industry
2. Product Parameter (Specification) of the FEP cable
| Section Area mm2 | Conductor construction NO.×mm | Insulation Thickness mm | Outer Diameter mm |
| 0.014 | 7×0.05 | 0.15 | 0.45 |
| 0.035 | 7×0.08 | 0.15 | 0.54 |
| 0.05 | 1×0.26 | 0.17 | 0.6 |
| 0.07 | 1×0.30 | 0.2 | 0.7 |
| 0.08 | 7×0.12 | 0.2 | 0.76 |
| 0.12 | 7×0.15 | 0.2 | 0.85 |
| 0.2 | 7×0.20 | 0.25 | 1.1 |
| 0.35 | 19×0.16 | 0.25 | 1.3 |
| 0.5 | 19×0.18 | 0.25 | 1.4 |
| 0.75 | 19×0.23 | 0.275 | 1.7 |
| 1 | 19×0.26 | 0.25 | 1..8 |
| 1.2 | 19×0.28 | 0.3 | 2 |
| 1.5 | 19×0.32 | 0.3 | 2.2 |
| 2 | 19×0.37 | 0.3 | 2.45 |
| 2..5 | 19×0.41 | 0.4 | 6.86 |
| 4 | 37×0.37 | 0.4 | 3.38 |
3.Product Feature And Application of the FEP cable
FEP cable has excellent resistance to high temperature, low temperature resistance, excellent electrical insulation performance,
high voltage resistance, aging resistance, long service life and soft and easy to install.
4. Product Details of the FEP cable
FEP
Widely used in lighting, household appliances, , lamps.electric appliances, instrumentation, motor wiring and electronics and other electrical wires. gas appliances and other high-temperature environment.
5. Product Qualification of the FEP cable
FEP cable certificated by TJ/CL313-2014 Technical requirements for wires and cables of EMU
class S1-S5 in DIN5510-2:2009
Class Ia, Ib and II locomotives in BS6853:1999
DIN5510-2:2009 Fireproof, smoke and toxicity testing
6.FAQ
1, are your manufacturer?
We are manufacturer, our factory localed in Shenzhen China.
2, what product you manufacturer have?
Our factory produce temperature sensor for power station,
Stators and cable for industry.
3, how many production lines do you have?
We have 10 production lines in Shenzhen factory.
4, how do you ensure product quality?
We already built a mechanical,electrical,fire and flame retardant laboratory, professional testing engineers.
5, can you send samples?
Yes, we will supply sample before your make the order.
