Temperature sensor and low smoke halogen free flame retardant high temperature cable manufacturer:www.testeck.com/
|Place of Origin:||China|
|Minimum Order Quantity:||10|
|Packaging Details:||Customized packing|
|Payment Terms:||T/T, Western Union, MoneyGram|
|Supply Ability:||5000 pieces each month|
|Product Name:||PT100 Temperature Sensor||Type:||PT100|
|Accuracy Class:||2B、B、A、1/3BLevel Optional||Measuring Range:||-200℃ To +420℃|
|Nominal Pressure:||10Mpa||Response Time:||≤90S|
Fixed Bolt Type Rtd Sensor Pt100,
Fixed Pt100 Thermocouple,
ISO Rtd Sensor Pt100
Fixed Bolt Type Rtd Sensor Pt100 Thermocouple Temperature Measuring

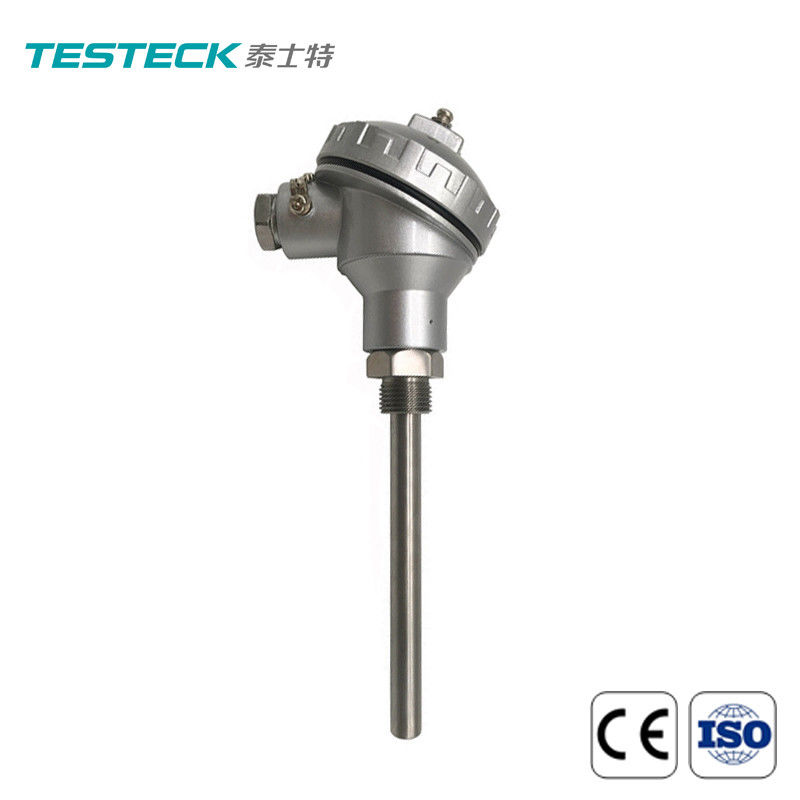

Pt100 Thermal Resistance With Fixed Bolt Type RTD Water-Proof Connecting Box
The screw in thermistor measures the temperature by using the characteristic that the resistance of the material changes with the change of temperature. When there is a temperature gradient in the measured medium, the measured temperature is the average temperature in the medium where the temperature sensing element is located.
Industrial screw in thermistor is used as temperature measurement sensor. It is usually used together with temperature transmitter, regulator and display instrument to form a process control system. It is used to directly measure or control the temperature of liquid, steam, gas medium and solid surface in various production processes.
Thin film platinum thermistor: because of its packaging and manufacturing characteristics, its temperature range is - 50 ~ 500 ℃. PT100 is a widely used temperature measuring element, which has incomparable advantages over any other temperature sensor in the range of - 50 ~ 500 ℃, including high precision, good stability, strong anti-interference ability, etc. Screw in thermistor is widely used in petroleum, chemical, machinery, metallurgy, electric power, textile, food and other industrial sectors and scientific and technological fields.
1. Screw in thermistor
Industrial screw in thermistor is mainly composed of junction box, protection tube, terminal block, insulated porcelain post and temperature sensing element, and is equipped with various installation and fixing devices.
1) Temperature sensing element: imported thin film platinum resistance PT100 temperature sensing element.
2) Protection tube: according to the type of thermal resistance, the measured medium condition and the measured temperature, the protection tube made of different materials is selected. The protection tube of thermal resistance is generally made of carbon steel, various brands of stainless steel, alloy steel and other materials.
3) Junction box: the junction box of thermal resistance is used to connect the display instrument of temperature sensing element. It is generally made of aluminum alloy and stainless steel, and can be divided into flameproof type, waterproof type and small splash proof type.
4) Wiring board: the wiring board of thermal resistance is generally made of ceramics, which is installed in the junction box and is the signal output end of thermal resistance. It is divided into single branch and double branch.
5) Installation and fixing device: the thermal resistance installation and fixing device is used by users for installation and fixing. It can be divided into non fixing device, fixed thread, movable flange and fixed flange.
For more non-standard customized products, please consult taishite technology.
2. Product parameters
|Place of Origin||China|
|Description||thermal resistance of Pt100|
|Measuring range||-200℃ to +420℃|
|Place of Origin||shanghai|
|Min insert depth||100mm|
|Tube material||sus stainless steel|
3. Product application
It is widely used in petroleum, chemical, machinery, metallurgy, electric power, textile, food and other industrial sectors and scientific and technological fields.
4. delivery, shipment and service of temperature sensors
The temperature sensor is packed in cartons. If you need, we can also make it for you.
1, are your manufacturer?
We are manufacturer, our factory localed in Shenzhen China.
2, what product you manufacturer have?
Our factory produce temperature sensor for power station,
Stators and cable for industry.
3, how many production lines do you have?
We have 10 production lines in Shenzhen factory.
4, how do you ensure product quality?
We already built a mechanical,electrical,fire and flame retardant laboratory, professional testing engineers.
5, can you send samples?
Yes, we will supply sample before your make the order.
