| Place of Origin: | China |
| Brand Name: | Testeck |
| Certification: | CE,ISO |
| Model Number: | TY-C |
| Minimum Order Quantity: | 10 |
|---|---|
| Price: | Agree |
| Packaging Details: | Customized packing |
| Payment Terms: | T/T, Western Union, MoneyGram |
| Supply Ability: | 5000 pieces each month |
| Type: | PT100 | Ambient Temperature In Application: | －50～200℃ |
|---|---|---|---|
| Measuring Range: | PT100 | Probe Diameter: | Contact Customer Service |
| Structure Of Sensor: | Single/Double | Installation Method: | Contact Customer Service |
| High Light: | Two Wire Rtd Resistance Temperature Detector,Pt100 Rtd Resistance Temperature Detector,Rtd Pt100 Temp Sensor |
||

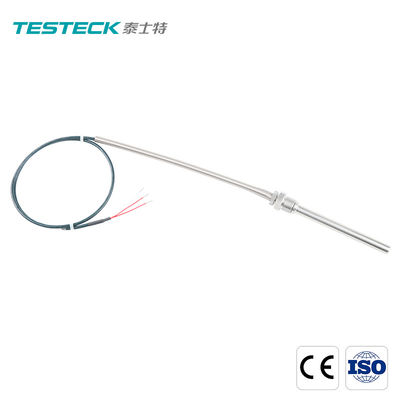

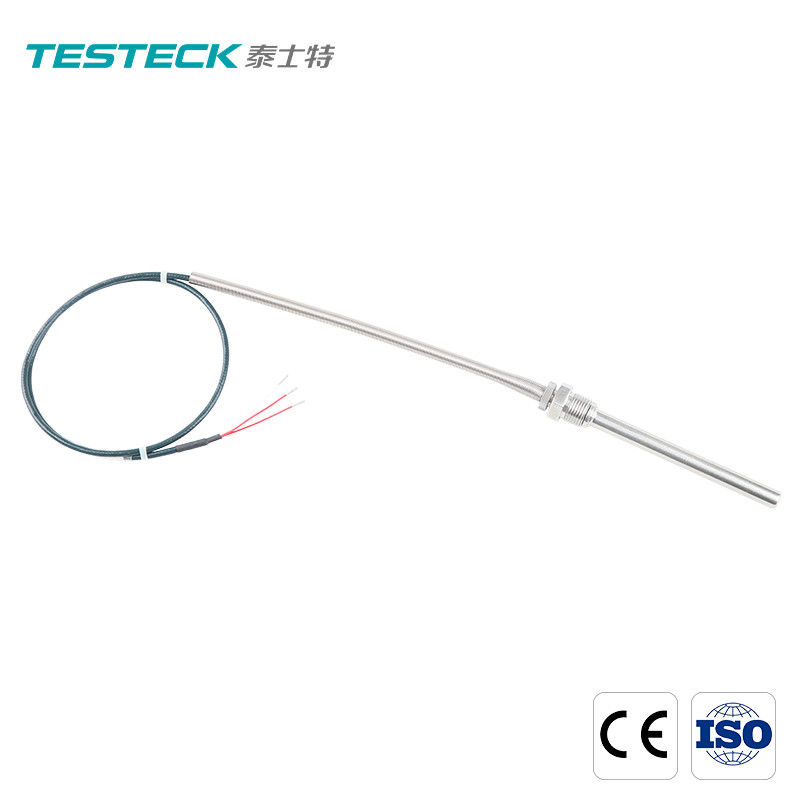

Two Wire Rtd Resistance Temperature Detector Pt100 Temp Sensor
pt100 temperature sensor stainless steel thermocouple
Integrated RTD measures temperature based on the characteristic of changing resistance of a substance along with temperature. When the medium being measured shows a temperature gradient, the temperature measured is the average temperature of the medium in the range where the temperature sensing element is located.
Industrial integrated RTD is used as a temperature measurement sensor, usually used in conjunction with temperature transmitters, regulators and display instruments to form a process control system. It can directly measure or control the temperature of liquid, steam, gas media and solid surface in various production processes.
1. RTD description
Industrial integrated RTD is mainly composed of temperature sensing element, temperature probe, transition protection and signal cable, and equipped with installation and fixing devices.
1 Temperature sensing element: imported Pt100 temperature sensing element of thin film platinum resistor.
2. Protective tube: According to the type of thermal resistor, the condition of the measured medium and the temperature to be measured, the tubes made of different materials are selected. The tubes of thermal resistor are generally made of carbon steel, various grades of stainless steel, alloy steel and other materials.
3 Installation and fixing device: The installation and fixing device is for users to install and fix thermal resistor. It is divided into various forms, such as no fixing device, fixed thread, movable flange and fixed flange.
For more non-standard customized products, please consult Shenzhen Testeck Science and Technology Co., Ltd.
2. Product Parameters
| Specifications | Parameters |
| TY-C | RTD |
| Type | Pt100 |
| Accuracy class | Class A, B |
| measuring range | －80～200℃ |
| Wire system | Two-wire, three-wire, |
| Structure of sensor | Single/Double |
| Material of probe | SS304,etc |
| Wire Length | customized |
3. Application of Company Products
It is widely used in industrial sectors and scientific and technological fields, including petroleum, chemical, machinery, metallurgy, electric power, textile, food, etc.
4. Product Structure
5.Deliver,Shipping And Serving of the Pipeline and auxiliary temperature sensor
temperature sensor packing with carton box , We also can customized for you if your order need.
6.FAQ
1, are your manufacturer?
We are manufacturer, our factory localed in Shenzhen China.
2, what product you manufacturer have?
Our factory produce temperature sensor for power station,
Stators and cable for industry.
3, how many production lines do you have?
We have 10 production lines in Shenzhen factory.
4, how do you ensure product quality?
We already built a mechanical,electrical,fire and flame retardant laboratory, professional testing engineers.
5, can you send samples?
Yes, we will supply sample before your make the order.
