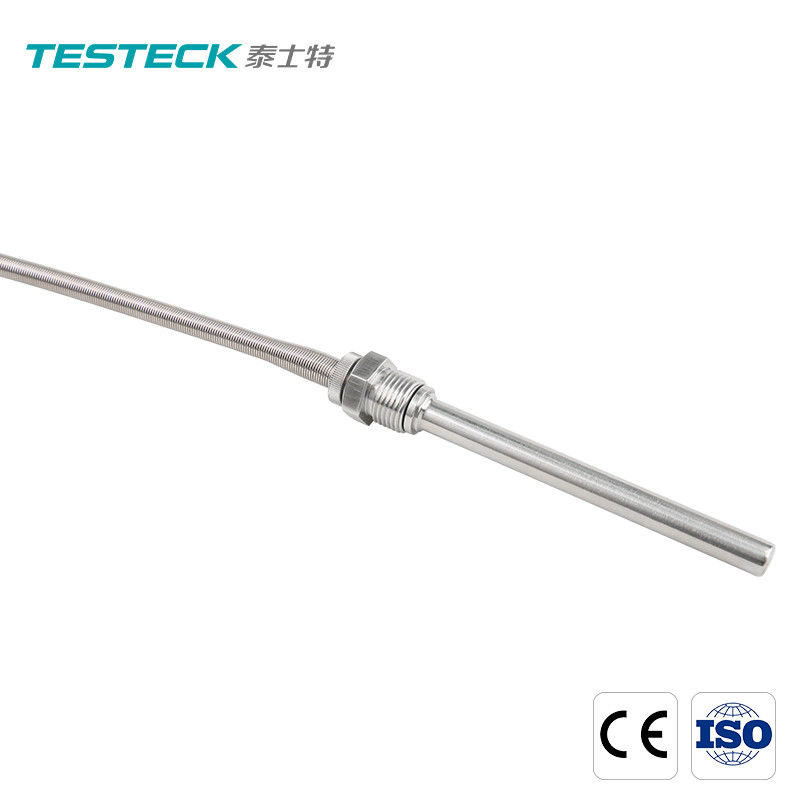

Pt100 Probe 3 Wire RTD Temperature Sensor For Chemical Machinery

Pt100 Probe 3 Wire RTD Temperature Sensor For Chemical Machinery

  • Pt100 Probe 3 Wire RTD Temperature Sensor For Chemical Machinery
Pt100 Probe 3 Wire RTD Temperature Sensor For Chemical Machinery
Product Details:
Place of Origin: China
Brand Name: Testeck
Certification: CE,ISO
Model Number: TY-C
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Agree
Packaging Details: Customized packing
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 5000 pieces each month
Contact Now
Detailed Product Description
Graduation: RTD Ambient Temperature In Application: -50~450℃
Type: PT100 Probe Diameter: Contact Customer Service
Structure Of Sensor: Single/Double Installation Method: Contact Customer Service
High Light:

pt100 probe 3 wire

,

Machinery RTD Temperature Sensor

,

Chemical RTD Temperature Sensor

Pt100 Probe 3 Wire RTD Temperature Sensor For Chemical Machinery



Resistance Thermal Pt100 Probe RTD Sensor



Industrial integrated RTD is used as a temperature measurement sensor, usually used in conjunction with temperature transmitters, regulators and display instruments to form a process control system. It can directly measure or control the temperature of liquid, steam, gas media and solid surface in various production processes.



1. RTD description

Industrial integrated RTD is mainly composed of temperature sensing element, temperature probe, transition protection and signal cable, and equipped with installation and fixing devices.



1 Temperature sensing element: imported Pt100 temperature sensing element of thin film platinum resistor.

2 Protective tube: According to the type of thermal resistor, the condition of the measured medium and the temperature to be measured, the tubes made of different materials are selected. The tubes of thermal resistor are generally made of carbon steel, various grades of stainless steel, alloy steel and other materials.

3 Installation and fixing device: The installation and fixing device is for users to install and fix thermal resistor. It is divided into various forms, such as no fixing device, fixed thread, movable flange and fixed flange.



The temperature sensor made by taishite in Shenzhen, China, has stable performance and reliable quality. It is your reliable brand.

For more non-standard customized products, please consult Shenzhen Testeck Science and Technology Co., Ltd.



2. Product Parameters

Specifications Parameters
TY-C RTD
Type Pt100
Accuracy class Class A, B
measuring range -80~200℃
Wire system Two-wire, three-wire,
Structure of sensor Single/Double
Material of probe SS304,etc
Wire Length customized



3. Application of Company Products

It is widely used in industrial sectors and scientific and technological fields, including petroleum, chemical, machinery, metallurgy, electric power, textile, food, etc.



4. Product Structure

Pt100 Probe 3 Wire RTD Temperature Sensor For Chemical Machinery 0



5. Serving of the Pipeline and auxiliary temperature sensor

temperature sensor packing with carton box , We also can customized for you if your order need.



6. FAQ

1, are your manufacturer?

We are manufacturer, our factory localed in Shenzhen China.

2, what product you manufacturer have?

Our factory produce temperature sensor for power station,

Stators and cable for industry.

3, how many production lines do you have?

We have 10 production lines in Shenzhen factory.

4, how do you ensure product quality?

We already built a mechanical,electrical,fire and flame retardant laboratory, professional testing engineers.

5, can you send samples?

Yes, we will supply sample before your make the order.
