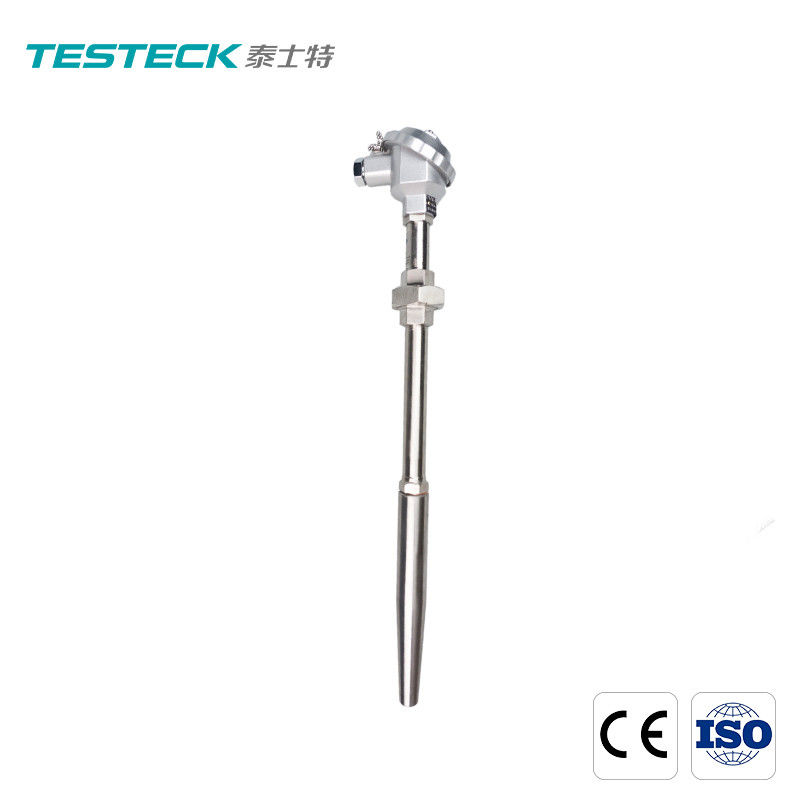

High Pressure Boiler PT100 Thermocouple Sensor K Type Resistance Detector

High Pressure Boiler PT100 Thermocouple Sensor K Type Resistance Detector

Temperature Measurement Of Steam System Of High Temperature And High Pressure Boiler

Metal wall temperature measurement points generally include boiler water wall temperature, steam drum metal wall temperature, saturated steam extraction pipe wall temperature, drop pipe wall temperature, superheater pipe wall temperature, reheater pipe wall temperature, etc.

Boiler metal wall temperature thermocouples use armored components as temperature probes, or with compensating wires, or equipped with junction boxes. The measuring end is fastened to the heat-conducting block with screws or welding, and the heat-conducting block is welded or hooped on the pipe On the wall, the temperature of the metal surface is measured through the heat conduction of the heat conducting block.

Boiler steam system temperature measurement

1. Product Introduction of the Boiler steam system temperature measurement

Steam temperature before and after desuperheater of steam system

The steam temperature before and after the desuperheater is generally high-temperature and high-pressure welded temperature sleeves, and the sleeve material is the same as the pipe material. Usually use Φ5 or Φ6 armored components for temperature measurement.

Boiler steam temperature

The boiler steam temperature measurement points include the steam temperature at the outlet of the superheater and the steam temperature at the outlet of the reheater. Generally, welded integrally drilled temperature casing or high temperature and high pressure type temperature casing are used, and the material selection is the same as that of the pipe

2. Product Parameter (Specification) of the Boiler steam system temperature measurement

Steam temperature before and after desuperheater of steam system

Boiler steam temperature

3. Product Feature And Application of the Boiler steam system temperature measurement

Metal wall temperature measurement points generally include boiler water wall temperature, steam drum metal wall temperature, saturated steam extraction pipe wall temperature, drop pipe wall temperature, superheater pipe wall temperature, reheater pipe wall temperature, etc.

4. Product Details of the Boiler steam system temperature measurement

Steam temperature before and after desuperheater of steam system

The steam temperature before and after the desuperheater is generally high-temperature and high-pressure welded temperature sleeves, and the sleeve material is the same as the pipe material. Usually use Φ5 or Φ6 armored components for temperature measurement.

5. delivery, shipment and service of temperature sensors

The temperature sensor is packed in cartons. If you need, we can also make it for you.

6. FAQ

1, are your manufacturer?

We are manufacturer, our factory localed in Shenzhen China.

2, what product you manufacturer have?

Our factory produce temperature sensor for power station,

Stators and cable for industry.

3, how many production lines do you have?

We have 10 production lines in Shenzhen factory.

4, how do you ensure product quality?

We already built a mechanical,electrical,fire and flame retardant laboratory, professional testing engineers.

5, can you send samples?

Yes, we will supply sample before your make the order.
