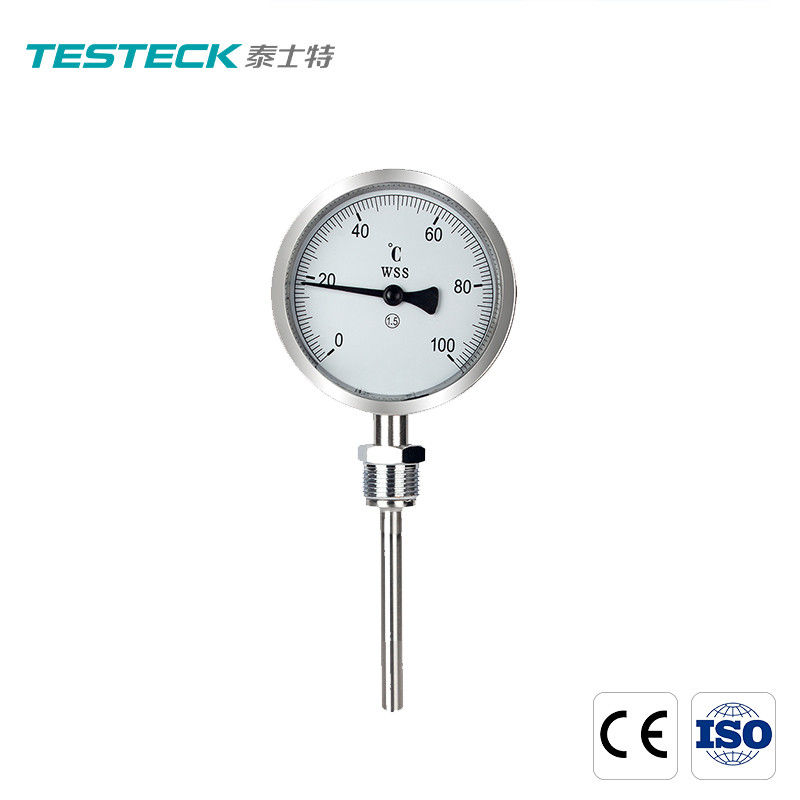

Axial Bimetal Thermometer WSS501 Stainless Steel Bimetal Temperature Gauge

Axial Bimetal Thermometer WSS501 Stainless Steel Bimetal Temperature Gauge

  • Axial Bimetal Thermometer WSS501 Stainless Steel Bimetal Temperature Gauge
Axial Bimetal Thermometer WSS501 Stainless Steel Bimetal Temperature Gauge
Product Details:
Place of Origin: CHINA
Brand Name: TESTECK
Certification: CE,ISO
Model Number: WSS-301
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Agree
Packaging Details: Customized packing
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 5000 pieces each month
Contact Now
Detailed Product Description
Accuracy Class: Bimetal Temperature Gauge Design Pressure: ≤6.4MPa
Protection Grade: IP55/IP65 Thermal Response Time: <40S
Interface Size: Movable Thread) Can Be Customized With Fixed Thread, Internal Thread And Non-standard Specification Connection Mode: Movable External Thread Movable Internal Thread Fixed Thread Fixed Flange Ferrule Thread Ferrule Flange
High Light:

Axial Bimetal Thermometer

,

WSS 501 Bimetal Temperature Gauge

,

WSS501 Bimetal Thermometer

Axial Bimetal Thermometer WSS501 Stainless Steel Bimetal Temperature Gauge



Axial Bimetal Thermometer Industrial Wss-301 / 401 / 501 Stainless Steel Thermometer Boiler Pipe



Bimetal thermometer works based on the principle that two different metals expand at different degrees when the temperature changes. The main component of an industrial bimetal thermometer is a multilayer metal sheet composed of two or more metal sheets laminated together. In order to improve the sensitivity of temperature measurement, the metal sheet is usually made into a spiral shape. When the temperature of the multi-layer metal sheet changes, each layer of metal expands or contracts to a varying degree, causing the spiral coil to roll up or loosen. Because one end of the spiral coil is fixed and the other end is connected with a pointer that can rotate freely, the pointer can indicate the temperature on a circular graduation scale when the bimetallic piece senses temperature change. The instrument has the temperature measurement range of 200~650℃, and the allowable error is about 1% of the scale range. The purpose of this thermometer is similar to that of rod-shaped glass liquid thermometer, but the former can be used under conditions that require higher mechanical strength.

The bimetal thermometer is suitable for measuring medium temperature and low temperature, and can be used to directly measure the temperature of gas, liquid and steam. It is mainly divided into three types: axial, radial and universal type.



1. Dimensions

(Attached with detailed diagram of bimetal thermometer)



2. Technical Parameter

Temperature range Accuracy class Diameter of protective tube Insertion depth Design pressure Protection grade Electric contact
Scale Scale interval Class 1.5 (1.5% of range)

Φ6

Φ8

Φ8

Φ12

100-2000 ≤6.4MPa Ip65 Rated power of contact Working voltage

60~40℃

40~60℃

20~80℃

0~50℃

0~100℃

0~150℃

0~200℃

0~300℃

0~400℃

0~500℃

0~600℃

2℃

2℃

2℃

1℃

2℃

2℃

5℃

5℃

10℃

10℃

10℃

≤10W ≤380V

Axial Bimetal Thermometer WSS501 Stainless Steel Bimetal Temperature Gauge 0





3. Our product delivery, transportation and services

packing with carton box , We also can customized for you if your order need.



4. FAQ

1, are your manufacturer?

We are manufacturer, our factory localed in Shenzhen China.

2, what product you manufacturer have?

Our company produces all kinds of temperature sensors, motor stator RTD, instruments and cables, and the products are sold all over the world.

3, how many production lines do you have?

We have 10 production lines in Shenzhen factory.

4, how do you ensure product quality?

We already built a mechanical,electrical,fire and flame retardant laboratory, professional testing engineers.

5, can you send samples?

Yes, we will supply sample before your make the order.
