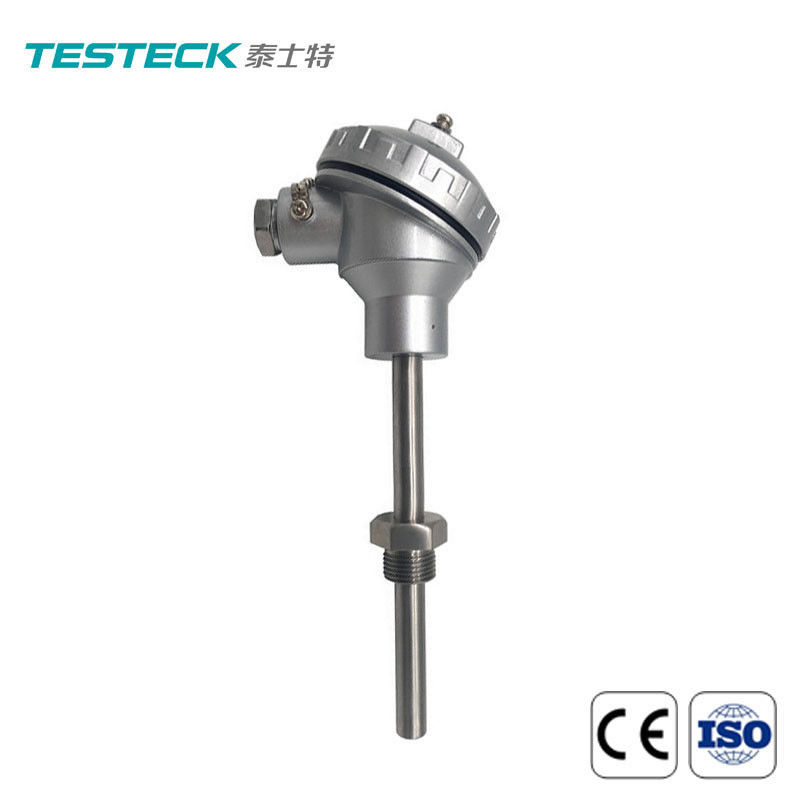

10Mpa RTD Temperature Sensor Widely Used PT100 Thermocouple

10Mpa RTD Temperature Sensor Widely Used PT100 Thermocouple

  • 10Mpa RTD Temperature Sensor Widely Used PT100 Thermocouple
10Mpa RTD Temperature Sensor Widely Used PT100 Thermocouple
Product Details:
Place of Origin: China
Brand Name: Testeck
Certification: CE,ISO
Model Number: TY-S
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Agree
Packaging Details: Customized packing
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 5000 pieces each month
Contact Now
Detailed Product Description
Product Name: PT100 Temperature Sensor Type: PT100
Accuracy Class: 2B、B、A、1/3BLevel Optional Measuring Range: -200℃ To +420℃
Nominal Pressure: 10Mpa Response Time: ≤90S
High Light:

10Mpa RTD Temperature Sensor

,

90S RTD Temperature Sensor

,

10Mpa PT100 Thermocouple

10Mpa RTD Temperature Sensor Widely Used PT100 Thermocouple



Widely Used High Temperature Sensor Thermocouple Pt100 Thermal



The screw in thermistor measures the temperature by using the characteristic that the resistance of the material changes with the change of temperature. When there is a temperature gradient in the measured medium, the measured temperature is the average temperature in the medium where the temperature sensing element is located.

Industrial screw in thermistor is used as temperature measurement sensor. It is usually used together with temperature transmitter, regulator and display instrument to form a process control system. It is used to directly measure or control the temperature of liquid, steam, gas medium and solid surface in various production processes.

Thin film platinum thermistor: because of its packaging and manufacturing characteristics, its temperature range is - 50 ~ 500 ℃. PT100 is a widely used temperature measuring element, which has incomparable advantages over any other temperature sensor in the range of - 50 ~ 500 ℃, including high precision, good stability, strong anti-interference ability, etc. Screw in thermistor is widely used in petroleum, chemical, machinery, metallurgy, electric power, textile, food and other industrial sectors and scientific and technological fields.



1. Screw in thermistor

Industrial screw in thermistor is mainly composed of junction box, protection tube, terminal block, insulated porcelain post and temperature sensing element, and is equipped with various installation and fixing devices.

1) Temperature sensing element: imported thin film platinum resistance PT100 temperature sensing element.

2) Protection tube: according to the type of thermal resistance, the measured medium condition and the measured temperature, the protection tube made of different materials is selected. The protection tube of thermal resistance is generally made of carbon steel, various brands of stainless steel, alloy steel and other materials.

3) Junction box: the junction box of thermal resistance is used to connect the display instrument of temperature sensing element. It is generally made of aluminum alloy and stainless steel, and can be divided into flameproof type, waterproof type and small splash proof type.

4) Wiring board: the wiring board of thermal resistance is generally made of ceramics, which is installed in the junction box and is the signal output end of thermal resistance. It is divided into single branch and double branch.

5) Installation and fixing device: the thermal resistance installation and fixing device is used by users for installation and fixing. It can be divided into non fixing device, fixed thread, movable flange and fixed flange.



For more non-standard customized products, please consult taishite technology.


2Product parameters

item value
Place of Origin China
Model Number TY-S
Brand Name TESTECK
Usage industrial
Theory temperature measuring
Output 2-5mA
Description thermal resistance of Pt100
Material Pt100
Measuring range -200℃ to +420℃
Place of Origin shanghai
Certificate CE/ISO9001
Min insert depth 100mm
MOQ 10pieces
Nominal pressure 10Mpa
response time ≤90S
Tube material sus stainless steel

10Mpa RTD Temperature Sensor Widely Used PT100 Thermocouple 0
3. Product application

It is widely used in petroleum, chemical, machinery, metallurgy, electric power, textile, food and other industrial sectors and scientific and technological fields.


4. delivery, shipment and service of temperature sensors

The temperature sensor is packed in cartons. If you need, we can also make it for you.



5. FAQ

1, are your manufacturer?

We are manufacturer, our factory localed in Shenzhen China.

2, what product you manufacturer have?

Our factory produce temperature sensor for power station,

Stators and cable for industry.

3, how many production lines do you have?

We have 10 production lines in Shenzhen factory.

4, how do you ensure product quality?

We already built a mechanical,electrical,fire and flame retardant laboratory, professional testing engineers.

5, can you send samples?

Yes, we will supply sample before your make the order.
