Three Wire Stator Temperature Sensor RTD Resistance Temperature Detector

Product Details:

Place of Origin:	China
Brand Name:	Testeck
Certification:	CE,ISO
Model Number:	TY-C

Payment & Shipping Terms:

Minimum Order Quantity:	10
Price:	Agree
Packaging Details:	customized packing
Payment Terms:	T/T, Western Union, MoneyGram
Supply Ability:	5000 pieces each month

Contact Now

Detailed Product Description

Temperature Measuring Range:	-50～180℃	Pressure Resistance:	2～4MPa
Insulation Grade:	Class F (155 ℃), H (180 ℃)	Maximum Excitation Current:	5mA
Withstand Voltage:	1000～2500VAC/min	Lead Longitudinal Pressure Resistance:	15～200N
High Light:	rtd resistance temperature detector , Three Wire Stator Temperature Sensor , RTD Stator Temperature Sensor

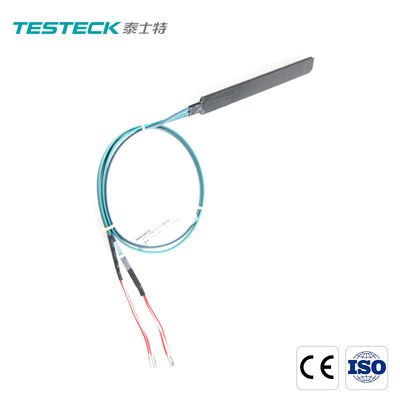

Three wire stator temperature sensor RTD resistance temperature detector

Stator RTD sensor resistance temperature detector

I. product description

The embedded thermal resistance of motor is usually used to measure the stator temperature of large, medium and small motor (generator, motor). Due to the special installation position of the embedded thermal resistance of the motor, there are high requirements for the size, high temperature resistance, insulation resistance, insulation strength, withstand voltage, anti-interference and thermal response time of the thermal resistance. The embedded motor thermal resistance products produced by our company have the advantages of high precision, good stability, high temperature resistance, high insulation, corona resistance, magnetization resistance, etc. the design service life is more than 15 years.

II. Product features

1. Chip temperature sensor and laser welding technology are used to prevent the solder joint from loosening or falling off under the action of strong vibration, which effectively improves the stability of measurement.

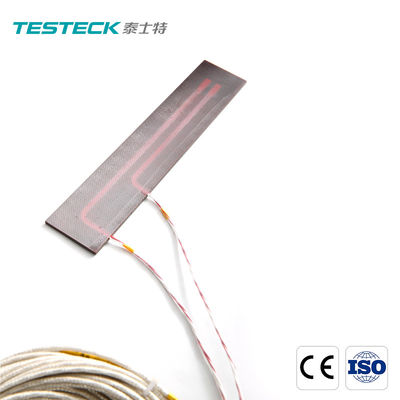

2. The winding type temperature sensor adopts high purity platinum wire to wind into spring (or other shapes), and is evenly embedded in the insulating plate. The temperature monitored by the winding thermal resistance is the average temperature within the specified range.

3. The cable insulation layer is made of high temperature resistant tensile material.

4. The magnetization, temperature, thermal conductivity and insulation properties of packaging materials are specially considered.

5. The technical indexes conform to JBT 10500.1-2005, JBT 10500.2-2005 and IEC 60751.

III. product application

Application of temperature monitoring in stator winding, magnetic core and pressure finger of large and medium motor

IV. product parameters (specifications) chip stator temperature sensor

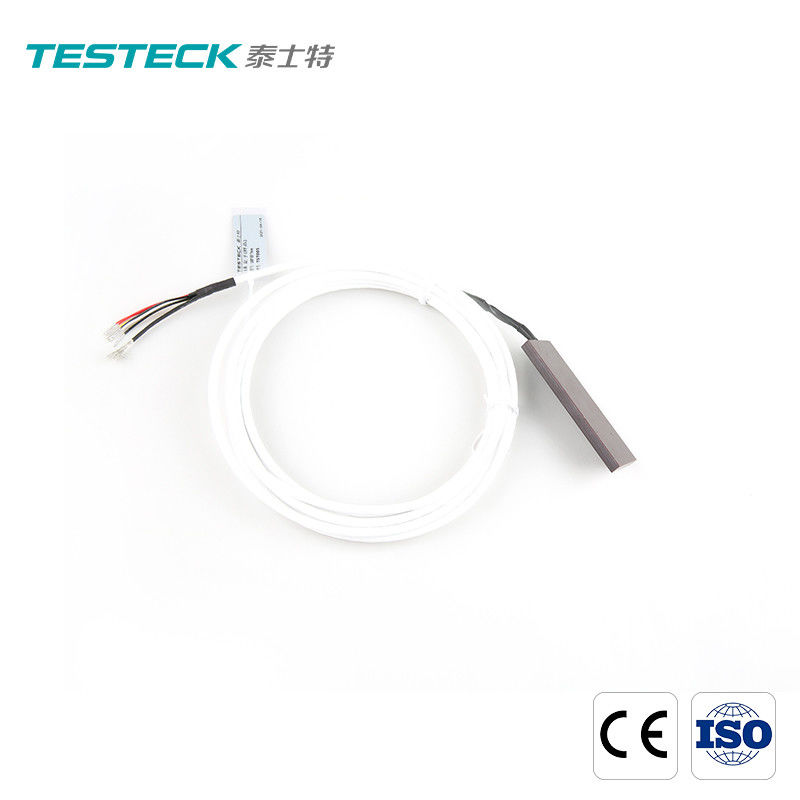

Model	Chip type stator temperature sensor
T2010Pt100-200-5-3200
Temperature measuring range	-50～180℃
Wire system	Three wire system
Insulation grade	Class F (155 ℃), H (180 ℃)
Accuracy grade	Class A /B
Maximum excitation current	5mA
Insulation resistance at room temperature	>100MΩ
Withstand voltage	1000～2500VAC/min
Pressure resistance	2～4MPa
Lead longitudinal pressure resistance	15～200N
Tightness	Immerse in water for 1H at ambient temperature
Thermal cycle	The change value of resistance at 0 ℃ shall not exceed 0.12 Ω
Application	It is applied in monitoring the temperature of generator stator winding, iron core and pressure finger.

Ⅵ. delivery, shipment and service of temperature sensors
The temperature sensor is packed in cartons. If you need, we can also make it for you.

Ⅶ. FAQ
1, are your manufacturer?
We are manufacturer, our factory localed in Shenzhen China.
2, what product you manufacturer have?
Our factory produce temperature sensor for power station,
Stators and cable for industry.
3, how many production lines do you have?
We have 10 production lines in Shenzhen factory.
4, how do you ensure product quality?
We already built a mechanical,electrical,fire and flame retardant laboratory, professional testing engineers.
5, can you send samples?
Yes, we will supply sample before your make the order.
