Temperature sensor and low smoke halogen free flame retardant high temperature cable manufacturer:www.testeck.com/
|Place of Origin:||China|
|Minimum Order Quantity:||10|
|Packaging Details:||customized packing|
|Payment Terms:||T/T, Western Union, MoneyGram|
|Supply Ability:||5000 pieces each month|
|Temperature Resistance Range:||-40℃～180℃||Lead Longitudinal Pressure Resistance:||15～200N|
|Insulation Strength:||1000-2500VAC/min||Insulation Grade:||Class F Or H|
|Number Of Components:||Multiple Temperature Measuring Points||Graduation:||PT100 / K / E / T (customized)|

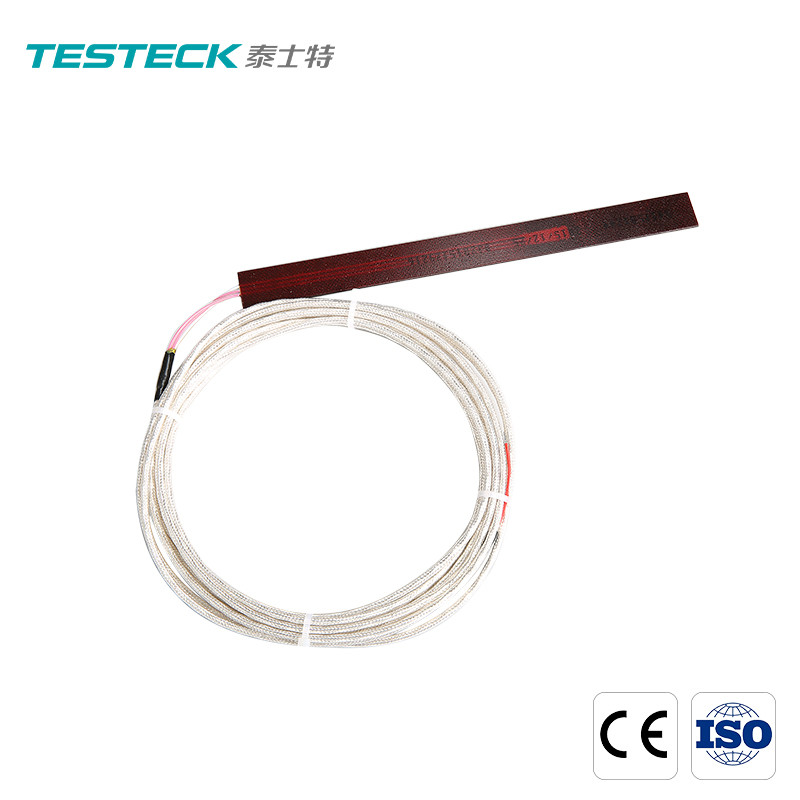

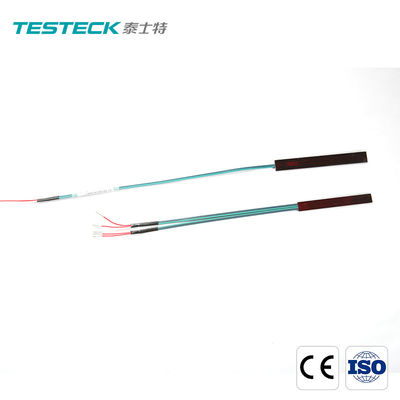

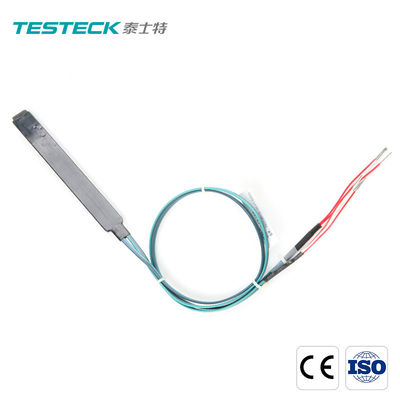

Resistance Temperature Detector Pt100,
Stator Rtd Resistance Temperature Detector,
Motor Electrical Machine Pt100
Ⅰ. Product description
High temperature and high pressure integrated temperature sensor is usually used to measure the stator temperature of large and medium generators. Based on the embedded thermal resistance temperature measuring element for motor, various shapes of insulation strips are processed by using advanced insulation material processing technology, and the integrated high temperature and high pressure molding patent technology is adopted for one-time molding. After molding, the temperature measuring element (embedded thermal resistance for motor) is integrated with the insulating material, effectively avoiding the influence of uncertain factors in the secondary assembly and packaging of the main engine factory. The high temperature and high pressure integrated molding temperature sensor has the advantages of high precision, high stability, high temperature resistance, high voltage resistance, high insulation, corona resistance and magnetization resistance, and the design service life is more than 15 years.
Ⅱ. Product features
1. Integrated molding of high temperature and high pressure, after molding, the temperature measuring element (embedded thermal resistance for motor) is integrated with the insulating material.
2. High precision, high stability and high reliability.
3. It has a wide range of dimensions, and can be used to form an integral part with a width of 500 mm, a length of 7300 mm and a thickness of 20 mm.
4. Various shapes can be formed, such as fan, rectangle and other shapes.
5. The number of temperature measuring points is large, and multiple temperature measuring areas (or temperature measuring points) can be arranged within the allowable size range.
6. Avoid the influence of uncertain factors caused by the secondary packaging of the main engine factory.
Ⅲ. Product application
It is applied to the temperature monitoring of stator winding, iron core and pressure finger of large and medium-sized motor generator
Ⅳ. Product Parameter (Specification) of the Chip type stator temperature sensor
|Model||Chip type stator temperature sensor|
|Number of components||Multiple temperature measuring points are available|
|Temperature measuring range||-50～180℃|
|Wire system||Three wire system|
|Insulation grade||Class F (155 ℃), H (180 ℃)|
|Accuracy grade||Class A /B|
|Maximum excitation current||5mA|
|Insulation resistance at room temperature||>100MΩ|
|Lead longitudinal pressure resistance||15～200N|
|Tightness||Immerse in water for 1H at ambient temperature|
|Thermal cycle||The change value of resistance at 0 ℃ shall not exceed 0.12 Ω|
|Application||It is applied in monitoring the temperature of generator stator winding, iron core and pressure finger.|
Ⅵ. delivery, shipment and service of temperature sensors
The temperature sensor is packed in cartons. If you need, we can also make it for you.
1, are your manufacturer?
We are manufacturer, our factory localed in Shenzhen China.
2, what product you manufacturer have?
Our factory produce temperature sensor for power station,
Stators and cable for industry.
3, how many production lines do you have?
We have 10 production lines in Shenzhen factory.
4, how do you ensure product quality?
We already built a mechanical,electrical,fire and flame retardant laboratory, professional testing engineers.
5, can you send samples?
Yes, we will supply sample before your make the order.
