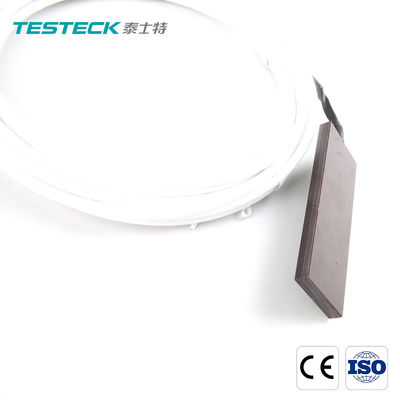

Surface Mount Stator Temperature Sensor 3 Wire Rtd Pt100 Sensor

Surface Mount Stator Temperature Sensor 3 Wire Rtd Pt100 Sensor

  • Surface Mount Stator Temperature Sensor 3 Wire Rtd Pt100 Sensor
  • Surface Mount Stator Temperature Sensor 3 Wire Rtd Pt100 Sensor
Surface Mount Stator Temperature Sensor 3 Wire Rtd Pt100 Sensor
Product Details:
Place of Origin: China
Brand Name: Testeck
Certification: CE,ISO
Model Number: TY-C
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Agree
Packaging Details: customized packing
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 5000 pieces each month
Contact Now
Detailed Product Description
Temperature Measuring Range: -50~180℃ Pressure Resistance: 2~4 MPa
Insulation Grade: Class F (155 ℃), H (180 ℃) Maximum Excitation Current: 5mA
Withstand Voltage: 1000~2500VAC/min Lead Longitudinal Pressure Resistance: 200N
High Light:

Surface Mount Stator Temperature Sensor

,

stator rtd Pt100

,

Rtd Pt100 Sensor

Surface Mount Stator Temperature Sensor 3 Wire Rtd Pt100 Sensor



Surface Mount Stick On Rtd Pt100 3 Wire Type Stator Rtd



. Product description

The embedded thermal resistance used in motor is usually used to measure the stator temperature of large, medium and small motor (generator, motor). Due to the special installation position of the embedded thermal resistance for motor, there are high requirements for the size, high temperature resistance, insulation resistance, insulation strength, pressure resistance, anti-interference and thermal response time of the thermal resistance. The embedded thermal resistance products for motor produced by our company have the advantages of high precision, high stability, high temperature resistance, high insulation, anti corona, anti magnetization, etc., and the design service life is more than 15 years



. Product features

1. Chip type temperature sensing element and laser welding technology are used to prevent the solder joints from loosening or falling off under the strong vibration, which effectively improves the stability of measurement.

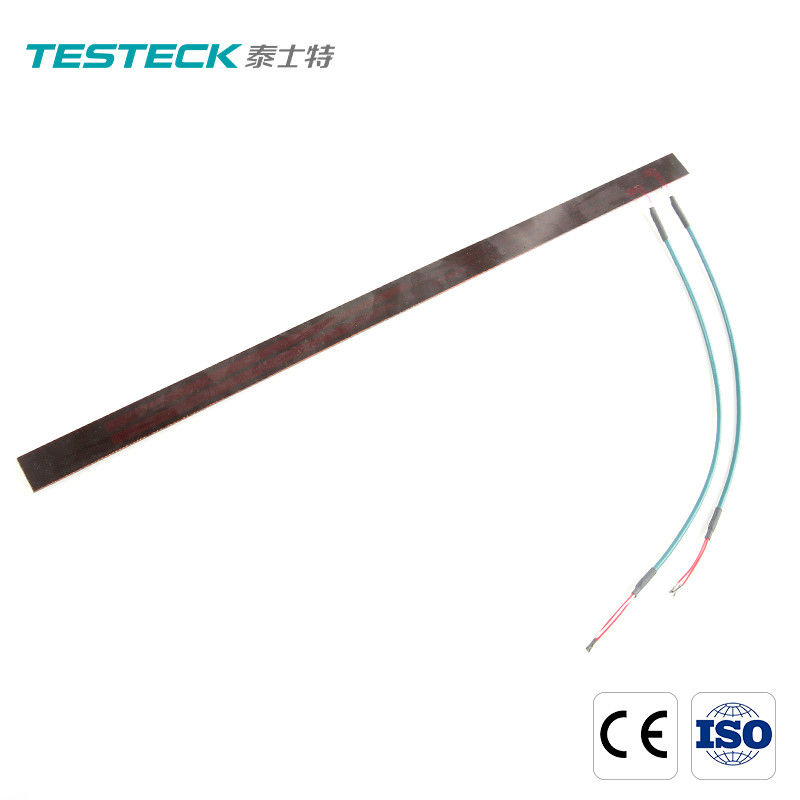

2. The wound type temperature sensing element is made of high-purity platinum wire wound into a spring (or other shape) and evenly embedded in the insulating plate. The temperature monitored by the wound type thermal resistance is the average temperature in the specified range.

3. The cable insulation layer is made of high temperature resistant and tensile resistant materials.

4. Packaging materials take into account, in particular, the resistance to magnetization, temperature, heat conduction and insulation.

5. The technical indexes are in accordance with jbt10500.1-2005, jbt10500.2-2005 and iec60751.



. Product application

Application to the temperature monitoring of stator winding, core and pressure finger of large and medium sized motors (generator and motor)



. Product Parameter (Specification) of the Chip type stator temperature sensor

Model Chip type stator temperature sensor
Temperature measuring range -50~180℃
Wire system Three wire system
Insulation grade Class F (155 ℃), H (180 ℃)
Accuracy grade Class A /B
Maximum excitation current 5mA
Insulation resistance at room temperature 100MΩ
Withstand voltage 1000~2500VAC/min
Pressure resistance 2~4MPa
Lead longitudinal pressure resistance 15~200N
Tightness Immerse in water for 1H at ambient temperature
Thermal cycle The change value of resistance at 0 ℃ shall not exceed 0.12 Ω
Application It is applied in monitoring the temperature of generator stator winding, iron core and pressure finger.



. delivery, shipment and service of temperature sensors

The temperature sensor is packed in cartons. If you need, we can also make it for you.



. FAQ

1, are your manufacturer?

We are manufacturer, our factory localed in Shenzhen China.

2, what product you manufacturer have?

Our factory produce temperature sensor for power station,

Stators and cable for industry.

3, how many production lines do you have?

We have 10 production lines in Shenzhen factory.

4, how do you ensure product quality?

We already built a mechanical,electrical,fire and flame retardant laboratory, professional testing engineers.

5, can you send samples?

Yes, we will supply sample before your make the order.
