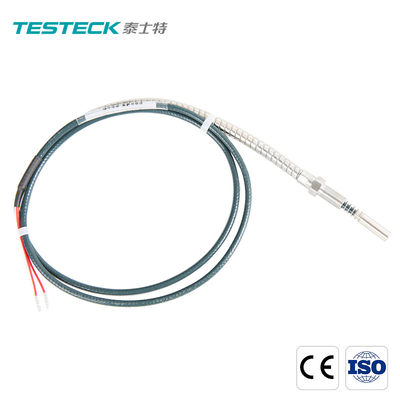

M6 Screw K J Type Surface Mount Temperature Sensor PT100 For Industrial Temp

M6 Screw K J Type Surface Mount Temperature Sensor PT100 For Industrial Temp

  • M6 Screw K J Type Surface Mount Temperature Sensor PT100 For Industrial Temp
M6 Screw K J Type Surface Mount Temperature Sensor PT100 For Industrial Temp
Product Details:
Place of Origin: China
Brand Name: Testeck
Certification: CE,ISO
Model Number: TY-C
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Agree
Packaging Details: Customized packing
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 5000 pieces each month
Contact Now
Detailed Product Description
Product Name: Surface Temperature Measurement Type: Pt100(customized)
Accuracy Class: 2B、B、A、1/3BLevel Optional Ambient Temperature In Application: -50 - 200℃ (can Be Customized According To Actual Temperature Resistance)
Material Of Probe: SUS304, SUS316, SUS321 (customer Specified) Probe Size: Contact Customer Service
High Light:

M6 Surface Mount Temperature Sensor

,

J Type PT100 Temperature Sensor

,

PT100 Temperature Sensor k Type

M6 Screw K J Type Surface Mount Temperature Sensor PT100 For Industrial Temp



M6 Screw K J PT100 Type 1M 2M 3M 5M Wire Cable Thermocouple Temperature Sensor For Industrial Temp



The end-surface thermal resistor is composed of temperature measuring element, outer protective tube, compression spring, process connection device, and shielding extension. It is mainly used for bearing temperature measurement of steam turbine thrust bushes, water pipes of double water-cooled generators, and other mechanical equipment.



Ⅰ. End-face Thermal Resistor

The industrial end-face thermal resistor is mainly composed of temperature measuring element, external protection tube, compression spring, process connection device, shield extension, and is equipped with various installation and fixing devices.

Temperature sensing element: imported Pt100 temperature sensing element of thin film platinum resistor.

2 Protective tube: According to the type of thermal resistor, the condition of the measured medium and the temperature to be measured, the tubes made of different materials are selected. The tubes of thermal resistor are generally made of carbon steel, various grades of stainless steel, alloy steel and other materials.

3 Installation and fixing device: The installation and fixing device is for users to install and fix thermal resistor. It is divided into various forms, such as compressed plate, flexible thread, etc.

For more non-standard customized products, please consult Shenzhen Testeck Science and Technology Co., Ltd.



Ⅱ. Product Parameters

Specifications Parameters
TY-C End-face thermal resistor
Type Pt100, Pt1000
Accuracy class Class A, B
Ambient temperature in application -50~200℃
Wire system Two-wire, three-wire, and four-wire
Structure of sensor Single/Double
Material of probe SUS304, SUS316, SUS321 (customer specified)
Process connection Compressed plate, flexible thread, etc. (customer specified)



Ⅲ. Application of Company Products

It is widely used in industrial sectors and scientific and technological fields, including petroleum, chemical, machinery, metallurgy, electric power, textile, food, etc.



Ⅳ. Product Structure

M6 Screw K J Type Surface Mount Temperature Sensor PT100 For Industrial Temp 0

Ⅴ. delivery, shipment and service of temperature sensors

The temperature sensor is packed in cartons. If you need, we can also make it for you.



Ⅵ. FAQ

1, are your manufacturer?

We are manufacturer, our factory localed in Shenzhen China.

2, what product you manufacturer have?

Our factory produce temperature sensor for power station,

Stators and cable for industry.

3, how many production lines do you have?

We have 10 production lines in Shenzhen factory.

4, how do you ensure product quality?

We already built a mechanical,electrical,fire and flame retardant laboratory, professional testing engineers.

5, can you send samples?

Yes, we will supply sample before your make the order.
